Specifications
Portable Power Generators
Compact and light design;
Low fuel consumption;
Overload Protection;
Easy maintenance.
Diesel Generators suitable for:
For business activities: Shops, restaurants, workshops, hotels, offices, farms
For social activities: Education, training and culture school or institution, medical centre, clinique, organization and government department, religion centre, entertainment and sport centre
For residential: Villa area, residence community, activity outdoors
1. Powered by heavy duty industrial diesel engine, Cummins, Perkins, Doosan or China brand diesel engine can be chosen.
2. Radiator 40 degrees max, fans are driven by belt, with safety guard.
3.12/24DC start motor and storage battery.
4. Brushless, self-excited, IP22/23, insulation H alternator.
5. Absorber to reduce vibration.
6. Dry type air filter, fuel filter, oil filter.
7. Main line circuit breaker.
8. Control system: Key start control panel as standard, digital auto start or ATS system is optional.
9.8 hours operation base fuel tank.
10. High efficient muffler to reduce noise.
11. Ripple flex exhaust pipe, exhaust siphon and flange etc.

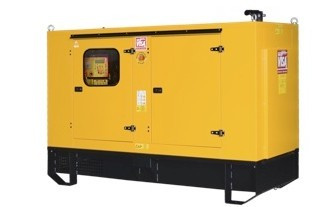

12. Genset type: Open type or soundproof/silent type, or trailer type.
13. Maintenance and operation manual for generator, quality certificate, etc.
14. Rigorous testing must be done before delivery, including 50% load, 75% load, 100% load, 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
* Max. Output power is 5.0kVA
* Low noise design, 82 dB(A) at 4mts
*Lightweight and compact,
* A full tank of fuel can last for 6.5 constant hours
* "E" indicate electric starter (Optional)
* Optional: Battery, Wheels, Handles and supporting leg
* Easier and more convenient electric starter
* New AVR(Automatic Voltage Regulator)
Stablizes the output power
* Low oil level alarming system will automatically
Stop the generator when lube oil is less than the set value
* A traditional open frame generator with a rugged and durable frame
Mobile type diesel generator can be with two wheels and four wheels. Which is as customers request.
Many kinds of structure and functions, hand push type, three wheels, four wheels, truck-mounted type, silent mobile type, mobile container type, mobile machinery type. The system adopt the abroad mobile type structure, self-designed and produced with high efficiency for operation and safety. The colocation can be adopt as follows:
Tow: Adopt mobile couple, 360° Dial, high flexibility to ensure the safety of driving.
Brake: Has the air cushion and hand-operated brake system to ensure the safety of driving.
Support: Has four mechnical or hydraulic pressure support system to ensure the power station 's stability.
Door and windows: Has the ventilator window in the front and back, and two side door for the operator.
Lighting: Explosive-proof light in the wagon. Operation platform on the right side, together with the operate desk light, convenient to operate.
Soundproof: Two decoratation for the station's door and windows, while has the acoustic panel, the exhause pipe is packed by heat retaining cotton, noise can be lower than 75dB(A) at seven meters.
Dimension: The size of the power station can be made according to the speficitions, the operator can walk freely on the side. It is easy to maintance and operate.
Apperance: Adopt high polyurethane paint, the colour can be made according to the requirement, exhaut pipe adopt down side to make sure the beauty
The advantage you choose us:
1. Manufacturing expenrience
2. Professional engineers and test equipments to ensure the quality of each machine
3. OEM service is available
5. High quality control system
6: Convenient use and moving
7: Operation Reliable,
8: Low noise and small vibration
9: After-sales service
| MODEL | WD D6500X/E |
| Genrator | Rated frequency | Hz | 50 | 60 |
| Rated output | KVA | 4.5 | 5.0 |
| Max. output | kVA | 5.0 | 5.5 |
| Rated Voltage | V | 115/230 | 120/240 |
| Rated current | A | 39.2/19.6 | 41.7/20.8 |
| Rated rotation speed | rpm | 3000 | 3600 |
| Phase NO. | | Single phase, three loops |
| Power factor | | 1.0 |
| Insulation Grade | | B |
| Pole number | | 2 |
| Excitation mode | | Self-excitation and constant voltage(AVR) |
| Panel Type | | General Panel |
| Output | Voltagge | V | 115/230 | 120/240 |
| Receptacle | | Two receptacles |
| Connection pole | | Without |
| DC12V output | | Connection pole output |
| Overall dimension: L×W×H | mm | 720×492×650 |
| Dry weight | Kg | X:95 E:100 |
| Working assorting weight | Kg | X:110 E:115 |
| Noise level(7m) | dB(A) | 77 |
| Structure type | | Open frame |
| Engine | Engine Model | | WD 186FA |
| Engine Type | | vertical, four-stroke |
| Cylinder NO.-bore×stroke | mm | 1-86×72 |
| Displacement | ml | 418 |
| Rated power | KW | 5.7/3000 | 6.3/3600 |
| Compression ratio | | 19:1 |
| Rated rotation speed | r/min | 3000 | 3600 |
| Combustion system | | Direct injection |
| Cooling system | | Air cooled |
| Lubrication system | | Mixed type(pressure+splash) |
| Starting system | | X:Recoil starter E:Electric starter |
| Fuel type | | 0#(summer)-10#(winter)-35#(chillness)diesel |
| Lube oil brand | | SAE10W30(above CD grade) |
| Capacity of cooling water | L | Without |
| Lube capacity | L | 1.65 |
| Starting motor capacity | V-kW | 12V 0.8kW |
| Charging generator capacity | V-A | 12V 3A |
| Battery capacity | V-Ah | 12V 36AH |
| Fuel consumption | g/kW.h | 275.1 | 281.5 |
| Fuel tank capacity | L | 15 |
| Continous running time | h | 8 |
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
