Specifications
5kw diesel generator
1top quality &competitive factory price
2air-cooled,single phase
3any colour is available
5kw diesel generator set
1top quality & factory price.
2air-cooled,single phase generator set

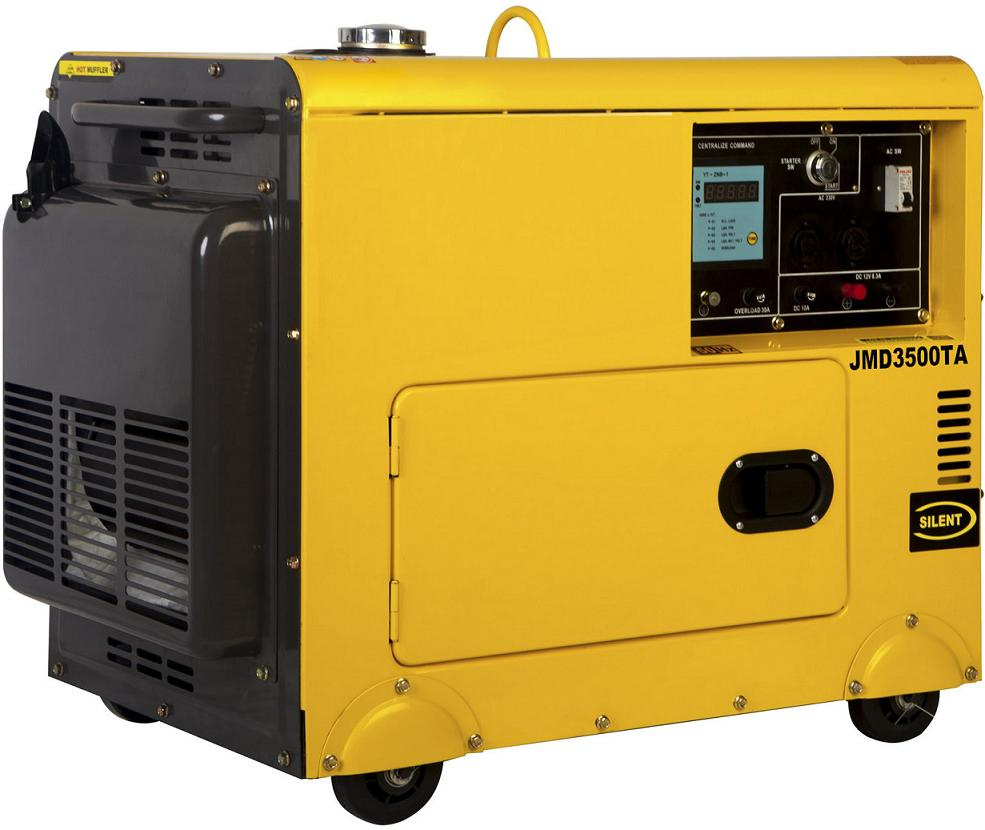

3 silent type,3kw silent diesel generator set
4.1 year warranty
5,2kw,3kw,5kw small air-cooled diesel generator are availble.
4.steady power in working time
5.best after service
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
5. ISO9001 and CE certification
6.We enjoy Gold supplier in Alibaba.com at least two years
diesel generator Specification
Model | WD |
| Generating | Frequency | 50 HZ | 60 HZ |
| Max. AC output | 3.3KVA | 3.2KVA |
| Rated AC output | 3KVA | 3.5KVA |
| Phase | Single phase |
| Insulation | F |
| Rated AC voltage | 220 |
| Engine | Model | XD178FA |
| Engine Type | Air Cooled,4 Stroke,Single Cylinder |
| Max power output | 4HP |
| Displacement | 306cc |
| Compressin ratio | 2.0: 1 |
| Engine speed | 3000rpm | 3600rpm |
| Starting system | Recoil /Electric |
| Fuel tank capacity | 12L |
| Noise level(at 7m) | 74db(open type) |
| Pack | N.W/G.W | 70/77 |
| Dimension(mm) | 697X475X552 |
Silent diesel generators
Cummins Engine + Faraday Alternator
WD C75 Diesel Gen-set
Prime Power
50Hz/1500rpm/400V
Prime power: Continuous running at variable load for unlimited periods with 10% overload available for 1hour in any 12 hours. In accordance with GB/T2820-2009.
Standby power: Continuous running at variable load for duration of an emergency.
No overload is permitted on these ratings.
Faraday alternator Feature:
Compact, low noise, high reliability.
Class H insulation, IP23 protection.
Small voltage harmonic distortion of non-linear load.
2/3 pitch winding effectively removes the third harmonic voltage.
Damper winding excitation.
Comap control module:
Microprocessor based Intelligent controller.
Real-time display of engine and alternator operating parameters.
Monitor engine and alternator running status.
Gen-set alarming and performance message.
Manual and Automatic mode.
LCD display, LED indicator.
Engine Features:
CUMMINS engine.
Compact design, easy start & maintenance.
Low fuel consumption, low vibration & low noise.
Strong cold start, adaptable to different working conditions.
Low emissions-compliant with Europe stageII.
Global service network for excellent after-market service.
| Gen-set Data | Engine Data |
| Brand | | WANDI | Brand | | CUMMINS |
| Model | | WD C75 | Model | | 6BT5.9-G2 |
| Prime power | KVA/KW | 94/75 | Rated power(net) | KVA | 113 |
| Standby power | KVA/KW | 104/83 | Rated power(net) | KW | 90 |
| Frequency | Hz | 50 | No. of cylinder | | 6 |
| Rated voltage | V | 400/230 | Cycle type | | 4 |
| Rated current | A | 135 | Cylinder arrangement | | Vertical in line |
| Power factor | COS Φ | 0.8(lag) | Aspiration type | | Turbocharged |
| Fuel tank capacity | L | 320 | Combustion system | | water cooled |
| Sound pressure level LP | dB(A) 1m | 85 | Bore | mm | 102 |
| | | | Stroke | mm | 120 |
| Alternator Data | | | Displacement | L | 5.9 |
| Brand | | FARADAY | Compression ratio | | 17.5:1 |
| Model | | FD3A | Engine oil capacity | L | 16.4 |
| Connecting type | | 3 phase and 4 wires | Max back pressure | kpa | 10 |
| Excitation type | | brushless, self excited | Total coolant capacity | L | 28 |
| Steady voltage regulation | | ≤1% | Fuel consumption | L/H | 18 |
| Transient voltage regulation | | ≤±25% | Lubrication consumption | L/H | 0.099 |
| Frequency recovery time | | ≤5s | Cooling max water temperature | ºC | 104 |
| Protection | | IP23 | Governor type | | Electronic |
| Insulation | | Class H | Start mode | | Electronic |
| Overload capacity | | ≤10% | Emission standards | | Europe stage II |
| | | | | | |
| Standard Configuration: | | Optional Configuration: | |
| System | Description | | System | Description | |
| Engine | Cummins | | Cooling sys | Radiator(50ºC) | |
| Aspiration sys | Air filter | | | Jacket water heater | |
| | Air restriction indicator | | | Anti-condensation heater | |
| Cooling sys | Radiator(40ºC) | | Exhaust sys | Residential silencer | |
| | Fan & belt | | Alternator | Stamford alternator | |
| Exhaust sys | Industrial silencer | | | Engga alternator | |
| Fuel sys | Fuel-water separator filter | | | Marathon alternator | |
| | Fuel filter | | Control module | DSE series | |
| | Fuel hose | | | HGM series | |
| Lubrication sys | Oil filter | | Circuit breaker | ABB | |
| Alternator | Faraday | | ATS | Hanguang(WHK) | |
| Control module | Comap MRS10 | | | Aisikai (STK) | |
| Circuit breaker | Suzhou | | Other | battery charger | |
| Battery | maintenance-free | | | laminated wood packaging | |
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
