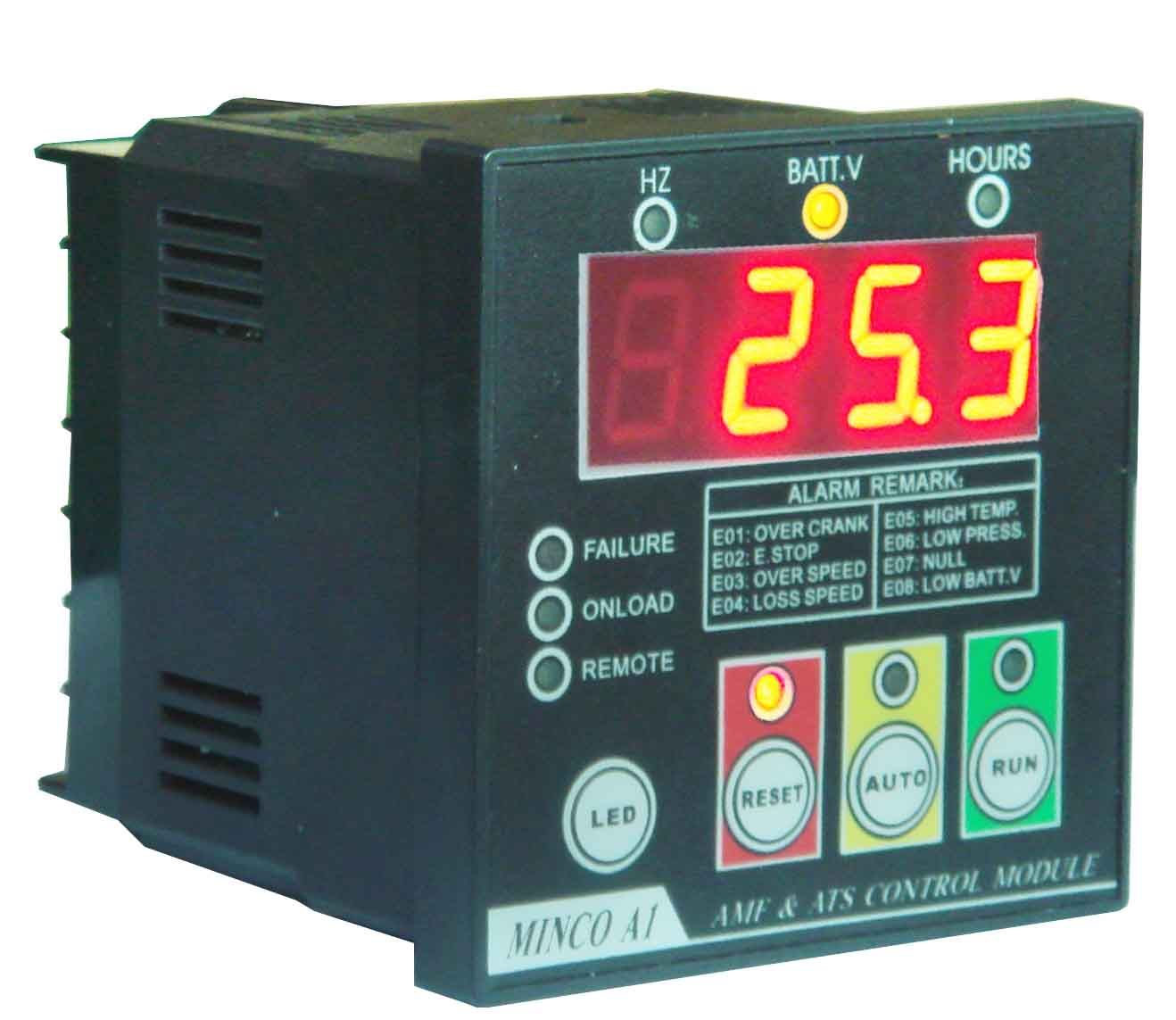

Minco A1 has ATS control function, auto start and auto protection function, LED display, Minco A1 obtains UL certificate.
The Genset controller Minco A1 utilizes high performance microprocessor and Industrial grade devices. It has the property of compact structure, clearly Display and easy operation. The controller can control the generator to start or Stop, detect and measure the work state of the generator, and achieve the Auto-protection function. ATS control function. MINCO A1 is a economical auto Start and auto protection control module.
I. Characters
1. MINCOA1 passed the UL certificate.
2. LED displayed the frequency, battery voltage, running time, fault code.
3. Auto start, Auto protection, ATS control.
4. Key press setting menu for all working parameters, 50/60Hz currency.
5. Can be delayed start and delayed stop.
II. Performance
1. LED display:
State indicate: Start, Auto, Power supply, Running indicate.
Fault indicate: Emergency stop, over speed, low battery voltage, high.
Water temp, low oil pressure, low fuel level, over crank, speed signal loss.
2. Switch input( Photoelectric insulate, valid when connect with GND)
Emergency stop, remote start, remote reset, high water temp, low oil pressure, low fuel level.
3. Relay output(relay insulate): Start, Fuel (Fuel supply/stop), fault, Pre-Fuel/pre-heated, excitation, Idle.
Appearance Features
1. Dimension Front panel (L× WxD 96× 96x9 mm
Back panelL× WxD84× 84x50 mm
Mounting hole (L× W85× 85mm
2. Power Supply DC8-36 V
3. Working environment -25~70oC,
Relative humidity <95%
4. N. W.: 200g
Guilin Glminco Intellignet cotnrol S&T Co. Ltd is a High technology manufactory, which specializing in intelligent-control equipment and long-distance centralized monitoring network system. Devoting to develop embedded system equipment and network monitoring products, providing high quality and high performance electronic products and services, as well as designing and executing projects of integrated computer systems, and mechanical-electrical integration.
Minco has an experienced technical team, advanced equipment, complete market, complete proprietary intellectual property rights and quality guarantee system. We have successful passed certification: ISO9001: 2008, CE, UL.
With excellent quality and good service, we enjoy a great reputation in the world market. The products amass majority domestic market and are exported to more than 30 countries, such as USA, Mexico, Brazil, Uruguay, Argentina, Chile, Venezuela, Honduras, Boilivia, Dominica, Costa Rica, Philippine, Singapore, Thailand, Malaysia, Banglaesh, United Kingdom, France, Russia, Mongolia, Croatia, Sri Lanka, Iran, Syrian, Iraq. Pakistan, Israel, South Africa, Uganda, Cameroon, Senegal, Nigeria, Kenya etc.
