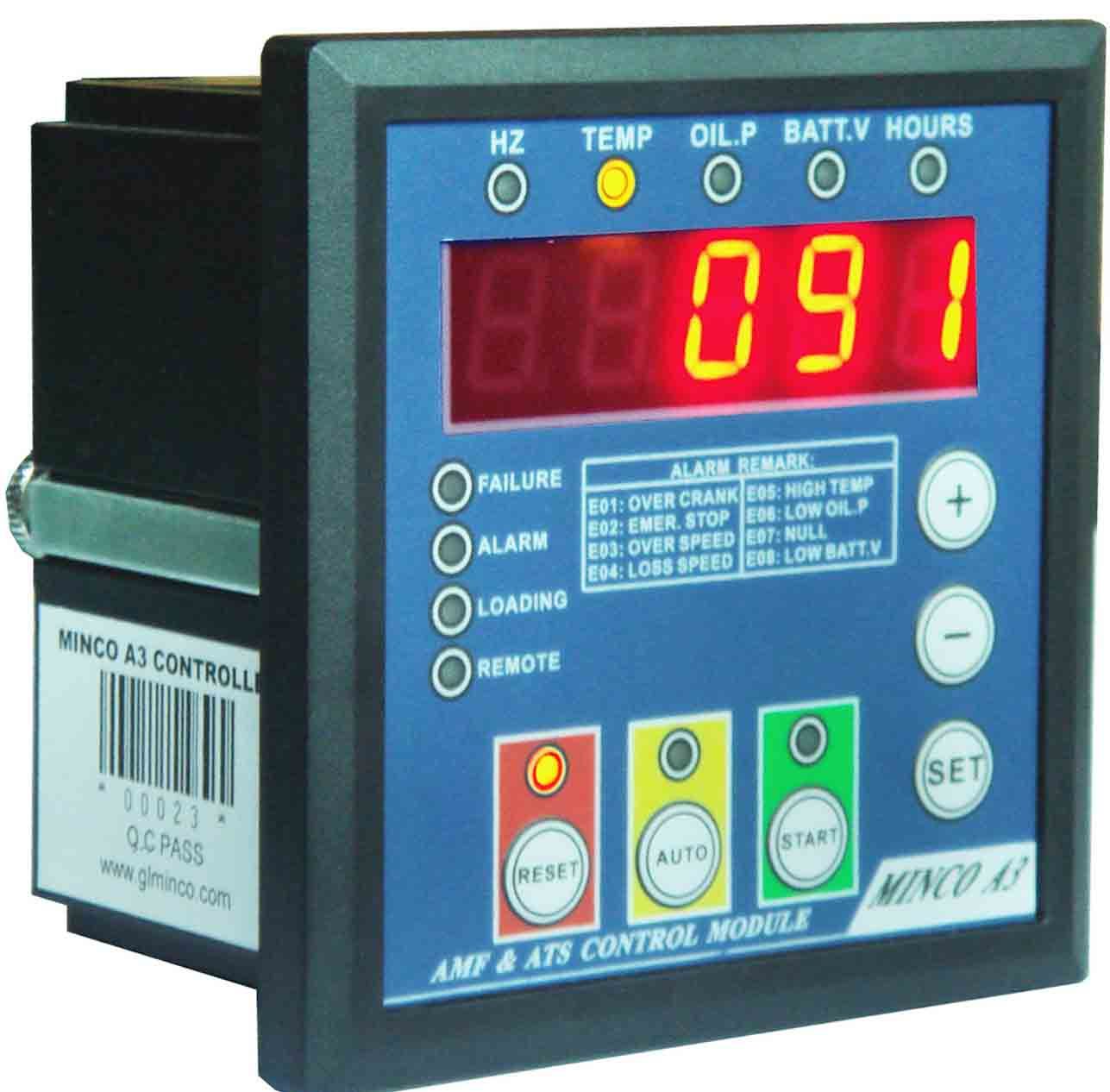

Generator Controller Minco A3 has ATS control function, when mains power failure, AMF Generator, display status of generator by LED menu.
The Functional Characteristics of Generator controller MincoA3.
1. Provides remote start port, time setting function of delayed start and Stop; Can control genset to start, stop and load automatically.
2. All the relay output contact capacity is over 10A.
3. Convenient ATS control function, with mains supply output And genset emergency supply output.
4. Two connecting ways of Coolant temperature and oil pressure: Analog measurement and alarm switch
5. Auto-record the running time of genset.
6. Protection functions: Low oil pressure, high coolant, over speed, Emergency stop and over crank, etc.
II. Control parameters
Analog inputs: Oil pressure sensor kind, Coolant temp. Sensor kind Switch inputs: Remote start, emergency stop, high coolant temp, low oil Pressure, alarm switch
Switch inputs: Genset fault, fuel supply/stop, start, mains supply switch On, genset switch on, idle normal close/normal open/common System parameters settings: Coolant temperature upper limit, oil pressure Lower limit battery voltage lower limit, frequency upper limit, frequency Lower limit, trip frequency, coolant temperature adjustment, oil pressure Adjustment, battery voltage adjustment, no supply to load delay, warm-up delay, Energize to stop (ETS) fuel delay, remote start delay, retransfer delay, Cooling stop delay, idle speed start delay, idle speed stop delay, control Parameter 1, control parameter 2, control parameter 3
III. External Features
1. Dimension: Front panel (L× WxD)96× 96x9 mm
Back panel(L× WxD)84× 84x50 mm
Mounting hole: (L× W)85× 85mm
2. Power Supply: DC8-40 V, < 300 mA
3. Working environment: -25~70° C,
4. Relative humidity < 95%
5. N. W.: 380g
