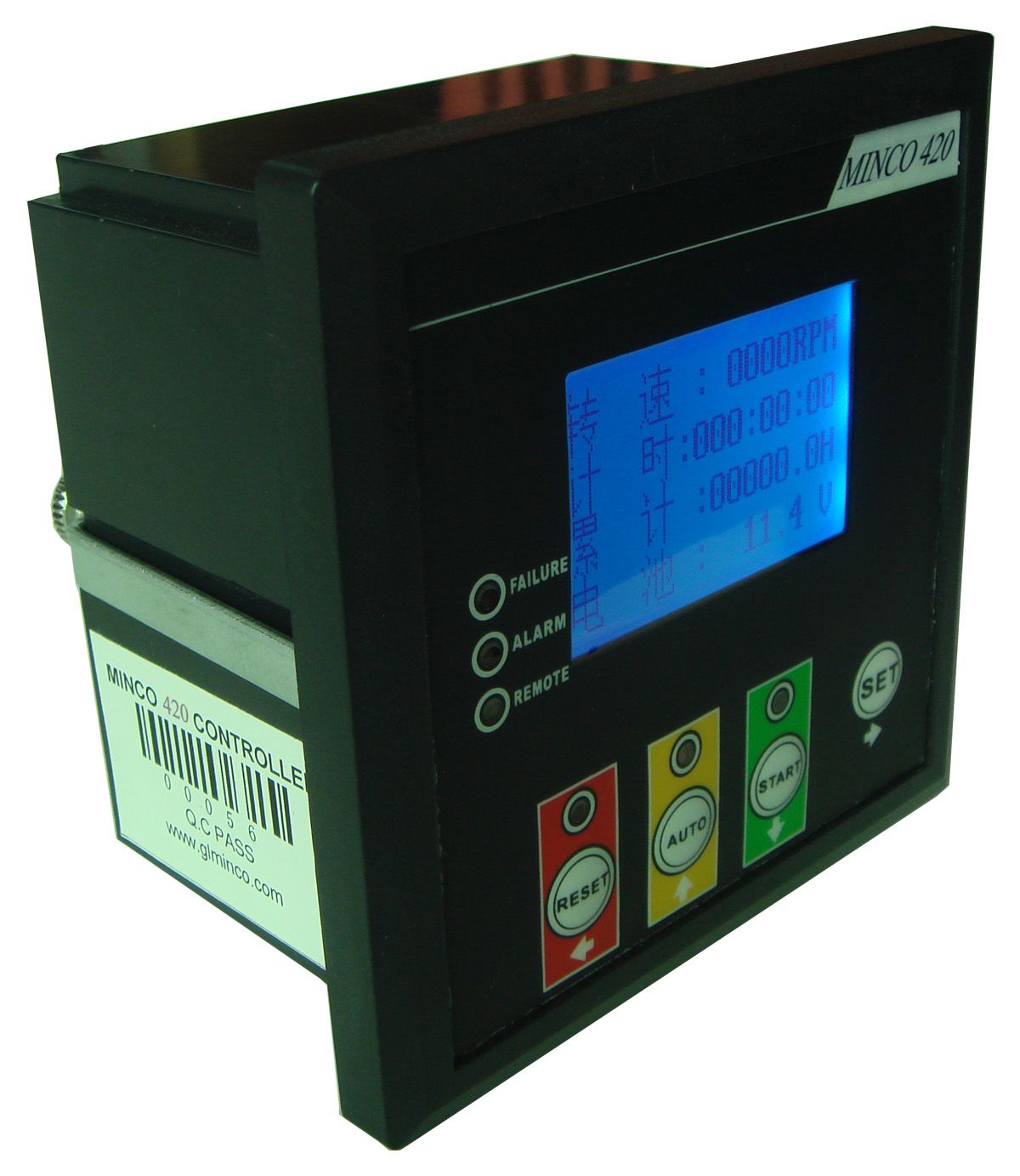

Minco 420 Pump Engine Controller
I. Function and Charateristics
1. Display with lift head measurement, oil pressure, water temperature, oil temperature and etc.
2. Small and exquisite shape, wide-screen LCD display with 128× 64 lattice and black-light
3. Auto start, auto protection, and auto loading control
4. Chinese and English double language menu, mutual operation, can be set and operated without computer
5. User-defined to the input and output port, timing start or stop function
6. Perfect auto protection, warning details and working statement character display directly, fault record more than 50 items
7. All relay contact capability of strat and fuel is above 10A/250VAC/30VDC, the other is 5A
8. Start time can be annual, monthly, weekly, daily.
9. RS232 or RS485 (as option) communication, attached four remote controlmonitor software.
II. Control parameter list:
1. Switch inputs (6 items)
Remote start emergency stop user-defined input 1-4 Optional monitor, low oil pressure high coolant temperature acceleration limit deceleration limit, high oil temperature, low fuel level, alarm non-stop; High fuel leve; L fload charge fail alarm; Alarm; Alarm non-stop running state alarm stop; Allowable oil pressure and distant reset.
2. Rely output (6 items)
Fuel; Start; User-defined 1-4 public failure; Auxiliary stop; Genset supply; Automation; Idle closed; Idle disconnect; Pre-fuel; Warm up; Acceleration; Deceleration; Over speed; High speed; Low battery; Pumping; Alarm.
3. Delay setting (22 items)
Delay of cool down; Delay of start; Delay of genset start; Delay of idle start; Delay of crank interval; Delay of idle; Stop crank time; Acceleration delay; Bypass time; Delay of auxiliary input 1; Delay of energize to stop(ETS); Delay of auxiliary input 2; Delay of auxiliary input 3; Delay of auxiliary input 4; Delay of lift failure; Delay of warm up; Delay of transform; Delay of low battery; Delay of over speed, delay of stalling, retention; Deceleration delay.
4. System parameter setting (19 items)
Trip speed; Number of gear teeth; Lift calibration; Password setting; Address; Fuel setting; Output 1 setting; Output 2 setting; Output 3 setting; Output 4 setting; Input 1 setting; Input 2 setting; Input 3 setting; Input 4 setting; Start method; Setting display mode; Language choose; Back light choose; Start hidden.
III. External Features
1. Size of outsidefront panel(L× WxD) 96x96x9mm
Back shell(LxWxD) 84x84x50 mm
Hole size of installation (L× W)85x85mm
2. Power supplyDC8-40 V, < 300 mA
3. Work environment-25~75, relative humidity< 95%
N. W.: 0.4KG
