Professional Generator OEM Factory in Guangzhou
Stock available
Cummins, perkins, Yangdong
SGS soncap
Product Details
Basic Info.
Model No.:CDY15kVA
Cooling Method:Water Cooling
Stroke:Four Stroke
Installation Method:Fixed
Type:Basic Diesel Generator
Output Type:AC Three Phase
Diesel Generator:Power Generation
Engine:China Brand Engine Good Quality
Alternator:Stamford;Marathon;
Control System:Automatic LED Screen Auto Start, Auto Transfer
Export Markets:Global
Additional Info.
Trademark:JIUAN
Packing:By Iron Frame
Standard:CDY15kVA
Origin:China
HS Code:85021100
Production Capacity:100PCS/Month
Product Description
Power Generation
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine:Cummins, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator:Stamford, Marathon, Leroy Somer etc.
Rated output:5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor:0.8(lag)
Super Silent type Noise level at 7m ≤65DB
Excitation Mode:(Brushless) Self-excitation and constant voltage (AVR)
Starting system:Electric start 12V/24V
Protection System:High water temperature protection, Engine oil alarm, Over load Protection Overfrequency protection, Emergency stop
Control System:Digital Control Panel;Meter Panel

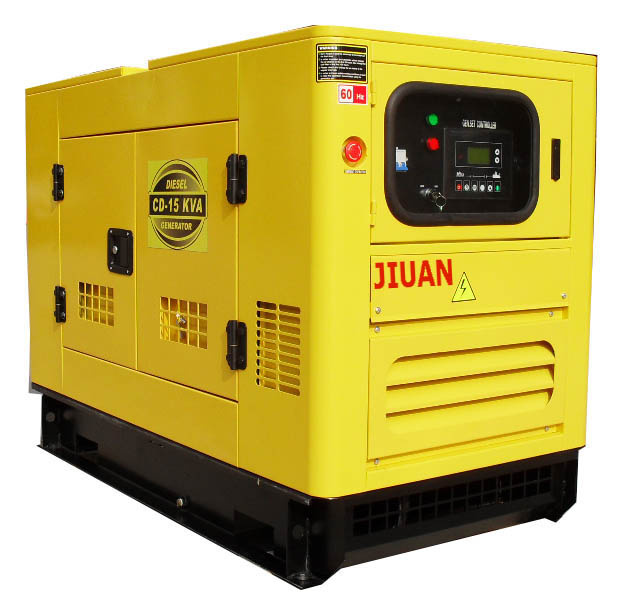

Advantage of JIUAN Cummins Generator 15kVA:
Maximum 15.0 kVA 380 Volts, @50Hz, 1500rpm
AVR delivers non fluctuating power
Panel type digital control panel
12 Volt / 24 Volt electric starter ensures easy starting
Low oil pressure shut down system
Low fuel cut out protection
Low water cut out engine protection
Enclosed structure ensures quieter operation
Alternator (Dynamo) excitation mode brushless self excitation
Three-phase output meets differing requirements
Four Cylinder, four stroke, water cooled diesel engine
8 hours running @ full load on a single tank of fuel
Dual access doors for easy maintenance
Optional automatic or manual transfer switches available
ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
Noise Level (dBA @ 7m)
All ratings are at sea level
After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number:0086 18520604611
Contact Sales Manager
24 hours after-sales contact number:0086 15817087202
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1.Cummins (USA ) 20kVA - 2000kVA
2.Deutz (Germany) 20kVA - 150kVA
3.Perkins (UK) 8kVA - 2000kVA
4.ISUZU (Japanese) 20kVA - 40kVA
5.Lovol (China) 20kVA - 150kVA
6.Yangdong (China) 8kVA - 40kVA
7.Weichai (China) 8kVA - 150kVA
8.Shanghai Engine
9.Yuchai Engine
10.KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1.Silent type (75- 80 dB(A) at 7 meters)
2.Super Silent type (65-70 dB(A) at 7 meters )
3.Open type
4.Trailer type (mobile)
5.Container Type
6.Parallel System
10kVA, 50kVA, 60kVA, 100kVA, 150kVA, 200kVA, 250kVA, 300kVA available
|
10kva Silent generator |
Generator
Specifications |
Generator Model |
CDY-15KVA |
|
Generator Prime Power |
15KVA |
|
Generator Engine Model |
YD485 |
|
Generator Alternator |
Stamford;Marathon; |
|
Canopy for Choice |
silent |
|
Controller |
Smartgen |
|
Dimensions (L*W*H) |
1680*960*1060 |
|
20FT/40HQFT Container |
2PCS/4PCS |
|
Generator Warranty |
1800 hours or 1 year subject to the earlier one. |
|
Generator MOQ |
1PCS |
|
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
|
Payment |
T/T or Cash |
|
Please give detail needs in your inquiry, so that we can make power solutions for you. |
Diesel Generating Set –Model: CDY-12KW/15KVA
|
Generator Set Model |
CDY-12KW/15kva |
|
Generator Set Power |
12KW/15kva |
|
Generator Powered by Yangdong Engine |
|
Diesel Engine Model |
YD485 |
|
Engine Characters |
Water-cooled, in line, 4-cylinder, direct injection, 1500rpm |
|
Bore x Stroke (mm) |
85x95 |
|
Rated Output |
17kw/21kva |
|
Fuel Consumption (g/kw.hr) |
262 |
|
Lube Consumption (g/kw.hr) |
2.72 |
|
Compression Ratio |
18 |
|
Starting |
Electric (12V) |
|
ALTERNATOR MODEL |
Newage Stamford PI044G or Leadtech LTG164D |
|
Rated Power |
12KW/15kva brushless with AVR |
|
Voltage (V) |
220/380V 230/400V 240/415V 127/220V |
|
Current (A) |
21 |
|
FreYuency (Hz) |
50 |
|
Power Factor |
0.8 |
|
Brush/Brushless |
Brushless |
|
Dimensions (LxWxH) mm |
S: 1680x960x1060 |
|
Gross Weight (KGS) |
600 |
|
20FT |
12 PCS |
|
Controller |
Smartgen 6110 or Deepsea 7320 |
|
Standard |
Muffler |
|
|
Battery 80A*1 |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
