Generator Avr
| Price: |
Negotiable |
| Trade Terms: |
as Your Required |
| Min Order: |
1 |

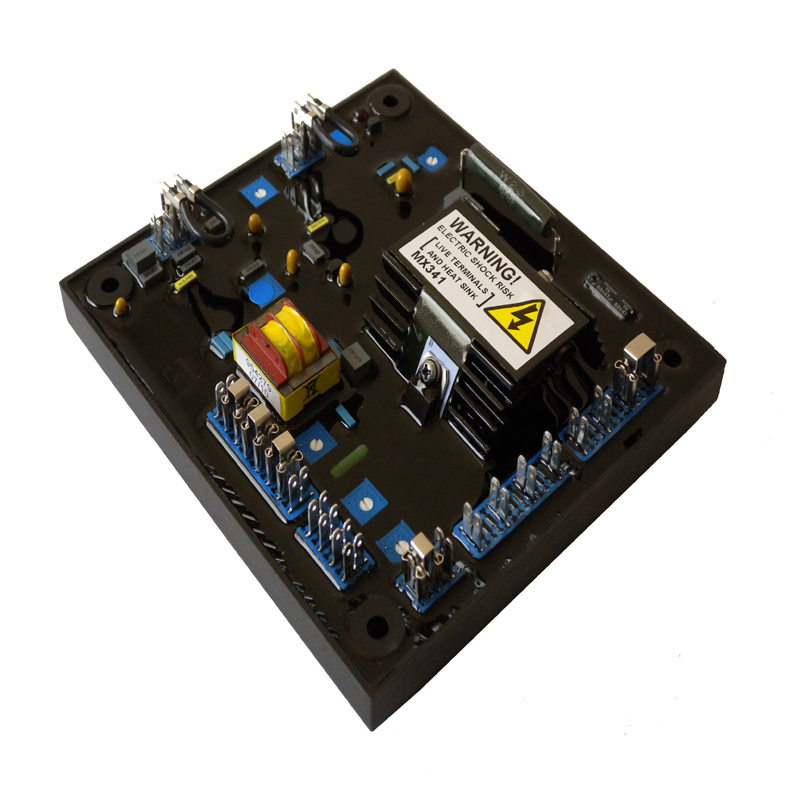

This generator AVR is equal to stanford
TECHNICAL SPECIFICATIONS
SENSING INPUT
Voltage 170-250V (AC\Maximum) Frequency 50-60 nominal
Phase 2
Wire 2
POWER INPUT (PMG)
Voltage 140-220Vac Current 3A/Phase Frequency 100-120Hz
Phase 3
Wire 3
OUTPUT
Voltage Max. 120V DC
Current Continuous 4A
Transient 6A for 10secs. Field Resistance Min. 15 ohms
REGULATION
± 1.0% (with 4% engine governing)
THERMAL DRIFT
1% for 40 degree change in AVR ambient
|
SUMMARYOFAVR CONTROLS |
|
CONTROL |
|
DIRECTION |
|
FUNCTION |
|
VOLTS |
TOADJUSTGENERATOR OUTPUTVOLTAGE |
CLOCKWISE INCREASES OUTPUTVOLTAGE |
|
STABILITY |
TO PREVENTVOLTAGE HUNTING |
CLOCKWISE INCREASESTHE DAMPING EFFECT |
|
UFRO |
TO SETTHE UFRO KNEE POINT |
CLOCKWISE REDUCESTHE KNEE POINTFREQUENCY |
|
DROOP |
TO SETTHE GENERATOR DROOPTO 5%ATFULLLOAD0PF |
CLOCKWISE INCREASESTHE DROOP |
|
TRIM |
TO MATCHAVR INPUTTOACCESSORYOUTPUT |
ALLOWSTHEACCESSORYMORE CONTROLOVERAVR |
|
EXCTRIP |
TO SETOVER EXCITATIONTRIPCUTOFF LEVEL |
CLOCKWISE INCREASESTHE CUTOFF LEVEL |
|
DIP |
TO SETU/f |
CLOCKWISE INCREASESTHE VALUE OF U/f |
| Prod Model: |
AVR-MX341 |
