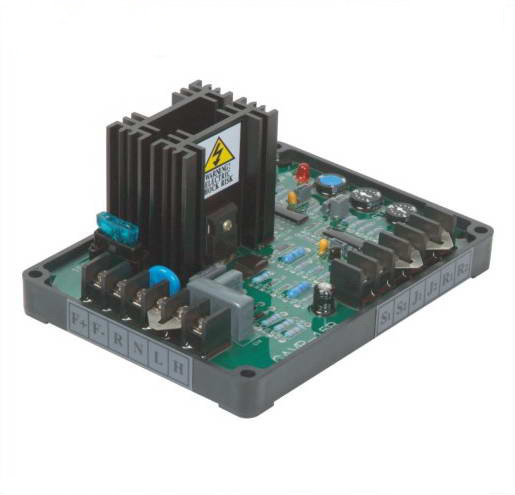

This generator AVR
Universal 15 Amp 1/2 Wave Self Excited
DIP-Switch Programmalbe Automatic
Voltage Regulator
Features
< ± 0.5% Regulation
220/400 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
EMI Suppression
Built-in Hihg Capacity 15Amp Fuse
Specifications
SensingInput Voltage220/400VAC, 1phase2wire
Power Input Voltage180~240VAC, 1phase2wire
Output Voltage Max. 90VDC@240VACinput
Current Continuous 6A
Intermittent 12A for 10SEE.
Resistance Min. 10Ω Max. 100Ω
VoltageBuild-up Residualvolts at AVR teminal>5VAC
External Volts Adjustment ± 7%with 1KΩ 1watt trimmer
Sotf Start Ramp Time 3sec.
Unit Power Dissipation Max. 8Watt
EMI Suppression Internal Electromagnetic Interference Filtering
Thermal. Drift 0.05%per chage in AVR ambient
Under Frequency Protection 60Hz system presets knee point at 57Hz
(Factory Settings) 50Hz system presets knee point at 47Hz
Volts Regulation < ± 0.5%(with 4%engine governing)
Mechanical Specifications
AVR Controls
VolTS Voltage A djustment
STAB Stability Adjustment
U/F To Set the U/F*Knee Point
*U/F: Under Frequency Protection
Physical Specifications
Dimensions 157.0(L)117.0(W)70.0(H)mm
