This generator AVR
General description

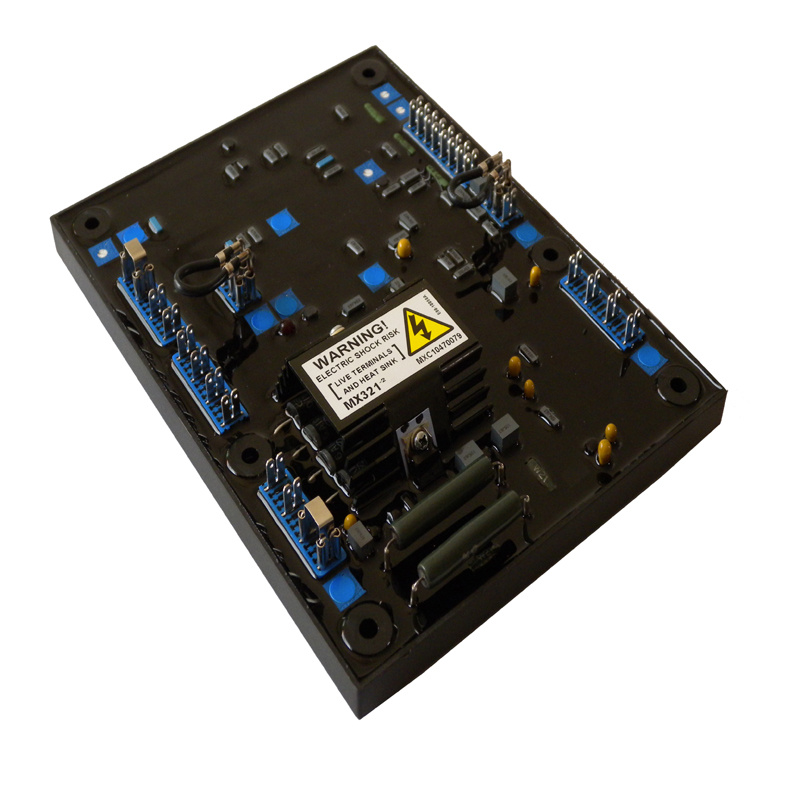

MX321 is a three phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator. Excitation power is derived from a three-phase permanent magnet generator (PMG), to isolate the AVR control circuits from the effects of non- linear loads and to reduce radio frequency interference on the generator terminals. Sustained generator short circuit current is another feature of the PMG system.
The AVR senses the voltage in the main generator winding and controls the excitation to maintain the generator output voltage within the specified limits, compensating for load, speed, temperature and power factor of the generator. Three phase RMS sensing is employed for superior voltage regulation.
Adjustable Soft start circuitry is included to provide a smooth controlled build up of generator output voltage.
A frequency measuring circuit continually monitors the shaft speed of the generator and provides under-speed protection of the excitation system by reducing the generator output voltage proportionally with speed below a pre-settable threshold. A further enhancement of this feature is an adjustable volts per Hertz slope and voltage recovery time, to improve the response of turbo charged engines.
Current limiting may be included to allow control over the amount of sustained short circuit current.
Maximum excitation is limited to a safe period by internal shutdown of the AVR output device. This condition remains latched until the generator has stopped.
The AVR includes an over-voltage protection feature with internal shutdown of the AVR output device, plus the ability to trip an optional excitation circuit breaker if required.
Provision is made for the connection of a remote voltage trimmer, allowing the user fine control of the generator's output.
An analogue input is provided allowing connection to a Newage Power Factor controller or other external device with compatible output.
The AVR has the facility for droop CT connection, to allow parallel running with other similarly equipped generators.
SENSING INPUT
Voltage 190-264V AC max, 2 or 3 phase
Frequency 50-60 Hz nominal
POWER INPUT (PMG)
Voltage 170-220V AC max, 3 phase, 3 wire
Current 3A/phase
Frequency 100-120 Hz nominal
OUTPUT
Voltage max 120V DC
Current continuous 3.7 A (see note 1) Intermittent 6A for 10 secs.
Resistance 15 ohms minimum
REGULATION
+/- 0.5% RMS with 4% engine governing (see note 2)
THERMAL DRIFT
0.02% per deg. C change in AVR ambient (note 3)
SOFT START RAMP TIME
0.4 - 4 seconds
TYPICAL SYSTEM RESPONSE
AVR response 10 ms Filed current to 90% 80 ms Machine Volts to 97% 300 ms
EXTERNAL VOLTAGE ADJUSTMENT
+/-10% with 5 k ohm 1 watt trimmer (see note 4)
UNDER FREQUENCY PROTECTION
Set point 95% Hz (see note 5) Slope 100-300% down to 30 Hz Max. Dwell 20% volts/S recovery
UNIT POWER DISSIPATION
18 watts maximum
NOTES
1. Deratelinearlyfrom3.7A at 50°Cto2.7A at70°C
2. Thestated voltage regulationmaynot be maintainedin the presenceofcertain transmitted radio signals. Anychangein regulationwillfallwithinthelimits in CriteriaB of BS.EN.61000-6-2 :2001.
3. After10minutes.
4. Applies toMod statusE onwards. Generator de-ratemay apply. Checkwithfactory.
5. Factoryset, semi-sealed, jumper selectable.
6. Anydeviceconnected to the analogueinput mustbe fully floating(galvanicallyisolatedfrom ground), with an insulationstrength of500Vac.
7. Noncondensing.
|
