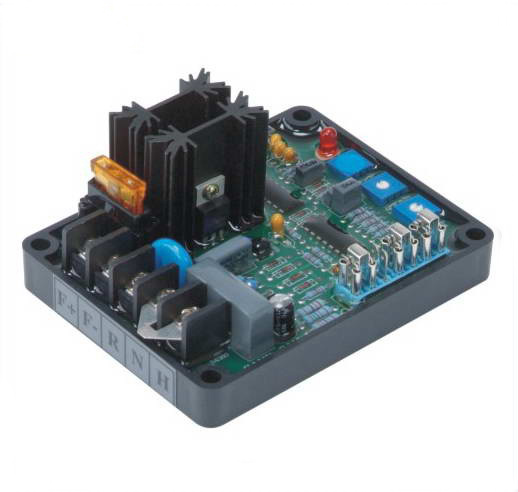

This generator AVR
Universal 8 Amp 1/2 Wave Self Excited DIP-Switch Programmable Automatic Voltage Regulator
Features
L 1% Regulation
L 110/220/400 VAC Programmable Input
L Rugged Compact Design
L With Under Frequency Protection
L Soft Start Voltage Ramping
L EMI Suppression
L Built-in Hihg Capacity 8Amp Fuse
SensingInput Voltage
110/220/400VAC, 1phase2wire
VoltageBuild-up
Residualvolts at AVR teminal>5VAC
Power Input
Output
Voltage Voltage Current
Resistance
100~260VAC, 1phase2wire Max. 90VDC@240VACinput Continuous 3A
Intermittent 5A for 10SEE. Min. 15 Max. 100
External Volts Adjustment
Sotf Start Ramp Time Unit Power Dissipation EMI Suppression Thermal. Drift
Under Frequency Protection
(Factory Settings)
7%with 1K 1watt trimmer
2sec. Max. 8Watt
Internal Electromagnetic Interference Filtering
0.03%per chage in AVR ambient
60Hz system presets knee point at 55Hz
50Hz system presets knee point at 45Hz
SensingInpu t Voltage
110/220/400VAC, 1phase2wire
V oltageBuild-up
ResidualvoltsatAVRteminal> 5VAC
Powe rInput
Output
Voltage Voltage Current
Resistance
100~260VAC, 1phase2wire Max. 90VDC@240VACinput Continuous3A
Intermittent5Afor10SEE. Min. 15 Max. 100
Externa lVolts A djustment
Sot fStartRamp Ti m e UnitPowerDissipation EMISuppression Thermal. Drift
Unde rFrequency Protection
(Factor y Sett ings)
7%with1K 1watttrimmer
2sec. Max. 8Watt
InternalElectromagneticInterferenceFiltering
0.03%per chageinAVRambient
60Hzsystempresetskneepointat55Hz
50Hzsystempresetskneepointat45Hz
