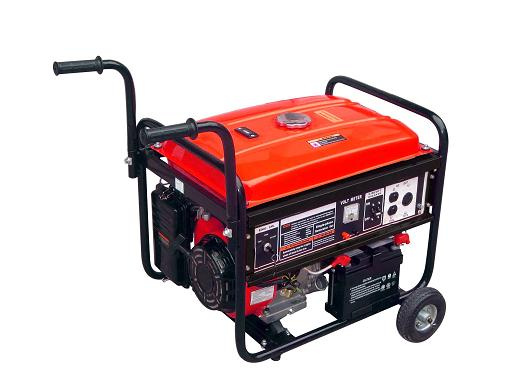

Model Code: EC6500CXE
ALTERNATOR
Frequency: 50Hz 60Hz
Rated Output Power(KVA): 5.0 5.5
AC Rated Voltage (V): 380/220 110/220
AC Rated Current (A): 9.5
Phase: Tri-phase
DC Output (Optional): 12V / 8.3A
Power Factor (cosφ ): 1.0
ENGINE
Engine Model Code: RY380FE
Engine type: Single-cylinder, 4-stroke, OHV
Air-cooled Gasoline Engine
Rated Output Power(kW/HP): 6.0/13
Rated Speed (RPM): 3000
3600
Displacement (CC): 389
Compression Ratio: 8: 1
Starting Method: Electric Starter
Fuel: Automobile Unleaded Gasoline
Fuel tank capacity (L): 25.8
Lubrication Oil: SAE15W40 (above CC grade)
Rotation Direction (View From Wheel): Clockwise
GENERATOR SET
Noise Level [dB(A)/7m]: 70~75
Low Oil Pressure Alarm System: With
Structure Type: Open-frame
Dimensions (L/W/H) (mm): 680/510/540
Packing size (L/W/H) (mm): 700/530/570
Net weight (kg): 75
In 20" Container (sets): 140
MOQ (SET ): 5
Original Spare parts(free): Carburetor (one set), Spark plug(two sets), Recoil starter (one set) Using for three years.
Certification: CE
Delivery time: 15days(less than 1000sets)
Welcome to CAIMEI Machinery manufacture (Shanghai)Co., Ltd. We take great pleasure introducing ourselves as a manufacture & export enterprise located in the industry zone of Tairi, Fengxian District, Shanghai, China. We specialize in design and manufacture for electric generators. We are professional both of electrodynamics and mechanics, having crack technical team and excellent servies after sale.
We supply fire-new air-cooled diesel generator, air-cooled gasoline generator, water-cooled diesel generator, gasoline pump, diesel pump, diesel generating/welding set. Actually, Cummins engine and Vovol engine also used to be assembly for generator in our workshop. For special requirement, such as sound-proof, water-proof, remote control, mobile, automatic transfer, all those can be found the right model in our products storage. Generators as electric power supplier or backup power are using diffusely for construction, factory, railway, project constructing, road repairing, fire protection and so on.
With many years experience in import and export, we have the experience and producing ability to sell our products, provide services after sale on an international, global scale. We got certificate of ISO9001-2000 and international CE. Till now, our clients list countries in as follow: Asia (Japan, Vietnam, Burma, Korea, Pakistan, India, U. A. E, Iraq, Qatar, Kuwait, and Lebanon), Africa (Nigeria, Kenya, Tanzania, Ethiopia, Guinea-Bissau, Liberia, Sierra Leone, Congo, Ghana, and South Africa), Oceania (Australia, New Zealand), Latin America (Venezuela, Nicaragua), Europe(Russia, Norway, France, Italy, andTurkey) and so on.
To achieve real success in your business and industry, why not knock on the doors of CAIMEI Machinery Manufacture (Shanghai)Co., Ltd. - Your Cooperant Partner in China.
