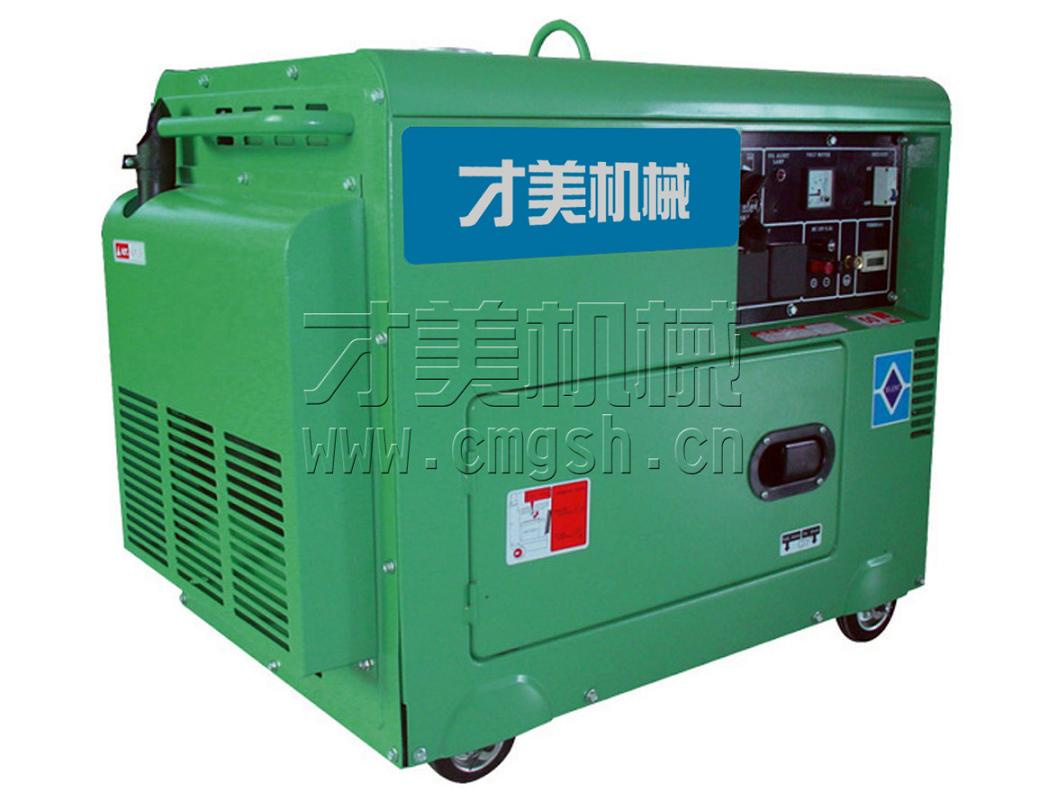

5kw Air-Cooled Silent Diesel Generator Set (5GF-LDE)
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T |
Model Code: 5GF-LDE
ALTERNATOR
Frequency: 50Hz
Rated Output Power(kw): 5.0
AC Rated Voltage (V): 220
AC Rated Current (A): 22.7
Phase: Single-phase
DC Output: 12V / 8.3A
Power Factor (cosφ ): 1.0
Adjusting of output voltage: Automatic
ENGINE
Engine Model Code: RY186FA
Engine type(automatic start): Single-cylinder, 4-stroke, Air-cooled Diesel Engine
Rated Output Power(kW/HP): 5.7/7.8
Rated Speed (RPM): 3000 3600(60Hz)
Displacement (CC): 406
Compression Ratio: 19: 1
Starting Method: Electric Starter
Fuel: 0# Diesel (summer)/-10# Diesel (winter)
Fuel tank capacity (L): 16
Lubrication Oil: SAE10W30 (above CC grade)
GENERATOR SET
Structure Type: Cart Type
Dimensions (L/W/H) (mm): 910/530/740
Packing size (L/W/H) (mm): 980/570/770
Net weight (kg): 175/183
| Prod Model: |
5GF-LDE |
| Markets: |
South America,Eastern Europe,Africa,Mid East,Eastern Asia |
| Cooling Method: |
Wind Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
Welcome to CAIMEI Machinery manufacture (Shanghai)Co., Ltd. We take great pleasure introducing ourselves as a manufacture & export enterprise located in the industry zone of Tairi, Fengxian District, Shanghai, China. We specialize in design and manufacture for electric generators. We are professional both of electrodynamics and mechanics, having crack technical team and excellent servies after sale.
We supply fire-new air-cooled diesel generator, air-cooled gasoline generator, water-cooled diesel generator, gasoline pump, diesel pump, diesel generating/welding set. Actually, Cummins engine and Vovol engine also used to be assembly for generator in our workshop. For special requirement, such as sound-proof, water-proof, remote control, mobile, automatic transfer, all those can be found the right model in our products storage. Generators as electric power supplier or backup power are using diffusely for construction, factory, railway, project constructing, road repairing, fire protection and so on.
With many years experience in import and export, we have the experience and producing ability to sell our products, provide services after sale on an international, global scale. We got certificate of ISO9001-2000 and international CE. Till now, our clients list countries in as follow: Asia (Japan, Vietnam, Burma, Korea, Pakistan, India, U. A. E, Iraq, Qatar, Kuwait, and Lebanon), Africa (Nigeria, Kenya, Tanzania, Ethiopia, Guinea-Bissau, Liberia, Sierra Leone, Congo, Ghana, and South Africa), Oceania (Australia, New Zealand), Latin America (Venezuela, Nicaragua), Europe(Russia, Norway, France, Italy, andTurkey) and so on.
To achieve real success in your business and industry, why not knock on the doors of CAIMEI Machinery Manufacture (Shanghai)Co., Ltd. - Your Cooperant Partner in China.
