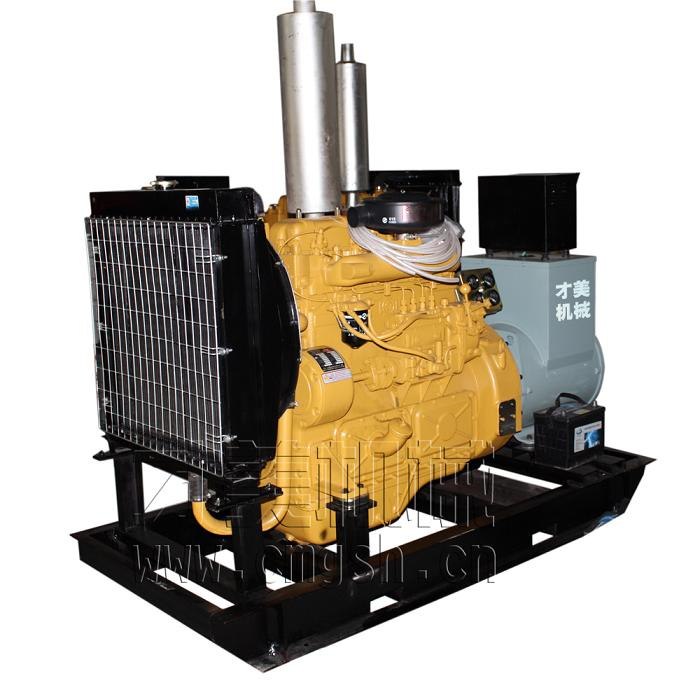

Model code: CMG160-S
Alternator
Alternator model code: TWG4.1CB /MP-180-4
Frequency (Hz): 50
Rated output power (kw/KVA): 160/200
Rated current (AC) (a): 304
Rated voltage (v): 380/230
Power factor (cosφ ): 0.8
Remarks:
Our generator set can conform to your requirements as followed
Specifications:
-Frequency regulation +/-. 5 Hz
-Soft start, for low inrush
-No belts or gears
-Protected drive motor:
Over current, overtemp, motor overload, phase to phase and phase to ground short circuit power supply under voltage and phase loss generator output circuit breaker.
-Display reading:
Motor speed, voltage, frequency and current and output kw.
-Package in weather-proof, vandal resistant container. Ventilated with dust filtration, 50 degrees c operating temperature acceptable for continuous full load duty.
Completely self contained, external cable terminations for input and output power. Unit includes spare parts kit for maintenance.
ENGINE
Engine Model Code: 6135AZLD
Engine Type: 6-Cylinder, 4-StrokesWater-Cooled Diesel Engine
Output Power [KW]: 227
Rotation Speed (RPM): 1500
Speed Regulation: Mechanical
Fuel Consumption (L/h): 53.6
Lube Capacity (L): 27
GENERATOR SET
Starting Method: Electric Starting
Insulation Class: H, BRUSHLESS
Output: Tri-Phase, 4-Lines
Voltage Regulation: AVR
Dimension (L/W/H) (mm): 2850/1030/1650
Net Weight (kg): 3850
Welcome to CAIMEI Machinery manufacture (Shanghai)Co., Ltd. We take great pleasure introducing ourselves as a manufacture & export enterprise located in the industry zone of Tairi, Fengxian District, Shanghai, China. We specialize in design and manufacture for electric generators. We are professional both of electrodynamics and mechanics, having crack technical team and excellent servies after sale.
We supply fire-new air-cooled diesel generator, air-cooled gasoline generator, water-cooled diesel generator, gasoline pump, diesel pump, diesel generating/welding set. Actually, Cummins engine and Vovol engine also used to be assembly for generator in our workshop. For special requirement, such as sound-proof, water-proof, remote control, mobile, automatic transfer, all those can be found the right model in our products storage. Generators as electric power supplier or backup power are using diffusely for construction, factory, railway, project constructing, road repairing, fire protection and so on.
With many years experience in import and export, we have the experience and producing ability to sell our products, provide services after sale on an international, global scale. We got certificate of ISO9001-2000 and international CE. Till now, our clients list countries in as follow: Asia (Japan, Vietnam, Burma, Korea, Pakistan, India, U. A. E, Iraq, Qatar, Kuwait, and Lebanon), Africa (Nigeria, Kenya, Tanzania, Ethiopia, Guinea-Bissau, Liberia, Sierra Leone, Congo, Ghana, and South Africa), Oceania (Australia, New Zealand), Latin America (Venezuela, Nicaragua), Europe(Russia, Norway, France, Italy, andTurkey) and so on.
To achieve real success in your business and industry, why not knock on the doors of CAIMEI Machinery Manufacture (Shanghai)Co., Ltd. - Your Cooperant Partner in China.
