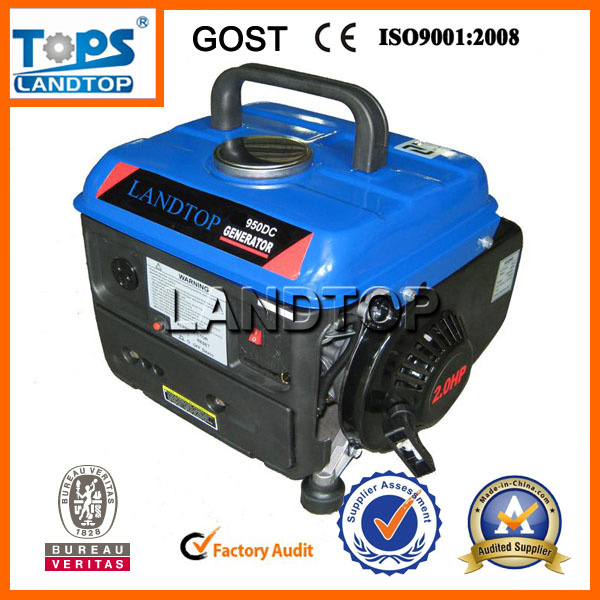

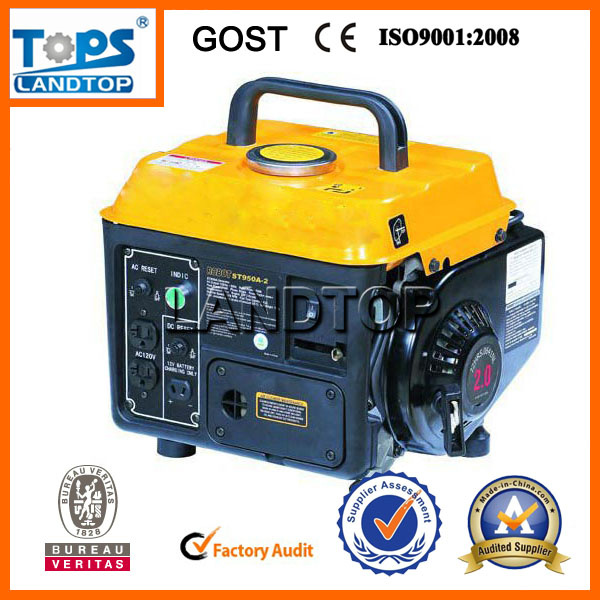

Gasoline Generator/Petrol Generator
The maximum output power is 650-900W. The machine is small capacity generator, which can supply electricity for lighting in ships; It also can be used as house-hold electric devices in towns or villages. It's easy to carry and use. The generator with low fuel consumption, low noise, low pollution; And the voltage and frequency are stable.
Type Does not have brushes the electric capacity to start
Frequency(Hz) 50 60 50 60 50 60
Rated Power(W/ VA) 450 550 650 800 800 1000
Max Power(W/VA) 500 600 720 880 880 1100
Kerosene
Engine Voltage 110, 120, 220, 230, 240
Type Simplex, Two strokes, Forced-air cooling gasoline engine
Fuel oil Does not have the lead to mix the gasoline
Machine oil Mixes in advance 50: 1
Starting System Recoil starter
Fuel tank(L) 4
Entire
Machine Displancement(CC) 63
Continuous working
Time(h) 8 6.5 5.8 4.8 5 4
Noise rank(dB) 57.0 at 7m
Net weight(kg) 20/18 22.5/20.5 25/23
Volume(L*W*H) 398 x 324 x 330
|
Model |
LTP950 |
|
Generator |
self-exciting, 2-poles, single phase |
|
AC Frequency |
50Hz |
60Hz |
|
Engine speed |
3000rpm |
3600rpm |
|
AC Rated voltage(v) |
220v/230v/240v |
110v/120v 220v/240v |
|
Rated AC Output(w) |
1000 |
|
|
Max. AC Output(w) |
1100 |
|
|
DC output |
12V-8.3A |
|
Power factor |
cosφ =1.0 |
|
Voltage Regulator |
Capacitance |
|
Engine |
|
Engine model |
1E45F |
|
Type |
OHV 2-stroke, air cooled, single-cylinder |
|
Bore*stroke |
45mm*40mm |
|
Displacement(cc) |
63 |
|
Continuous output |
1.1kw/3000rpm |
|
Maximum output |
1.3kw/3000rpm |
|
Fuel tank capacity |
4L |
|
Fuel |
50: 1Gasoline and oil mixed |
|
Fuel consumption(g/kw/h) |
540 |
|
Starting system |
recoil |
|
Ignition model |
TCI |
|
Compression ratio |
7.4: 1 |
|
Noise level LwA dB(A) |
60/63 |
|
Dimension(L*W*H)mm |
375X325X325 |
|
Net weight(kg) |
20 |
|
Gross weight(kw) |
21 |
|
20FT container QTY(PCS) |
750 |
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
