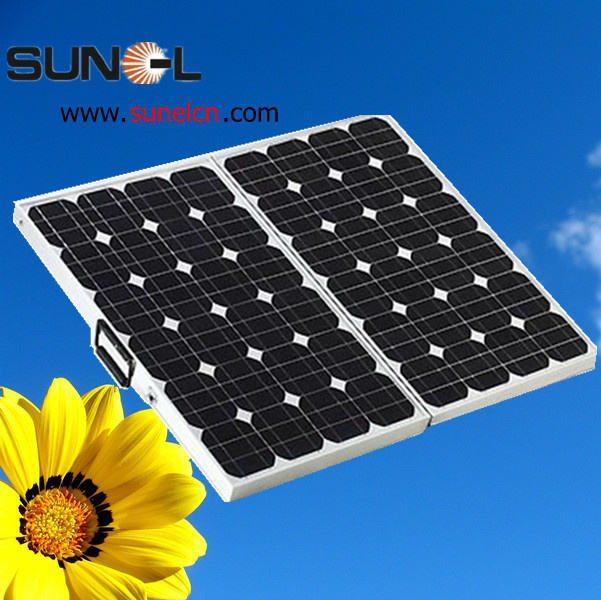

Folding solar panels that take up less room, wiring, connectors, stand and a bag.
|
Model type |
SNM-F60 |
|
Mono or Poly |
Mono-Crystalline |
|
Peak power(Pmax) |
60W |
|
Weight |
6.2kg |
|
Dimension |
450× 540× 30mm(2PCS) |
|
Maximum power voltage (Vmp) |
17.8V |
|
Maximum power current (Imp) |
1.7A |
|
Open circuit voltage (Voc) |
22V |
|
Short circuit current (Isc) |
1.86A |
|
Module Efficiency |
12.5% |
|
Total Number of Cells (Pcs) |
36 |
|
Tolerance (± ) |
2% |
|
Maximum System Voltage |
700VCD |
|
Temp. Coeff. of Isc (TK Isc) |
0.058 %/° C |
|
Temp. Coeff. of Voc (TK Voc) |
-0.376 %/° C |
|
Temp. Coeff. of Pmax (TK Pmax) |
-0.503%/° C |
|
Normal Operating Cell Temperature |
44.4± 2%/° C |
|
Frame (Material, Corners, etc. ) |
Aluminum |
|
Length of Cables (mm) |
900mm |
|
Temperature Range |
-40° C~+85° C |
|
Surface Maximum Load Capacity |
60m/s(200kg/sq. m) |
|
Allowable Hail Load |
steel ball fall down from 1m height |
|
Standard Test Conditions |
AM1.5 1000W/m2 25° C |
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
