Description:
The product is mainly composed of blade, generator, electromagnetic controller, pole, control device, etc.

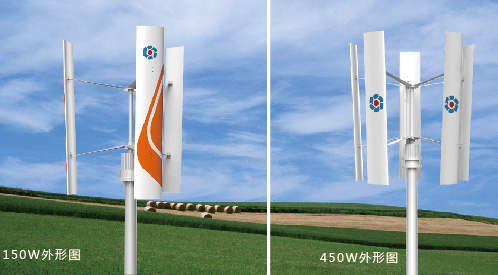

Vertical-axis wind turbine generator converts wind energy into mechanical energy and then into electrical energy at low speed. The wind aligning is unnecessary for the vertical-axis wind turbine when wind changes, and this is a big advantage relative to the horizontal-axis wind turbine. It not only simplifies the structural design and also reduces the gyroscopic force at the aligning of wind wheel.
Features:
Blades which are designed strictly in accordance with the requirements of aerodynamics have small vibration and low noise at high-speed rotation;
Start at low wind speed;
Generator is made out of high-permeability and heat-resistant materials with the magnetic circuit optimized; stator assembly is processed by vacuum impregnation to greatly improve the insulation resistance and service life;
Dual protection of electromagnetic brake and unloading brake;
Solid structure, easy maintenance and long service life
Model
FD1.3-0.15/8H
Overall length
Rated power
150W
Wind protection mode
Permanent magnet brake
Cut-in wind speed
3m/s
Generator
Permanent magnet synchronous generator
Rated wind speed
10m/s
Transmission
Direct drive
Cut-out wind speed
18m/s
Blade material
Reinforced glass steel
Safe wind speed
50m/s
Altitude
Maximum altitude at rated working conditions: 1000m
Number of blades
3 pieces
Temperature and humidity
Temperature: -40ºC~ +55ºC, humidity: 0 ~90%
Wind wheel diameter
1.3m
Environmental requirements
40m/s wind resistant(It may be used in the harsh environments such as the dusty and salty conditions)
