Description:

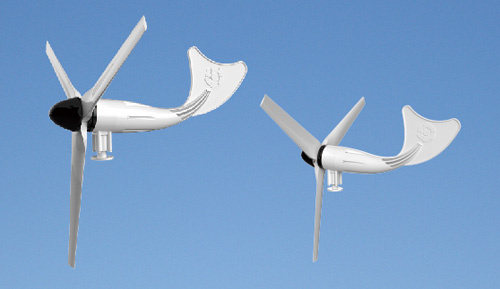

The wind turbine generating unit is driven by natural wind to drive the wind wheel and wind turbine to rotate, and the wind energy is converted into three-phase AC electric energy and then into DC power by controllers, and finally stored in the new energy power generation equipment of battery pack. Electrical energy stored in the battery pack may directly supply power to DC loads or be converted into AC 220V/50Hz (or 110V/60Hz) by inverter to supply power to AC loads.
Features:
Excellent low-speed generation capacity, resistance to 30m/s high wind, and high reliability;
Blades are made of polymer composite with good strength and toughness, light weight and no distortion. Products are transported quietly and smoothly;
Efficient permanent magnet and optimized magnetic circuit are adopted, high-permeability and heat-resistant materials are selected; stator assembly is processed by vacuum impregnation to greatly improve the insulation resistance and service life;
Humanized design is convenient for the equipment installation, maintenance and repair;
Low price, high generation efficiency, a variety of exterior designs and beautiful style
Model
FD2.0-0.6/11-F
Overall length
1160mm
Rated power
600W
Wind protection mode
Electromagnetic brake (optional: mechanical brake)
Cut-in wind speed
3m/s
Generator
Permanent magnet synchronous motors
Rated wind speed
11m/s
Transmission
Direct drive
Cut-out wind speed
18m/s
Blade material
Reinforced glass steel
Safe wind speed
50m/s
Altitude
Maximum altitude at rated working conditions: 1000m
Number of blades
3 pieces
Temperature and humidity
Temperature: -40ºC~ +55ºC, humidity: 0 ~90%
Wind wheel diameter
2m
Environmental requirements
50m/s wind resistant(It may be used in the harsh environments such as the dusty and salty conditions)
Zkenergy is a professional high-tech manufacturer specializing in the research & development, production and application of renewable energy, and a leading solution provider of wind, solar and wind-solar power generation.
ZKEnergy R&D center has a national level professor team who has created many patents and proprietary technologies. The wind-solar complementary power generation technology, middle and small scale wind power generation technology, smart control technology and remote monitoring technology innovated by ZKEnergy are all in the leading position in the industry. With the process of integrated product development as our principle, diversified projects as our impetus, technical platform as our backbone, professional project management as our guarantee, we can achieve the target of promptly presenting new products with high quality.
