Description:

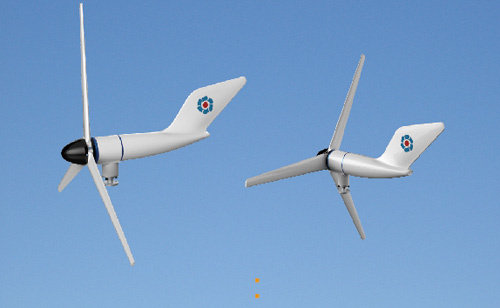

The wind turbine is driven by natural wind to drive the wind wheel and wind turbine to rotate, and the wind energy is converted into three-phase AC electric energy and then into DC power by controllers, and finally stored in the new energy power generation equipment of battery pack. Electrical energy stored in the battery pack may directly supply power to the DC loads or be converted into AC 220V/50Hz ( or 110V/60Hz) by inverter to supply power to AC loads.
Features:
Mechanical brake technology with completely independent intellectual property right is highly reliable;
With good low-speed power generation capacity and the resistance to 50m/s strong wind, it is suitable for use in harsh environments such as dust and salt spray;
Blade is made of GFRP and processed through RTM and special surface coating;
Efficient permanent magnet and optimized magnetic circuit are adopted, high-permeability and heat-resistant materials are selected; stator assembly is processed by vacuum impregnation to greatly improve the insulation resistance and service life;
With the low maintenance requirements, it has no part in need of regular maintenance.
Model
FD2.8-1.0/10
Overall length
1700mm
Rated power
1000W
Wind protection mode
Electromagnetic brake + mechanical brake
Cut-in wind speed
3m/s
Generator
Permanent magnet synchronous generator
Rated wind speed
10m/s
Transmission
Direct drive
Cut-out wind speed
18m/s
Blade material
Reinforced glass steel
Safe wind speed
50m/s
Altitude
Maximum altitude at rated working conditions: 1000m
Number of blades
3 pieces
Temperature and humidity
Temperature: -40ºC~ +55ºC, humidity: 0 ~90%
Wind wheel diameter
2.8m
Environmental requirements
50m/s wind resistant(It may be used in the harsh environments such as the dusty and salty conditions)
