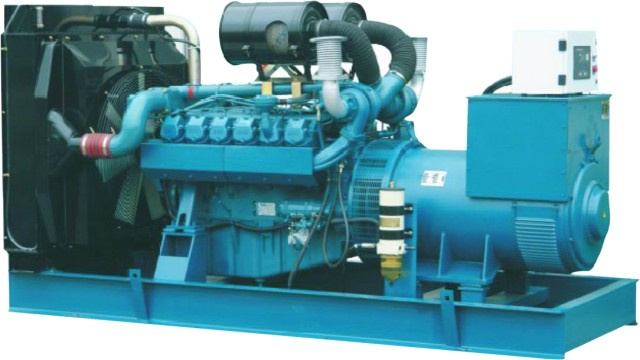

Korea Doosan Diesel Generator Set
1)Original Korea Doosan Daewoo Diesel Engine
2)Four strokes, wind-water coolant
3)Turbo, intercooled, low noise, excellent emission
4)Reliable and stable function, compact structure, large power.
Doosan Diesel generator set
Genset Model: BDX550
Prime power(KW/KVA)500 / 625
Standby power(KW/KVA) 550/ 687.5
Rated current(A) 65
Rated voltage (V) 400/230
Rated frequency(Hz) 50Hz
Phases arrangement 3 phase 4 line
Power factor 0.8(lagging)
Starting method DC 24Velectrcal starting
L× W× H(mm) 3350× 1400× 1850
Weight (kg) 3700
Technical standards Complied with the standards of Reciprocating internal combustion engine driven alternating current generating sets: GB/T2820.1, . 5, . 6 and ISO85282-1, -5, -6
Engine
Engine brand Doosan/ Daewoo
Engine model: P222LE
Broke× Stroke(mm) 128× 142
No. Of cylinders and arrangement: 12V
Displacement(L): 21.927
Compression ratio 17.2: 1
Combustion method direct injection, compression ignition
Fuel type 0#diesel
Oil type API CE SAE 15W-40
Rotation direction of crankshaft Counter clockwise (face flywheel)
Fuel injection timing BTDC13°
Fuel injection pump ZEXEL IN-LINE "AS" TYPE
Flywheel port size(flywheel cover\flywheel) SAE 3/11.5
Rated revolving speed(rpm) 1500
Induction system Exhaust turbocharging
Alternator
Brand Faraday (Marathon, Engga, Leroy-somer optional )
Model: FD5L-4
Rated capacity(KW/KVA) 40/50
Excitation mode brushless, self-excited
Protection class IP23
Insulation class H
Winding pitch 2/3
Overspeed capacity 2250rpm
Short circuit current capacity 300%(3In): 10s
Controller
Model Deepsea7320
Contents Overspeed\oil-pressure\water temperature\charging failure\showing alarm trouble
Main function High water temperature\low oil pressure\overspeed\starting failure\key starter \samrt remote starter.
Our company is a professional manufacture of diesel generator set, all our products are of good quality. We can provide our customer diesel generator set, gas generator, silent generator set, soundproof generator set, traller generator set, Cummins generator set, Doosan Daewoo Diesel Generator Set, MTU generator set and other genset.
|
BS POWER DIESEL GENERATOR SET |
|
|
|
50HZ 1500rpm 400/230V |
|
|
|
DOOSAN |
|
|
|
Genset Model |
KW/KVA |
Engine Model (DOOSAN) |
Cyl. |
alternator (marathon ) |
Displacement (L) |
oil capacity(L) |
Fuel cons.100% (L/H) |
Dimensions (L x W x H) MM |
weight(kg) |
|
Prime power |
Standby power |
|
BDX55 |
50/62.5 |
55/68.8 |
DB58 |
6L |
MP-58-4 |
5.785 |
16 |
12.5 |
2300x800x1300 |
1300 |
|
BDX77 |
70/87.5 |
77/96 |
D1146 |
6L |
MP-70-4 |
8.071 |
15.5 |
17.8 |
2300x800x1300 |
1300 |
|
BDX100 |
90/112.5 |
100/125 |
D1146T |
6L |
MP-90-4 |
8.071 |
15.5 |
22.8 |
2350x800x1300 |
1450 |
|
BDX150 |
135/169 |
150/187.5 |
P086TI-I |
6L |
MP-140-4 |
8.071 |
15.5 |
34.2 |
2600x950x1400 |
1750 |
|
BDX180 |
160/200 |
180/225 |
PO86TI |
6L |
MP-160-4 |
8.071 |
15.5 |
40.4 |
2600x950x1400 |
1850 |
|
BDX240 |
220/275 |
240/300 |
P126TI |
6L |
MP-220-4 |
11.051 |
23 |
55.4 |
2900x1100x1500 |
2100 |
|
BDX260 |
240/300 |
260/325 |
P126TI-II |
6L |
MP-240-4 |
11.051 |
23 |
60.4 |
3000x1100x1500 |
2250 |
|
BDX290 |
260/325 |
290/326.5 |
P158LE-2 |
8V |
MP-260-4 |
14.618 |
21 |
65.1 |
2850x1400x1750 |
2350 |
|
BDX330 |
300/375 |
330/412.5 |
P158LE-1 |
8V |
MP-300-4 |
14.618 |
21 |
75.1 |
2650x1400x1750 |
2400 |
|
BDX360 |
330/412.5 |
360/450 |
P158LE |
8V |
MP-320-4 |
14.618 |
21 |
82.6 |
3100x1400x1750 |
2500 |
|
BDX400 |
360/450 |
400/500 |
P158LE-S |
8V |
MP-350-4 |
14.618 |
21 |
90.1 |
3100x1400x1750 |
2650 |
|
BDX440 |
400/500 |
440/550 |
P180LE |
10V |
MP-400-4 |
18.273 |
35 |
99.2 |
3350x1400x1780 |
3000 |
|
BDX500 |
450/562.5 |
500/625 |
P222LE-I |
12V |
MP-480-4 |
21.927 |
40 |
111.2 |
3450x1400x1850 |
3700 |
|
BDX550 |
500/625 |
550/687.5 |
P222LE |
12V |
MP-500-4 |
21.927 |
40 |
124.1 |
3550x1400x1850 |
3700 |
|
BDX600 |
550/687.5 |
600/750 |
P222LE-II |
12V |
MX-560-4 |
21.927 |
40 |
135.8 |
3600x1400x1850 |
4000 |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
