1. Engine and alternator shall be mounted on a same frame steel skid.
2. Built-in damper for anti-vibration.
3. World most famous brand diesel engine.
4. World famous brand AC alternator.
5. Advanced and reliable control module
6. Full range protection function and alarm shutdown feature.

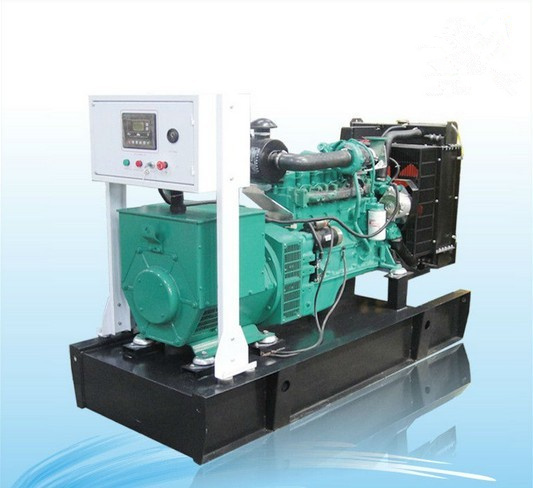

Diesel generator set
|
Genset Model
|
HCM56
|
Rating Power (KW/KVA)
|
40/50
|
Standby Power(KW/KVA)
|
45/56
|
Rating Ammeter(A)
|
72
|
Diesel engine
|
General data
|
Engine model/Cummins
|
4BTA3.9-G2
|
Prime Power(KW/KVA)
|
50/62.5
|
Standby Power(KW/KVA)
|
55/68.75
|
number of Cylinder & Configuration
|
4 cylinders in line
|
Bore X Stroke (mm)
|
102X120
|
Displacement(l)
|
3.9
|
Compression Ratio
|
16.5:1
|
Governor type
|
Electronic governor
|
Rated RPM
|
1500
|
Exhaust system
|
Exhaust gas flow(m³/min)
|
14
|
Max. Exhaust Gas Temperature(°C)
|
502
|
Max. Exhaust back Pressure(KPA)
|
10
|
Air intake system
|
Aspiration Type
|
Turbocharged & After cooled
|
Max. intake depression(KPA)
|
6
|
Combustion air Volume(m³/min)
|
3.5
|
Fuel system
|
Rating Fuel Consumption(l/h)
|
12
|
75% full Fuel Consumption(l/h)
|
12.4
|
Lubrication system
|
Total oil capacity(l)
|
9
|
Max permissible oil temp(°C)
|
121
|
Oil pressure at rated rpm(KPA)
|
350
|
Cooling system
|
Total Coolant capacity(l)
|
18
|
Max. temperature of coolant(°C)
|
96
|
Fan cooling air flow(m³/min)
|
125
|
Alternator
|
Alternator model
|
MGA225-40-4S
|
Rating Voltage(V)
|
400/230
|
Rating Capacity(KW/KVA)
|
40/50
|
Eff.%
|
87.4%
|
Power Factor
|
0.8
|
Exciting type
|
Brushless self-exciter, AVR
|
Voltage regulation
|
±1%
|
No. of Phase
|
3 phase 4 wire
|
Enclosure Class
|
IP21
|
Class of Insulation
|
H
|
Battery
|
Rating Capacity(AH)
|
2X80AH 12V
|
Dimension
|
Generator set dimension (LXWXH)
|
1850X830X1300
|
Weight
|
Generator set Net Weight (kg)
|
1100
|
