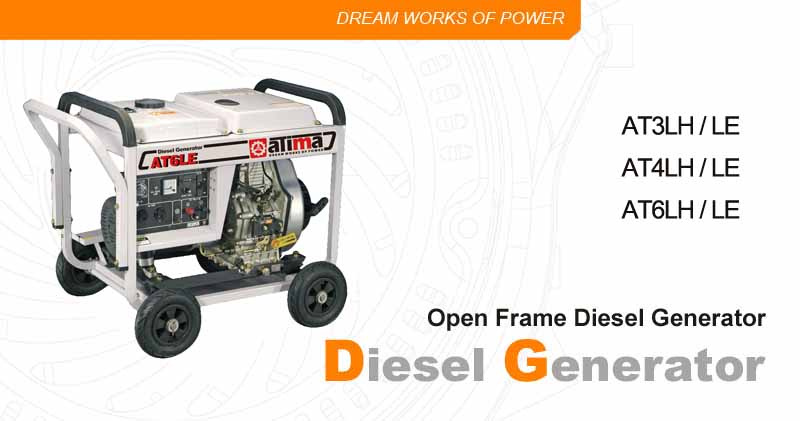

Diesel Generator Set
Model: AT4LE-A
Frequency: 50Hz/60Hz
Rated Power: 2.6kw, 2.8kw
Rated Voltage: 230V, 120V/240V
Engine Speed: 3000rpm, 3600rpm
Power Factor: Cosφ =1.0
Starting Mode: Recoil/Electric start
Net Weight: 91kg
Dimensions(LxWxH): 685mmX470mmX590mm
Engine model: D178F(E)
Type: Single-cylingder, Vertical, 4-Stroke, Direct injection, Air-cooled diesel engine
Continuous Output: 4.9HP, 5.13HP
Maximum Output: 5.39HP, 5.69HP
Bore*Stroke: 78mm*62mm
Displacement: 296cm3
Fuel Tank Capacity: 15L
Lube-oil Capacity: 1.1L
Crankshaft Direction: Clockwise from flywheel end
Cooling type: Force air-cooled
We also provide more diesel generators with different specification and technical parameters.
Shanghai Alpha Import & Export Co., Ltd is the leading China supplier for engine powered equipments.
Integrated with strong technology development, satisfactory products and excellent sales team, ATIMA products are serving the people in more than 100 countries all over the world.
With continuous development, our range is expanding to engine, generator set, pumps, garden machinery, small construction machinery as well as marine products.
With the Principle of meeting all market demands, we are able to accept OEM production and process with customers conditions. Any products you need, please contact Alpha people at any time, we are always ready to listen to our customers.
