We have got EPA for our Diesel Engine( D186&D178),
Diesel Generator(D4LH/LE, D6LH/LE/LE-3P, D6LN/LN-3P, D4LE-A, D6LE-A ),
Diesel Pump (DP50, DP80, DP100 )
And CE for our Diesel Generator(D3LE, D4LE, D6LE/LE-3P/LN-3P )

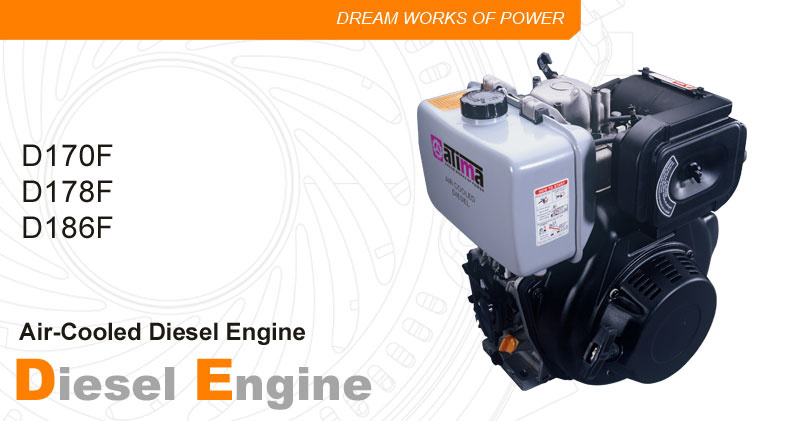

MODEL D170F
Engine Type Single-cylinder, Vertical, 4-Stroke,
Direct injection, Air-cooled diesel engine
Bore × Stroke 70mm × 55mm
Displacement 211cm3
Engine Speed 3, 000rpm 3, 600rpm
Continuous Output 3.27HP 3.67HP
Maximum Output 3.60HP 4.04HP
Fuel Tank Capacity 2.5L
Lube-oil Capacity 0.75L
Crankshaft Direction Clockwise from flywheel end
Cooling Type Force air-cooled
Lubrication Type Pressure splash
Starting Mode Recoil /electric start
Package Dimensions (L× W× H) 440mm× 380mm× 470mm
Gross/Net Weight 34/31kg
MODEL D178F
Engine Type Single-cylinder, Vertical, 4-Stroke,
Direct injection, Air-cooled diesel engine
Bore × Stroke 78mm × 62mm
Displacement 296 cm3
Engine Speed 3, 000rpm 3, 600rpm
Continuous Output 4.90HP 5.17HP
Maximum Output 5.39HP 5.69HP
Fuel Tank Capacity 3.5L
Lube-oil Capacity 1.1L
Crankshaft Direction Clockwise from flywheel end
Cooling Type Force air-cooled
Lubrication Type Pressure splash
Starting Mode Recoil /electric start
Package Dimensions (L× W× H) 485mm× 435mm× 500mm
Gross/Net Weight 40/38 kg
MODEL D186F
Engine Type Single-cylinder, Vertical, 4-Stroke,
Direct injection, Air-cooled diesel engine
Bore × Stroke 86mm × 70mm
Displacement 406 cm3
Engine Speed 3, 000rpm 3, 600rpm
Continuous Output 7.62HP 8.30HP
Maximum Output 8.38HP 9.13HP
Fuel Tank Capacity 5.5L
Lube-oil Capacity 1.65L
Crankshaft Direction Clockwise from flywheel end
Cooling Type Force air-cooled
Lubrication Type Pressure splash
Starting Mode Recoil /electric start
Package Dimensions (L× W× H) 417mm× 441mm× 494mm
Gross/Net Weight 55/53 kg
Shanghai Alpha Import & Export Co., Ltd is the leading China supplier for engine powered equipments.
Integrated with strong technology development, satisfactory products and excellent sales team, ATIMA products are serving the people in more than 100 countries all over the world.
With continuous development, our range is expanding to engine, generator set, pumps, garden machinery, small construction machinery as well as marine products.
With the Principle of meeting all market demands, we are able to accept OEM production and process with customers conditions. Any products you need, please contact Alpha people at any time, we are always ready to listen to our customers.
