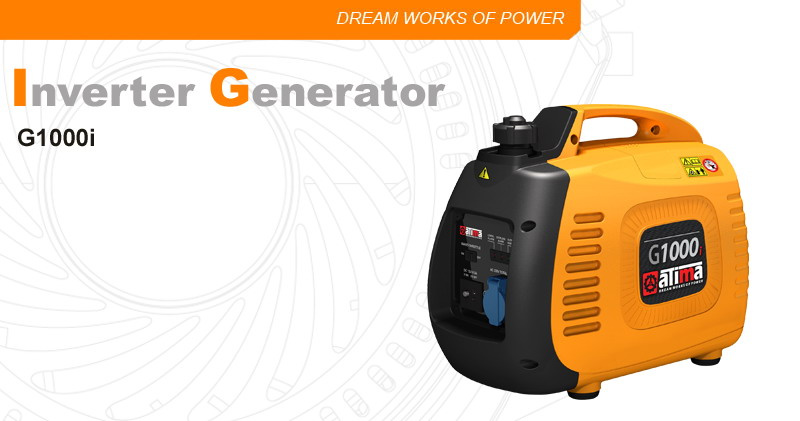

Model g1000I(also have g2000I)
Rated frequenty 50Hz 60Hz
Rated voltage 230 v 120/240v
Rated current 3.9a 7.5/3.8a
Rated speed 5500 r/min
Rated output 0.85 kw
Max. Output 0.95 kw
DC output 12v-8.3a
Phase number single
Current circuit breaker without
Structal type portable
Fule tank capacity 2.5 l
Set fule consumption 550 g/kw. H
Continuous running time
(rated output)
4 hr
Noise level
(zero load--full load) 54~59 dB (a)/7m
Overall dimension (lxwxh) 480x260x390 mm
Net weight 15 kg
Starting system recoil starter
Fule type automotive unlead gasoline
Lube oil type sae10w30 (above CC grade)
Engine model kg142
Engine type single cylinder, 4-stroke, ohv gasoline engine
Bore x stroke 43.5 x 36 mm
Displacement 53.5 ml
Compression ratio 8.5: 1
Rated power 1.3/5500 kw(HP)/(r/min)
Ignition system t. C. I
Spark pulg a7rtc/ur5
Lowest fuel consumption 420
Shanghai Alpha Import & Export Co., Ltd is the leading China supplier for engine powered equipments.
Integrated with strong technology development, satisfactory products and excellent sales team, ATIMA products are serving the people in more than 100 countries all over the world.
With continuous development, our range is expanding to engine, generator set, pumps, garden machinery, small construction machinery as well as marine products.
With the Principle of meeting all market demands, we are able to accept OEM production and process with customers conditions. Any products you need, please contact Alpha people at any time, we are always ready to listen to our customers.
