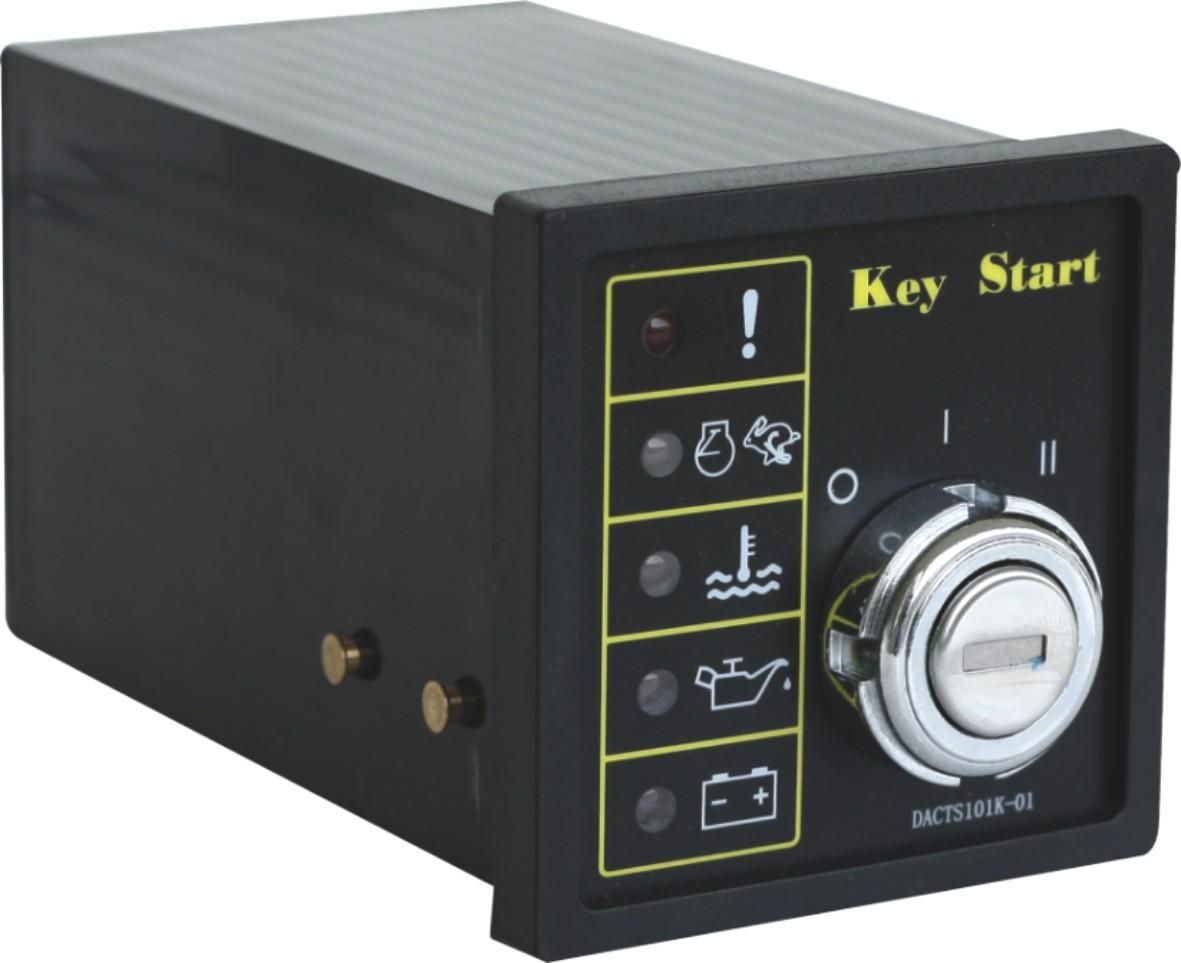

101 series Diesel Generator Manual Controller is a diesel control module. It manually start and stop the diesel via a key switch on the front panel, automatically shut down the diesel when the diesel is on fault conditions and indicate the failure by LED.
1. Main function
*manually start and stop the generator
*detect the faults as emergency stop, over speed, high temperature, low oil pressure and charge failure
*shut down the generator automatically on fault condition & indicate the faults via LED
*derive speed signal from either generator frequency output or the magnetic pick-up
2. Specification
DC supply:
9 to 33 V continuous.
Cranking dropouts:
Able to survive voltage dips during
Cranking. This is achieved without
The need for internal batteries.
Alternator input range:
0 - 250 v AC
Alternator input frequency:
50 - 60 Hz at rated diesel speed.
Magnetic input range:
0.5 v to +/- 80 v
Magnetic input frequency:
2300Hz to 6000 Hz at rated diesel speed.
Speed meter output:
05mA DC
Start relay output:
16 AMP DC at supply voltage.
Run relay output:
16 AMP DC at supply voltage.
Alarm output:
1 AMP DC at supply voltage.
Overall dimensions:
72 x 72 x 118.5mm (excluding key switch)
Cut-out dimensions:
67 x 67 mm
Operating temperature range:
-30 to +70º C
