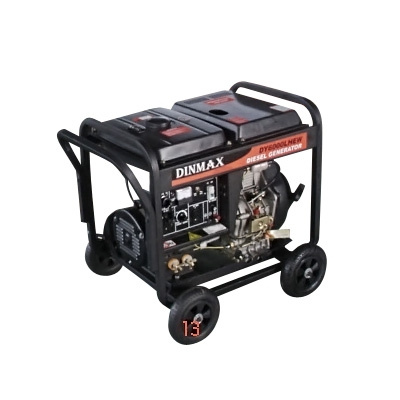

Model DY6000LHEW
Welder Welding(DC) generating(AC) Rated frequency(Hz) 50 60
Rated power(kw) 2 2.2
Rated voltage(v) 230 120/240
Rated current(A) 10.8 9.2
phase number 3
power factor(cosφ ) 0.8
Welding voltage at zero load(DC)(A) 60-50
Rated welding current DC(A) 160
Welding voltage (DC)(v) 26
Welding load continous ratio 60%
Welding current adjustment range(A) 60-200
Electrode(mm) 1.6-4.0
Rated speed(r/min) 3000 3600
Excitation mode Controllable Separate Excitation
Recifying mode IGBT+three-phase
Rectifying bridge(PWM)
Insulation grade B
Engine Pole number 2
Engine model 186FA
Engine type single-cylinder, vertical,
Four-stroke, air cooled
Displacement(ml) 418
Bore× Stroke(mm) 86× 72
Compression ratio 19
Rated power kw/(r/min) 5.7/3000 6.3/3600
Fuel type 0#(summer), -10#(winter,
-35#(chill cold)light diesel
Lube oil brand SAE 10W30[above CC grade]
Fuel consumption(g/kw. H) 360
Fuel tank capacity(L) 15
Continous running time(hr) 6.5
Overall dimension(mm)(L× W× H) 840× 535× 650
Dry weight(kg) LHW: 115 LHEW: 120
Starting system LHW: Recoil starter LHEW: Electric starter
Noise level[at load]dB(A)/7m 75
