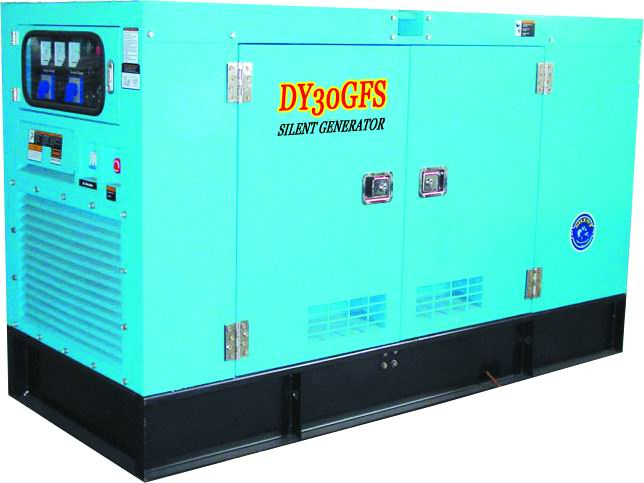

Cummins series silent diesel generating set
Diesel generator
Cummins Diesel Engine Technical Parameters 25 kVA 35 kVA 40 kVA 50 kVA 62.5 kVA
Engine Model X2.5G2 S3.8G3 S3.8G4 S3.8G6 S3.8G7
Engine Type In line 4 stroke water cooled Naturally Aspirated In line 4 stroke water cooled Naturally Aspirated In line 4 stroke water cooled Turbocharged In line 4 stroke water cooled Turbocharged In line 4 stroke water cooled Turbocharged Charged Aircool
BHP 32 45 58 69 80
Dimensions (mm) L-935, W-669, H-872 L-1054, W-680, H-946 L-1054, W-680, H-946 L-1054, W-680, H-946 L-1070, W-773, H-1206
Dry Weight (Kg) 270 382 382 382 458
Rated Speed 1500 RPM 1500 RPM 1500 1500 1500
Cooling Mode Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Coolent Capacity with Radiator (Ltrs. ) 7.5 11 11 11 18.5
Cooling system designed for 50 degree C ambient temperature Yes Yes Yes Yes Yes
Radiator Fan Flow (Litr/second) 1250 1880 1880 1880 1880
Governor Mode/Type Mechanical Mechanical Mechanical Mechanical Mechanical
Governor Class A2 A2 A2 A2 A2
No. Of Cylinder 3 4 4 4 4
Bore (mm) & Stroke (mm) 91.44 X 127 97 X 128 97 X 128 97 X 128 97 X 128
Displacement (Ltrs. ) 2.5 3.8 3.8 3.8 3.8
Compression Ratio 18.5: 1 17.5: 1 17.5: 1 17.5: 1 17.5: 1
BMEP (Kpa) 763.7 706.54 910.66 1083.37 1256.08
Start up Mode Electrical Electrical Electrical Electrical Electrical
Fuel Consumption @ 75% load (Litr. /hr. ) 4.8 6 6.5 8.6 9.8
Full Load Fuel Consumption (Litr. /hr. ) 6 7.8 8.8 11.3 13.1
Lub Oil Specification CF4 15W40 CF4 15W40 CF4 15W40 CF4 15W40 CF4 15W40
Lub Oil Consumption (LPH) 0.01 0.019 0.024 0.029 0.034
Lub oil change period 250 300 300 300 300
Type of lub oil filter Spin on Spin on Spin on Spin on Spin on
Lub Oil sump Capacity (Ltrs. ) 6.5 9 9 9 9
Battery Capacity / Rating 65 AH, 12 V, 1 No. 65 AH, 12 V, 1 No. 65 AH, 12 V, 1 No. 65 AH, 12 V, 1 No. 65 AH, 12 V, 1 No.
Emission level ARAI Certified as per latest CPCB / MOEF emission norms
Exhaust Pipe Size (mm) 50 75 75 75 75
Exhaust gas back pressure Limit 2.5 inches of Hg 1.5 inches of Hg 1.5 inches of Hg 1.5 inches of Hg 1.5 inches of Hg
Type of Branded Silencer Hospital Grade Critical Grade Critical Grade Critical Grade Critical Grade
Insertion loss of Cummins silencer 32 - 42 dba 25 - 32 dba 25 - 32 dba 25 - 32 dba 25 - 32 dba
Engine Safety Control Shut-Off Coil with safeties for Low Lub Oil Pressure & High Water Temprature, overspeed shutdown Low lub oil pressure warning/shutdown, High Coolant temp. Warning/shutdown, Low/high/weak battery voltage warning, Fail to start warning, High/low AC voltage shut down, Under/over frequency shutdown, Loss of AC sense shutdown Low lub oil pressure warning/shutdown, High Coolant temp. Warning/shutdown, Low/high/weak battery voltage warning, Fail to start warning, High/low AC voltage shut down, Under/over frequency shutdown, Loss of AC sense shutdown Low lub oil pressure warning/shutdown, High Coolant temp. Warning/shutdown, Low/high/weak battery voltage warning, Fail to start warning, High/low AC voltage shut down, Under/over frequency shutdown, Loss of AC sense shutdown Low lub oil pressure warning/shutdown, High Coolant temp. Warning/shutdown, Low/high/weak battery voltage warning, Fail to start warning, High/low AC voltage shut down, Under/over frequency shutdown, Loss of AC sense shutdown
Prime Power (PRP):
