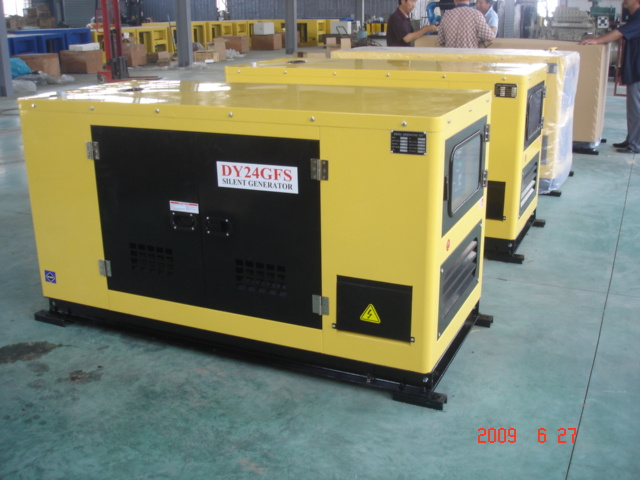

24KW Diesel Generagting Set (DY24GFS3)

24KW Diesel generator(Silent)

1. Model DY24GFS3
A. Rated output: 24KW
B. Rated frequency: 50Hz
C. Rated voltage: 380/230
D. Rated Current: 43.2A
E. Phase: 3-Phase

2...Specifications of Engine
A. Model of engine: 495D(Huasheng, Weifang)
B. Capacity of the tank: 100L fuel tank for no less than 12 hours continuous running, With Fuel indicator
C. Type of the engine: 4-stroke, 4-cylinder, water-cooled diesel engine
D. Displacement: 3.1L
E. Bore* stroke: 95X115mm
F. Starting method: Electric start, with Battery(12V)
G. Type of the fuel: Diesel light fuel
H. Rated Power: 27.6kw/1500rpm

3. Alternator
A. Model of alternator: STC-24(brush)
B. Rated output: 24KW
C. Rated Voltage: 380/230V(400/230)
D. Rated Current: 43.2A
E. Rated frequency: 50Hz
F. Phase: 3-phase
G. Excitation: Brush

4. Control panel
V-meter, 1PC
F-Meter, 1PC
A-meter, 1PC
Start key, Yes.
Circuit breaker 1PC
Indicator(green and red) each 1PC
A. V. R, Yes.
Panel window cover, Yes.
Emergency stop button Yes.
Gen-set Controller(GTR-168), Yes
ATS(Auto Transfer Switch) If need, Yes

5. Soundproof of Cabin
Manufactured in good material, it guarantees a very effective noise reduction. Very light in weight, the sound-proofing box offers easy access for maintenance and installation even in very narrow places. Furthermore it has a very sturdy design and an eye-catching look.

6. Accessory:
Fuel tank: 100L
Battery: 80 AH. 1PC
Battery Cable; 2PCS

7. Spare parts and support
1. Air-filter: 1PCS
2. Fuel filter: 1 PCS
3. Oil filter: 1PCS
4. Cylinder head gasket: 1PCS
5. Rubber piper for connecting water tank 2PCS
The above spare parts are supplied by free of Charge

8. Warranty period:
18 month from the date of the date of the B/L or 1000hour after installation
In warranty period, we will supply technical data guide and supply the others spare parts.
Note: Consumable parts are not included in this warranty.
9.
Size and Weight of Set
2080*1100*1450mm
700/650Kg
Qty: 20'/40'FT: 5PCS/11PCS
