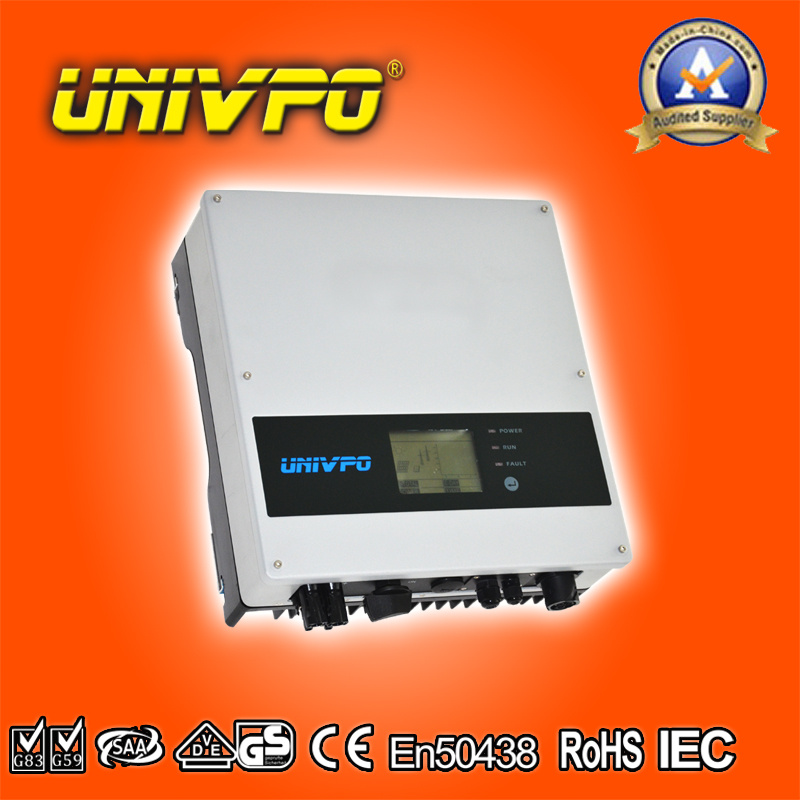

DC AC 220V on Grid Tie Inverter Solar 5000W 50Hz 60Hz (UNIV-46GTS)

DC AC 220V On Grid Tie Inverter Solar 5000W 50HZ 60Hz (UNIV-46GTS)


UNIV-46GTS inverter is suitable for home rooftop photovoltaic system, designed under modern industrial concept. It uses world class technologies. This model is applicable for the photovoltaic system with open-circuit voltage less than 580V, maximum output power less than 5400W. Its maximum conversion efficiency can reach 97.8%. First-class harmonic control ability, small size and light weight make it hold a safe lead among similar products.

Features:
Transformerless design, high efficiency (Max. 97.8%, Euro. 97.4%)
High MPPT accuracy(>99.5%)
Wide DC input range(125-550 Vdc), compatible with different module technologies
Easy to wire, install and operate
IP 65 design, suitable for indoor and outdoor installation
5 years warranty(10~25 years as option)

High Efficiency

Tracking accurate up to 99.5% can make UNIV-46GTS series inverters work more flexible and effective. All rooftop modules areas could be used for generating, it also could minimize the capacity consumption due to shade hiding. Max. Efficiency is up to 97.8%, Euro efficiency 97.4%, which means more transportation power than others solar device. UNIVPO photovoltaic inverter is your most wise choice.

High Reliability

Universal-power is founded in 2003, composed of home and abroad outstanding elite. Under the strict management system, UNIVPO inverter is featured by high efficiency, High quality, high reliability, complying with the IEC62109-1, IEC62109--2, AS3100, AS4777.2/. 3, VDE 0126, EN50438, CE, EMC, C-TICK, etc. Qualification, product repair rate is less than 1%. Due to the high products standard, warranty time could extend to maximum 25 years from regulated 5 years.

High Stability

UNIVPO inverter high quality casing can provide the best protection for insider electronic components, besides, by IP65 protection, it can be installed and run safely in the indoor and outdoor. And no afraid of any bad environment, it always create a best working conditions for you.

Innovative & Smart Monitoring

WIFI cards inside setting is the first Invention of the world, and power management box could preserve all important record from sensor. Each inverter can be quipped with RS485, RS248, USB and Ethernet interface, WIFI kit and GRPS Kits as your option. Through our free monitoring software to connect with your PC/Mobile, you can view the PV station output data and pubic grid power supply.
Convenient Operation

Each UNIVPO inverter has big exquisite graphic display, which will show all the relevant information and settings within 24h (Regardless of the inverter operation or shutdown ) Even after sunset, you could also check the device data and feel comfortable to use it by the user interface and visual display. UNIVPO inverter is with user-friendly large 4" LCD. It can be controlled by voice.

Easy to install

The Characters of UNIV-46GTS inverters are exquisite, portable and small, and Plug-in system integration make it easy for installation. The fillister of UNIVPO inverter with human body engineering design make it easy to pick up, internal rail make it easy to mount with the wall.

Good Heat-dissipation, Low Noise

The Characters of UNIV-46GTS inverters are exquisite, portable and small, and Plug-in system integration make it easy for installation. The fillister of UNIVPO inverter with human body engineering design make it easy to pick up, internal rail make it easy to mount with the wall.

Model		UNIV-15GTS	UNIV-20GTS	UNIV-30GTS	UNIV-36GTS	UNIV-40GTS	UNIV-46GTS
DC  input  Data	Max.   PV-generator  power  [W]	1800	2300	3200	4200	4600	5400
	Max.   DC  Voltage  [V]	450	500	500	580	580	580
	MPPT  voltage  range  [V]	125~450	125~450	125~450	125~550	125~550	125~550
	Turn  on  DC  Voltage  [V]	125	125	125	125	125	125
	Max.   DC  work  current  [A]	12	15	18	20	20	20
	Number  of  inputs/MPP  trackers	1/1
	DC  connector	SUNCLIX,   MC  IV  Connector(Optional)
	Turn  on  power  [W]	5
AC  Output  Data	Norminal  AC  power	1500	2000	3000	3600	4000	4600
	Max.   AC  power	1650	2000	3000	4000	4400	5100
	Max.   AC  current(A)	8	10	15	16	22	25
	Norminal  output  voltage  range	According  to  VDE4105,   VDE  0126-1-1/A1,   RD1699,   G83/1, G59/2,   AS4777.2/. 3
	AC  grid  frequency	According  to  VDE4105,   VDE  0126-1-1/A1,   RD1699,   G83/1, G59/2,   AS4777.2/. 3
	THD(AC  output  current)	< 1%
	Power  factor	~1  (Norminal  power)
	AC  Connector	Single  phase  connector  (with  clamps)
Efficiency	Max.   efficiency	97.00%	97.00%	97.00%	97.80%	97.80%	97.80%
	European  efficiency	> 96%	> 96%	> 96.5%	> 97.4%	> 97.4%	> 97.4%
	MPPT  adaptation  efficiency	> 99.5%
Safty  Equipment	Leakage  current  monitoring  unit	Grid  Monitoring
	DC  switch	Option
	Islanding  protection	AFD
	Grid  Monitoring	According  to  VDE4105,   VDE  0126-1-1/A1,   RD1699,   G83/1, G59/2,   AS4777.2/. 3
Normative  Reference	EMC  compliance	EN  61000-6-1,   EN  61000-6-2,   EN  61000-6-3,   EN  61000-6-4
	Safety  compliance	According  to  IEC62109-1/-2,   AS3100
General  Data	Dimensions  (WxHxD)  [mm]	330*350*125			390*417*142
	Net  Weight  [kg]	12		13	18
	Housing	For  outdoor  and  indoor
	Mounting  information	Wall  mounting
	Operating  temperature  range	-20~60° C(up  45° C  derating)
	Relative  humidity	0~95%
	Site  altitude[m]	2000
	IP  protection  class	IP65
	Topology	Transformerless
	Cooling  concept	Nature  Convection
	Noise  level[dB]	< 25
	Display	3LED, 4'   LCD
	Communication	USB2.0; RS485/WiFi/ZigBee  (optional)
	Standard  warranty[years]	5/10/15/20/25  (optional)
