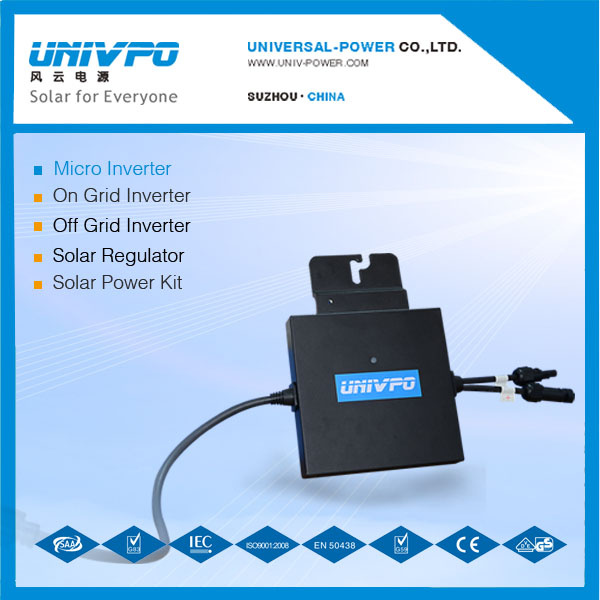

VDE CE APPROVED 248W Solar Micro inverter
？
Product Description of 248W Solar Micro inverter
？
>>Features of 248W Solar Micro inverter？
？
High efficiency(Max.95.2%)
Reduce the shadow influence, improve the generating capacity of the whole plant
AC/DC high frequency isolation technology
Maximum connect 15 sets Mirco-inverters
Adopt electric power carrier communication
Easy design,Plug-and-play chain installation
Remote monitor to each module
The second generation product
？
？
？
？
？
>>Specification of 248W Solar Micro inverter
？
ModelUNIV-M248UNIV-M500
Input Data (DC)
Recommended maximum input power160-300W300W/ route, 2 routes
Maximum input DC voltage50V54V
Start voltage24V24V
Peak power tracking range24V~40V24V~42V
Operating range22V~50V18V~54V
Maximum DC short circuit current15A15A
Maximum input current10A9.5A
Output Data (AC)
Maximum output power248W490W
Nominal output current1.08A2.13A
Maximum output current1.11A2.27A
Nominal voltage range184V~265V184V~264.5V
(Adjustable with Country Deviation)(Adjustable with Country Deviation)
Nominal frequency range46Hz~61.2Hz49.2Hz~60.2Hz
(Adjustable with Country Deviation)(Adjustable with Country Deviation)
Power factor>0.99
Total Harmonic Distortion<2.4%
Maximum units per branch157
Efficiency
Peak inverter efficiency95.20%95.50%
CEC weighted efficiency94.80%94.5
Nighttime power consumption100mW120mW
Mechanical Data
Enclosure environmental ratingIP65
Operating temperature range-40oC~+85 oC-40oC~+65 oC
Dimensions (WxHxD)230mm*165mm*25mm240mm*200mm*25mm
Weight1.4kgs2.5kgs
Features
CommunicationPLCC (Power Line Carrier Communication)
Warranty15 Years15 Years
？
>>Components of PV system with 248W Solar Micro inverter
？
1. Micro Inverter
？
2. AC Cable
？
3. Monitor Unit
？
4. Router of Internet
？
5. Computer(connect with internet)
？
>>Advantages of 248W Solar Micro inverter
？
？
？
Micro-inverters have several advantages over conventional central inverters. The main advantage being small amounts of shading, debris or snow lines on any one solar panel, or even a complete panel failure, does not disproportionately reduce the output of the entire array. Each micro-inverter harvests optimum power by performing maximum power point tracking for its connected panel. They are also simple to design and stock, as there is normally only a single model of inverter that can be used with any size array and a wide variety of panels.
？
？
？
>>Connections with monitoring devices (bus oritented structure)
？
？？？
Packaging & Shipping of 248W Solar Micro inverter
？
？
？
>>Products with accessories of 248W Solar Micro inverter
？
？
>>Shipping Methods of 248W Solar Micro inverter
？
Samples will be shipped in 2 weeks by carriers(DHL, Fedex, EMS,UPS, TNT).
Mass order will be shipped by sea in 35 days.
？
？？
？
