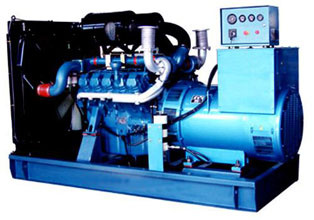

Daewoo Diesel Generator Set (WY-550)
1. Engine: Doosan/Daewoo made in Korea
2. Alternator: Leroy Somer, Stamford or Marathon
3. Rated Voltage: 230V, 400V, 440V, 480V
4. Output type: AC Three phase
5. Power range: 24KW - 560KW (80KVA-700KVA)
6. Rated Frequency: 50Hz/60Hz
7. Rated Speed: 1500RPM/1800RPM
8. Excitation way: Brushless Excitation
9. Inspiration method: Natural aspirated or turbocharged
10. Cooling Method: Water-cooled
11. Governor Method: Electrical or Mechanical governor
12. Cylinder: 6L-12V
13. Phase: Three phase, four wires
14. Protection: IP21, IP22 or IP23
15. Insulation Class: H
16. AMF, ATS, Soundproof canopy and movabel trailers for choices.
17. Standard: CE and ISO9001, ISO14000
Genset
model | Genset
power
(kw) | Current A | Engine
mode | Engine powe(kw)r | Bore
mm | Stroke
mm | Net
Weight
kg | Dimention
mm×mm×mm |
| standby | rated |
| 24GF1 | 24 | 22 | 43/40 | DB33 | 29/26 | 102 | 100 | 700 | 1740×770×1200 |
| 40GF1 | 40 | 36 | 72/65 | P034TI | 48/42 | 102 | 100 | 900 | 1740×770× 1200 |
| 55GF1 | 55 | 50 | 99/90 | DB58 | 59/54 | 102 | 118 | 1200 | 2080×900×1390 |
| 70GF1 | 70 | 64 | 126/115 | D1146 | 85/77 | 111 | 139 | 1300 | 2255×870×1260 |
| 101GF1 | 101 | 92 | 182/166 | D1146T | 118/107 | 111 | 139 | 1350 | 2400×840×1430 |
| 145GF1 | 145 | 132 | 261/238 | D086T1-I | 164/149 | 111 | 139 | 1760 | 2600×930×1650 |
| 176GF1 | 176 | 160 | 317/288 | P086T1 | 199/177 | 111 | 139 | 1740 | 2600×930×1650 |
| 200GF1 | 200 | 180 | 361/324 | P086T1-II | 219/ | 111 | 139 | 1800 | 2610×930×1650 |
| 242GF1 | 242 | 220 | 436/397 | P126T1 | 272/241 | 123 | 155 | 2180 | 2860×1000×1600 |
| 264GF1 | 264 | 240 | 476/433 | P126T1-II | 294/260 | 123 | 155 | 2280 | 2860×1000×1630 |
| 300GF1 | 300 | 270 | 541/487 | P126T1-III | 328/ | 123 | 155 | 2330 | 2960×1000×1630 |
| 320GF1 | 320 | 288 | 577/519 | P158LE-1 | 362/327 | 128 | 142 | 2600 | 2900×1460×1800 |
| 370GF1 | 370 | 320 | 667/577 | P158LE | 414/363 | 128 | 142 | 3120 | 2900×1460×1800 |
| 400GF1 | 400 | 362 | 722/653 | P158LE-S | 441/402 | 128 | 142 | 3200 | 2900×1460×1800 |
| 440GF1 | 440 | 400 | 794/722 | P158T1-II | 496/ | 128 | 142 | 3300 | 2900×1460×1800 |
| 451GF1 | 451 | 400 | 818/722 | P180LE-S | 496/452 | 128 | 142 | 3200 | 2900×1460×1800 |
| 506GF1 | 506 | 460 | 913/830 | P222LE-1 | 552/497 | 128 | 142 | 3630 | 3400×1430×1900 |
| 528GF1 | 528 | 480 | 953/866 | P222LE | 574/532 | 128 | 142 | 3800 | 3400×1430×1900 |
| 552GF1 | 552 | 503 | 996/907 | P222LE-S | 603/552 | 128 | 142 | 3910 | 3400×1430×1900 |
| 600GF1 | 600 | 550 | 1083/992 | P222LE-S-II | 649/591 | 128 | 142 | 4000 | 3400×1430×1900 |
Guangdong Salpower Equipment Co., Ltd. is a leading generator manufacturer with a long history in Guangdong Province, and it is a large-scale enterprise specializing in R & D, production, sale and service of diesel generating set. It owns modern production equipments and high-quality scientific and R & D personnel, strong technical force, global fittings and unit purchase system and network.
With great advantage of diesel generating set R & D and high-quality after-sale service, Salpower Company has obtained fine market reputation. In this industry, it has been an important with such domestic and international manufacturers as Cummins, Perkins, Shanghai Diesel Engineering Limited, Weichai Power, Yuchai Power, Wuxi Power, Jinan Diesel Company, Stamford, Guangzhou Engga, Shanghai Qianghui, etc. Power of generating set manufactured by Salpower ranges from 30KW to 2000KW, it can cove generating sets for general purpose and various purposes. The products are extensively utilized for telecommunication system, express highway, real estate, construction project, finance system, hotel, railway, large shopping mall, hospital, factory, school, residence and other important fields. In domestic market, this Company owns a great deal of excellent clients. In addition, Salpower also tries to exploit the international market. Presently, its products have been well sold to The South America, Middle East, Africa and so on. What's more, all the products from Salpower are strictly complied with ISO9001&ISO14000, and other certifications, including SGS, CE, etc.
With the principle of "quality for survival, credit for development", Salpower is willing to provide high-quality product and perfect service to you, and is ready to cooperate with you for creating brilliant future together.
We cordially welcome vast new and frequent clients to give us call and letter for enquiry and cooperation!
A call for us, satisfaction to you!
