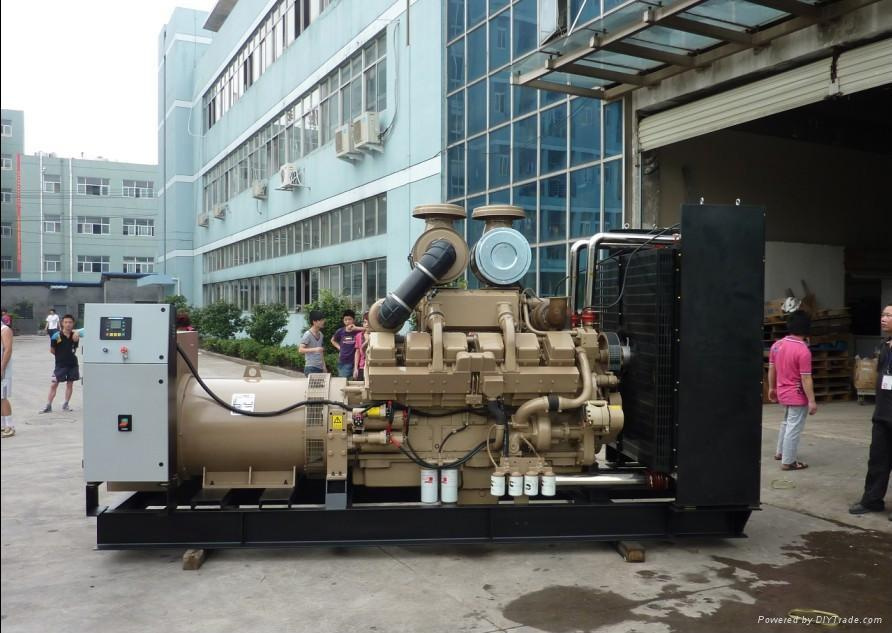

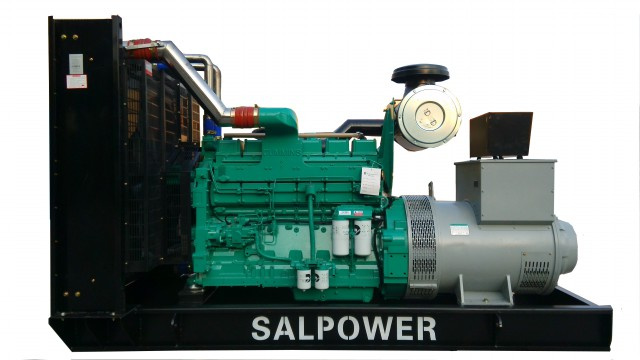

1000kw Silent Diesel Generator with Cummins Engine (KTA50-G3)

1000kw Silent Diesel Generator with Cummins Engine (KTA50-G3)
Price: US $ 170000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
1000kw Silent Generator and Open Type Diesel Generator with Cummins Engine (KTA50-G3)

                            Cummins   Diesel    Generator   set
   ManufactureGuangdong Salpower Equipment CO,.LTD
   Genset  Model   SALC- 1100
   Prime    Power     (50Hz/60Hz)                                                  1000KW/ 1125KVA
  Standby  Power    (50Hz/60Hz)                                                  1100KW/ 1250KVA
  Size and Weight
  Open Type Overall Size:4500mm*1900mm*2450mm
  Weight:    9500kg
   Standard Configuration
   Engine(DCEC Cummins( KTA50-G3)
   Radiator 50OC max, fans are driven by belt, with safety guard
   24V charge alternator
   Alternator: single bearing alternator IP23, insulation class H/H
   Dry type air filter, fuel filter, oil filter
   Main line circuit breaker
   Standard control panel
   Two12V batteries, rack and cable
   Muffler and Bellows and other accessories
   User manual product certification
      Technical Parameters
   Gen-set
   Steady voltage adjustment rate    (%)     ≤±1
   Voltage fluctuation rate           (%)     ≤±0.5
   Transient voltage adjustment rate  (%)     +20~-15
   Voltage stability time             (s)     ≤1
   Steady frequency adjustment time (%)     ≤±1
   Frequency fluctuation rate        (%)     ≤±0.5
   Transient frequency adjustment rate(%)     +10~-7
   Frequency stability time           (s)     ≤3
   Waveform distortion rate          (%)     ≤5
   Altitude                          (m)     ≤1000
   Relative air humidity               (%)     ≤90
  Engine
  Brand    Cummins
  Origin    Hubei
  Model    KTA50-G3
  Primary\Standby power  (KVA)        1125/1250
  Type   4Stroke,In-LineType, 12 Cylinder
  Start model    24VDC electric start
  Bore X Stroke          (mm)    159x159
  Type of Governor    Electric(E)
  Compression Ratio

  Displacement   (L)      50.3
Fuel consumption @100% load  196g/kw. h
  Cooling
  system
Cooling style    Closed circulating water cooling
Cooling system capacity    (L)   9.9
AC Alternator
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Engga,
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Control System
* Standard matching brands:Smartgen,Deep sea and ComAp
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional).
Product description:
Genset with ISO9001/ISO14001,with Cummins engine KTA38-G2  equipped with Alternator Stanford/ ENGGA/ Marathon, the control panel is /Deep sea/ Smartgen /ComAp.  The frequency is 50HZ, the rated speed is 1500rpm/min or 60HZ/1800rpm/min, the insulation class is  IP23/H, self-exciting, brushless and the altitude is about 1000m, three-phase four wire.  Open size/  Super silent DG set, the noise level never exceed 70db at a distance of 7m.

Additional Info.
Packing:Plywood Case, Customized
Origin:China
HS Code:8502131000
Production Capacity:300PCS/Month

Instruction and Quality warranty
Available in the following voltages:415/240,380/220
Prime Power (PRP):Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqv ISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Quality warranty:Guangdong Salpower Equipment Co.,LTD provides a full line of brand new and high quality products. Each and every unit is strictly tested.
Warranty is according to our standard conditions:12 months, counted on the day sold to the first buyer; One year after installation; 1000 running hours (accumulated); subject to the earlier one.

Prod Model: SALC-1100-32
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Brand: Cummins
Rated Power:Prime/Standby (Kw): 1000/1100
Rated Power : Prime/Standby (kVA): 1250/1375
Rated Current (Prime )(a): 1440
Outline Size (Mm): 5000*2000*2240
Weight (Kg): 7500
Diesel Engine Type: Kta50-G3
Cylinder Q'ty: 12
Bore*Stroke (Mm): 159*159
Displacement (L): 50.3
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Speed: 1500rpm/1800rpm
