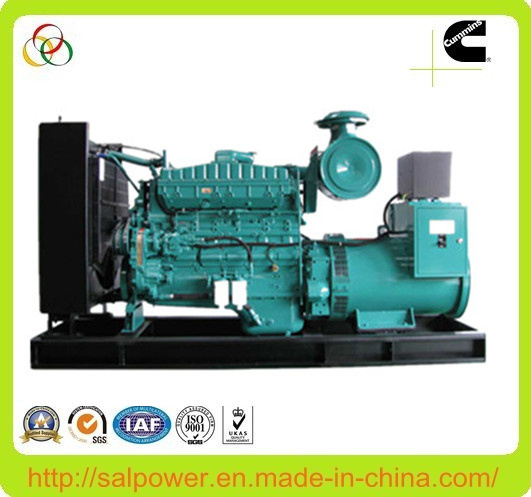

200kw/250kVA 50Hz Open Type Generator with Cummins Engine (NT855-G1A)
| Price: |
US $ 20830/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
200KW/250KVA 50HZ Cummins Open Type Fuel Generating Set (NT855-G1A)
| Manufacture | Guangdong Salpower Equipment CO,.LTD |
| Genset Model | SALC- 220 |
Prime Power (50Hz/60Hz) 200KW/250KVA
Standby Power (50Hz/60Hz) 220KW/275KVA |
| Size and Weight |
| Open Type Overall Size: | 3000mm*1050mm*1750mm |
| Weight: | 2700kg |
| Standard Configuration |
| Engine(DCEC Cummins( NT855-G1A) |
| Radiator 50OC max, fans are driven by belt, with safety guard |
| 24V charge alternator |
| Alternator: single bearing alternator IP23, insulation class H/H |
| Dry type air filter, fuel filter, oil filter |
| Main line circuit breaker |
| Standard control panel |
| Two12V batteries, rack and cable |
| Muffler and Bellows and other accessories |
| User manual product certification |
| Technical Parameters |
| Gen-set |
| Steady voltage adjustment rate (%) | ≤±1 |
| Voltage fluctuation rate (%) | ≤±0.5 |
| Transient voltage adjustment rate (%) | +20~-15 |
| Voltage stability time (s) | ≤1 |
| Steady frequency adjustment time (%) | ≤±1 |
| Frequency fluctuation rate (%) | ≤±0.5 |
| Transient frequency adjustment rate(%) | +10~-7 |
| Frequency stability time (s) | ≤3 |
| Waveform distortion rate (%) | ≤5 |
| Altitude (m) | ≤1000 |
| Relative air humidity (%) | ≤90 |
| Engine |
| Brand | Cummins |
| Origin | Hubei |
| Model | NT855-G1A |
| Primary\Standby power (KVA) | 250/275 |
| Type | 4Stroke,In-LineType, 6 Cylinder |
| Start model | 24VDC electric start |
| Bore X Stroke (mm) | 140x152 |
| Type of Governor | Electric(E) |
| Compression Ratio | 17.5 |
| Displacement (L) | 14 |
| Fuel consumption @100% load | 201g/kw. h |
Cooling
system | Cooling style | Closed circulating water cooling |
| Cooling system capacity (L) | 9.9 |
AC Alternator
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Engga,
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Control System
* Standard matching brands:Smartgen,Deep sea and ComAp
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional).
Product description:
Genset with ISO9001/ISO14001,with Cummins engine NT855-G1A equipped with Alternator Stanford/ ENGGA/ Marathon, the control panel is /Deep sea/ Smartgen /ComAp. The frequency is 50HZ, the rated speed is 1500rpm/min or 60HZ/1800rpm/min, the insulation class is IP23/H, self-exciting, brushless and the altitude is about 1000m, three-phase four wire. Open size/ Super silent DG set, the noise level never exceed 70db at a distance of 7m.
| Prod Model: |
SALC-220-31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Brand: |
Cummins |
| Rated Power:Prime/Standby (Kw): |
200/220 |
| Rated Power : Prime/Standby (kVA): |
250/275 |
| Rated Current (Prime )(a): |
360 |
| Utline Size (Mm): |
3000*1050*1750 |
| Eight (Kg): |
2700 |
| Diesel Engine Type: |
Nt855-G1a |
| Cylinder Q'ty: |
6 |
| Bore*Stroke (Mm): |
140*152 |
| Displacement (L): |
14 |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Speed: |
1500rpm/1800rpm |
