Engine model are: 4BTA3.9-GM47, 6BT5.9-GM83, 6BTA5.9-GM100, 6CT8.3-GM115, 6CTA8.3-GM155, 6CT8.3-GM129, 6CTA8.3-GM155, NTA855-G1M/G2M/4M, KTA19-G2M/G3M/4M, KT38-GM/2M/5M.
We are the agent of cummins marine engine before and we have the excellent engineer in the marine engine.
Alternaor: Equipped with some famous brushless excitation alternators. (Marathon, Stamford, etc. )

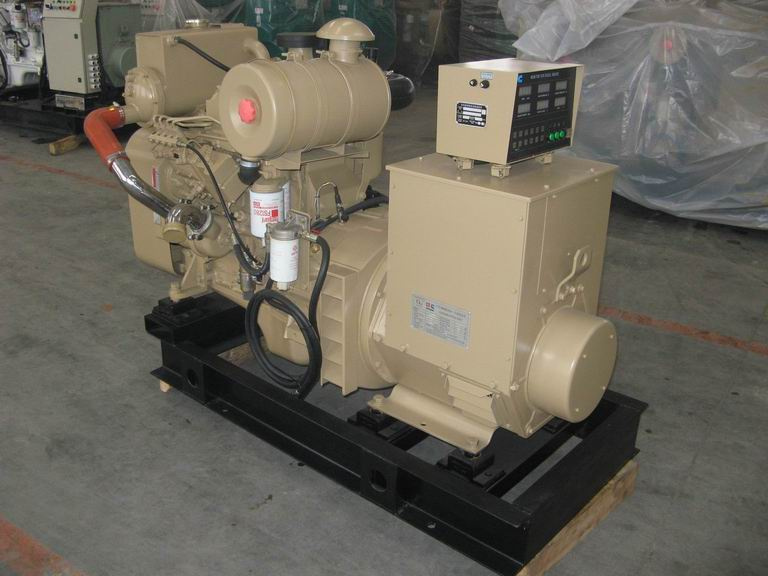

The marine diesel generator set has auto protective device, it can control and protect the water temperature, oil temperature, oil pressure, and the speed. It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation form of voltage, high efficiency, excellent reliability, long service life, etc. It can provide other Marine Classification Society Approval if needed.
Genset Model |
Prime Power
(KW/KVA) |
Engine Model |
Rated Voltage(V) |
Rated Frequency(Hz) |
Fuel Cons. (g/kwh) |
Dimensions (L*W* H) (mm) |
Weight (kg) |
40GF |
40 / 50 |
4BTA3.9-GM47 |
400 |
50 |
213 |
1800*770*1200 |
960 |
64GF |
64 / 80 |
6BT5.9-GM80 |
400 |
50 |
213 |
2380*770*1200 |
1600 |
80GF |
80 / 100 |
6CT8.3-GM115 |
400 |
50 |
213 |
2380*770*1300 |
1800 |
100GF |
100 / 125 |
6CT8.3-GM115 |
400 |
50 |
212 |
2280*820*1300 |
1800 |
120GF |
120 / 150 |
6CTA8.3-GM115 |
400 |
50 |
212 |
2280*820*1300 |
2000 |
150GF |
150 / 187.5 |
NT855-M |
400 |
50 |
210 |
3010*1000*1583 |
3000 |
200GF |
200 / 250 |
NTA855-D(M) |
400 |
50 |
210 |
3010*1000*1583 |
3100 |
250GF |
250 / 312.5 |
NTA855-D(M) |
400 |
50 |
210 |
3010*1000*1583 |
3200 |
300GF |
300 / 375 |
KTA19-D(M) |
400 |
50 |
208 |
3200*1050*2037 |
4500 |
400GF |
400?/ 500 |
KTA19-D(M) |
400 |
50 |
208 |
3200*1050*2037 |
4900 |
450GF |
450?/ 562.5 |
KTA19-D(M1) |
400 |
50 |
208 |
3200*1050*2037 |
4700 |
500GF |
500 / 625 |
KTA38-D(M) |
400 |
50 |
218 |
4100*1540*2433 |
8500 |
600GF |
600 / 750 |
KTA38-D(M) |
400 |
50 |
218 |
4100*1540*2433 |
8500 |
700GF |
700 / 875 |
KTA38-D(M1) |
400 |
50 |
218 |
4100*1540*2433 |
8600 |
800GF |
800 / 1000 |
KTA38-D(M) |
400 |
50 |
218 |
4400*1540*2433 |
8800 |
900GF |
900 / 1125 |
KTA50-D(M1) |
400 |
50 |
205 |
4700*1540*2433 |
9100 |
1000GF |
1000 / 1250 |
KTA50-D(M) |
400 |
50 |
205 |
4700*1540*2433 |
9100 |
100GF |
100 / 125 |
6BT5.9-D(M) |
450 |
60 |
212 |
2100*770*1210 |
1200 |
120GF |
120 / 150 |
6CT8.3-D(M) |
450 |
60 |
212 |
2100*770*1300 |
1400 |
160GF |
160 / 200 |
6CTA8.3-D(M) |
450 |
60 |
212 |
2100*770*1300 |
1500 |
240GF |
240 / 300 |
NTA855-G2(M) |
450 |
60 |
210 |
3010*1000*1583 |
3100 |
280GF |
280 / 350 |
NTA855-G2(M) |
450 |
60 |
210 |
3010*1000*1583 |
3200 |
350GF |
350?/ 437.5 |
KTA19-D(M) |
450 |
60 |
208 |
3200*1050*2037 |
4700 |
410GF |
410?/ 512.5 |
KTA19-D(M1) |
450 |
60 |
208 |
3200*1050*2037 |
4700 |
450GF |
450?/ 562.5 |
KTA19-D(M1) |
450 |
60 |
208 |
3200*1050*2037 |
4700 |
500GF |
500 / 625 |
KTA19-D(M) |
450 |
60 |
208 |
4100*1540*2433 |
8500 |
700GF |
700 / 875 |
KTA38-D(M) |
450 |
60 |
218 |
4100*1540*2433 |
8500 |
750GF |
750 / 937.5 |
KTA38-D(M) |
450 |
60 |
218 |
4100*1540*2433 |
8500 |
840GF |
840 / 1050 |
KTA38-D(M) |
450 |
60 |
218 |
4400*1540*2433 |
8800 |
890GF |
890 / 1113 |
KTA38-D(M1) |
450 |
60 |
218 |
4400*1540*2433 |
8800 |
1060GF |
1060 / 1325 |
KTA50-D(M1) |
450 |
60 |
205 |
4700*1540*2433 |
9100 |
1130GF |
1130 / 1413 |
KTA50-D(M1) |
450 |
60 |
205 |
4700*1540*2433 |
9100 |
