Home Generator Products 64kw Marine Diesel Generator Set (CCFJ64J)

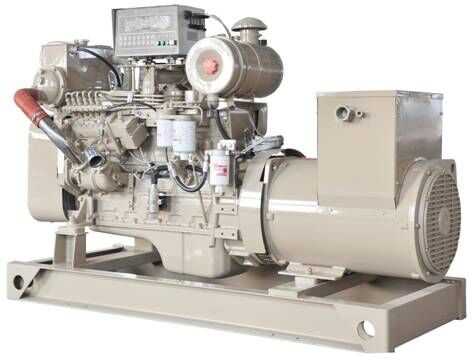

64kw Marine Diesel Generator Set (CCFJ64J)

64kw Marine Diesel Generator Set (CCFJ64J)
Price: US $ 12000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Engine model are: 4BTA3.9-GM47, 6BT5.9-GM83, 6BTA5.9-GM100, 6CT8.3-GM115, 6CTA8.3-GM155, 6CT8.3-GM129, 6CTA8.3-GM155, NTA855-G1M/G2M/4M, KTA19-G2M/G3M/4M, KT38-GM/2M/5M.

We are the agent of cummins marine engine before and we have the excellent engineer in the marine engine.

Alternaor: Equipped with some famous brushless excitation alternators. (Marathon, Stamford, etc. )

The marine diesel generator set has auto protective device, it can control and protect the water temperature, oil temperature, oil pressure, and the speed. It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation form of voltage, high efficiency, excellent reliability, long service life, etc. It can provide other Marine Classification Society Approval if needed.
Genset Model
Prime Power

Engine Model

Rated Voltage(V)

Rated Frequency(Hz)

Fuel Cons. (g/kwh)

Dimensions (L*W* H) (mm)

Weight (kg)
40GF40 / 504BTA3.9-GM47400502131800*770*1200960
64GF64 / 806BT5.9-GM80400502132380*770*12001600
80GF80 / 1006CT8.3-GM115400502132380*770*13001800
100GF100 / 1256CT8.3-GM115400502122280*820*13001800
120GF120 / 1506CTA8.3-GM115400502122280*820*13002000
150GF150 / 187.5NT855-M400502103010*1000*15833000
200GF200 / 250NTA855-D(M)400502103010*1000*15833100
250GF250 / 312.5NTA855-D(M)400502103010*1000*15833200
300GF300 / 375KTA19-D(M)400502083200*1050*20374500
400GF400?/ 500KTA19-D(M)400502083200*1050*20374900
450GF450?/ 562.5KTA19-D(M1)400502083200*1050*20374700
500GF500 / 625KTA38-D(M)400502184100*1540*24338500
600GF600 / 750KTA38-D(M)400502184100*1540*24338500
700GF700 / 875KTA38-D(M1)400502184100*1540*24338600
800GF800 / 1000KTA38-D(M)400502184400*1540*24338800
900GF900 / 1125KTA50-D(M1)400502054700*1540*24339100
1000GF1000 / 1250KTA50-D(M)400502054700*1540*24339100
100GF100 / 1256BT5.9-D(M)450602122100*770*12101200
120GF120 / 1506CT8.3-D(M)450602122100*770*13001400
160GF160 / 2006CTA8.3-D(M)450602122100*770*13001500
240GF240 / 300NTA855-G2(M)450602103010*1000*15833100
280GF280 / 350NTA855-G2(M)450602103010*1000*15833200
350GF350?/ 437.5KTA19-D(M)450602083200*1050*20374700
410GF410?/ 512.5KTA19-D(M1)450602083200*1050*20374700
450GF450?/ 562.5KTA19-D(M1)450602083200*1050*20374700
500GF500 / 625KTA19-D(M)450602084100*1540*24338500
700GF700 / 875KTA38-D(M)450602184100*1540*24338500
750GF750 / 937.5KTA38-D(M)450602184100*1540*24338500
840GF840 / 1050KTA38-D(M)450602184400*1540*24338800
890GF890 / 1113KTA38-D(M1)450602184400*1540*24338800
1060GF1060 / 1325KTA50-D(M1)450602054700*1540*24339100
1130GF1130 / 1413KTA50-D(M1)450602054700*1540*24339100
Prod Model: CCFJ64J
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: CCS, BV
Running Speed: 1500/1800rpm
Stroke: Four Stroke
Type: Basic Diesel Generator
Cooling Method: Water Cooling
Installation Method: Fixed
Output Type: AC Three Phase
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.

We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.

Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.

Our Goal: Customer-oriented service and quality products.

Our Tenet: Honest, Professional, and innovation-seeking.
