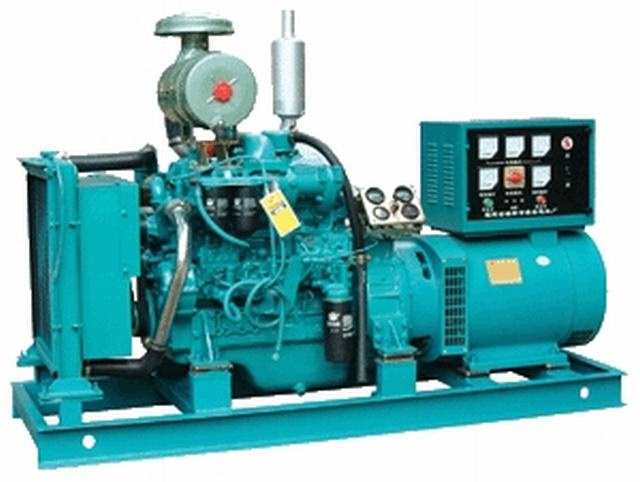

Cummins Marine Diesel Engines Generator

Merine Cummins Engine Generator Sets

High quality Cummins engine marine diesel generator sets/Cummins silent marine diesel engine generator sets/super silent diesel generator/open frame type diesel generator/50Hz diesel generator/60Hz diesel generator/single phase diesel generator/three phase diesel generator/

Scope of Supply:

1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator

Engine specification:

1.20kw-1000kw CUMMINS engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption

Alternator: Stamford

Option with: Marathon, Lorysomer,
A) three phase brushless generator, self-excited, 4-pole, single bearing
B) AVR self-regulated, voltage regulation rate ≤ ± 1%
C) IP23 protection grade
D) Class H insulation
E) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
F) Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof
Quarantee: The goods are under warranty against defects in materials and workmanship for a perild of 12 months or 1000 hours whichever come first from the date of delivery to the end user(except the damageable spare parts of genset caused by incorrect man-made operation), and that the aforementioned warranty for the same token is back up by the engine and alternator suppliers

Control system: It includes

1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

Warranty:

12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices

Similar products:

Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9kVA to 2000kVA
