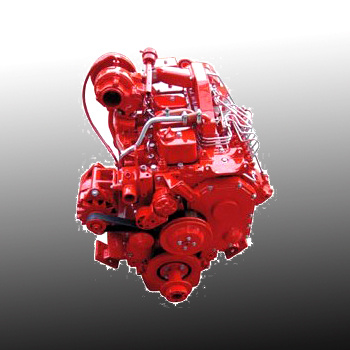

CUMMINS 6BT SERIESE DIESEL ENGINE FOR CONSTRUCTION APPLICATION
*High Fuel Efficiency:20% fewer oil consumption than other competitive products
*The Turbocharger With Wastegated Design:Optimizes operation across the torque curve resulting in excellent low-end torque.
*Compacted Yet Durable And Dependable Engine:6B series engine contains up tp 40& fewer parts than competitive engine in its class.This results in a better power to weight ration,aless chance of failure and lower repair cost.
*Advanced design and manufacturing;Made the engine delivers superior performance and lower cost than competitive engines.
*Excellent cold start performance:Optional assistant cold starter with improved 6.6KW starter and intake air heater.
*Excellent Performance and advantage:Adopt advanced design to achieve higher horsepower and lower weight,horsepower per liter reached 22.4KW/L.
General 6BT5.9-C130 6BT5.9-C135 6BT5.9-C135 6BT5.9-C135 6BT5.9-C135 6BT5.9-C145 6BT5.9-C150 6BT5.9-C150 6BT5.9-C150 6BT5.9-C155 6BT5.9-C170 6BT5.9-C175 6BT5.9-C180
Displacement 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L 5.9L
Bore 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm 102mm
Stroke 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm
Cylinders 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6
Technical Specification
Aspiration Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged&AftercooledTurbocharged&AftercooledTurbocharged&AftercooledTurbocharged&AftercooledTurbocharged&Aftercooled
Pump Type A A A A A A A A A A A AD AD AD AD AD
Governor RSV RSV RSV RSV RSV RSV RSV RSV RSV RSV RSV RSV RSV RSV RSV RSV
Weight Dry 432kg 432kg 432kg 432kg 432kg 432kg 432kg 432kg 432kg 432kg 432kg 432kg 443kg 443kg 443kg 443kg
Instand inertia of rotational part(withourt flywheel) 0.25kg.m² 0.25kg.m² 0.25kg.m² 0.25kg.m² 0.25kg.m² 0.25kg.m² 0.25kg.m² 0.25kg.m² 0.25kg.m²0.25kg.m²0.25kg.m²0.25kg.m²0.25kg.m²0.25kg.m²0.25kg.m² 0.25kg.m²
Center of gravity Distance From Front End of Cylinder Body 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm 391mm
Center of gravity Distance Above Crank Centre Line 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm 140mm
Performance Data
Rated Power 85kw/2000r/min 87kw/2200r/min 92kw/2400r/min 97kw/2200r/min 100kw/2000r/min 100kw/2000r/min 100kw/2000r/min 100kw/2200r/min 106kw/2100r/min 110kw/2300r/min 112kw/2500r/min 112kw/1800r/min 114kw/2000r/min 125kw/2300r/min 128kw/2100r/min 132kw/2500r/min
Peak Torque 430N.m/1500r/min430N.m/1500r/min430N.m/1500r/min560N.m/1500r/min570N.m/1500r/min570N.m/1500r/min590N.m/1500r/min560N.m/1500r/min580N.m/1500r/min560N.m/1500r/min565N.m/1500r/min630N.m/1500r/min630N.m/1500r/min630N.m/1500r/min680N.m/1500r/min630N.m/1500r/min
As one of the leading manufacturers/Exports specializing in making a wide variety of Diesel engine parts, such as crankshaft, camshaft, cylinder head, liner kit, piston kit, nozzle, plunger, delivery valve for Cummins, Deutz, Isuzu, Benz, Nissan, Hino, Catepiller. JNJ Industiral Co., Ltd. Has done an excellent job in upgrading the precision of our products over years since 2002.
We insist on providing our customers at home and overseas with high quality products and most competitive prices.
