PARAMETER:

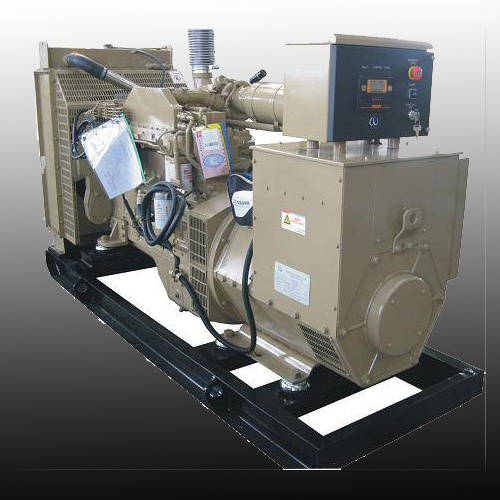

ENGINE: Cummins 4B series diesel generator set, Rated power range is from 24kW to 50KW, 50Hz/60Hz, 1500 rpm/1800rpm
Engine model Rated power (50HZ) Rated power(60HZ)
4B3.9-G1/G2 24kw 27KW
4BT3.9-G1/G2 36 KW 40KW
4BTA3.9-G2 50KW 60KW
Alternator:
1. Variety: Customer can choose under different specification: Differ output power, single phase or three phase, two pole or four pole, single surpport or double support, for mainland or marine, and customer also can choose suitable transition connector or coupler.
2. Control system: Auto-voltage regulator have wet- proof, salt-proof, vibration-isolation fuctions.
3. Excition system: Any choosed permanent magnet alternator can solely supply electricity for excition system.
4. Insulation and proof: All alternator have H grade insulation and standard bad wether protection functions.
Highly integrated control system:
Three working model for choose: Stopage, automatic and hand startup model
Main fuction: Genset start, stopage fuction, displaying genset three phase-voltage, current, engine water temperature, oil pressure, RPM and so on. And the governor is GAC governor.
Protection: When high water temperature, low oil pressure, over-speed, can automatically protect stopage, with the function of breakdown displaying.
Optional:
1. Sound-proof canopy.
2. Canopy with wheels.
3. Container type canopy
As one of the leading manufacturers/Exports specializing in making a wide variety of Diesel engine parts, such as crankshaft, camshaft, cylinder head, liner kit, piston kit, nozzle, plunger, delivery valve for Cummins, Deutz, Isuzu, Benz, Nissan, Hino, Catepiller. JNJ Industiral Co., Ltd. Has done an excellent job in upgrading the precision of our products over years since 2002.
We insist on providing our customers at home and overseas with high quality products and most competitive prices.
