Parameter:
1. Power range(Standby Power): 22kw to 1120kw.
2. Rating Voltage: 380/220V(adjustable)
3. Frequency: 50HZ/60HZ.
4. Mode of connection: 3 phases 4 lines.
5. Power factor: 0.8(lagging).
6. Protection standard: IP21-23.
7. Insulation grade: H.
8. Engine Model: Cummins
9. Alternator: Marathon, Stamford, Faraday
10. Control system: KC600 or KC700(Self produce); Deepsea5110/520; SPG-120(ITALY)

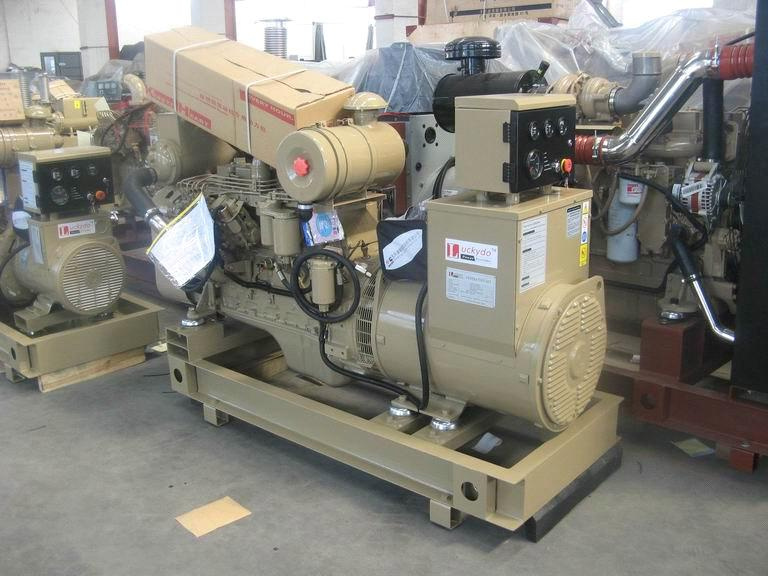

Generator set basic characters:
Cummins engine
1) Heavy loads endurable, four-stroke industrial using engine
2) Excellent transient response
3) Fuel system: Elctrical governor or RSV governor(can be choosed by customer ) PT fuel injection pump.
4) Start feature: Without aiding start, -12 start; With aid starting, -35 Starting.
5) Oil consumption: Low oil strcture, compact, minimum spare parts, light weitht.
Alternator:
1. Variety: Customer can choose under different specification: Differ output power, single phase or three phase, two pole or four pole, single surpport or double support, for mainland or marine, and customer also can choose suitable transition connector or coupler. 2. Control system: Auto-voltage regulator have wet- proof, salt-proof, vibration-isolation fuctions.
3. Excition system: Any choosed permanent magnet alternator can solely supply electricity for excition system.
4. Insulation and proof: All alternator have H grade insulation and standard bad wether protection functions.
Highly integrated control system:
Three working model for choose: Stopage, automatic and hand startup model
Main fuction: Genset start, stopage fuction, displaying genset three phase-voltage, current, engine water temperature, oil pressure, RPM and so on. And the governor is GAC governor.
Protection: When high water temperature, low oil pressure, over-speed, can automatically protect stopage, with the function of breakdown displaying.
Optional:
1. Sound-proof canopy.
2. Canopy with wheels.
3. Container type canopy.
