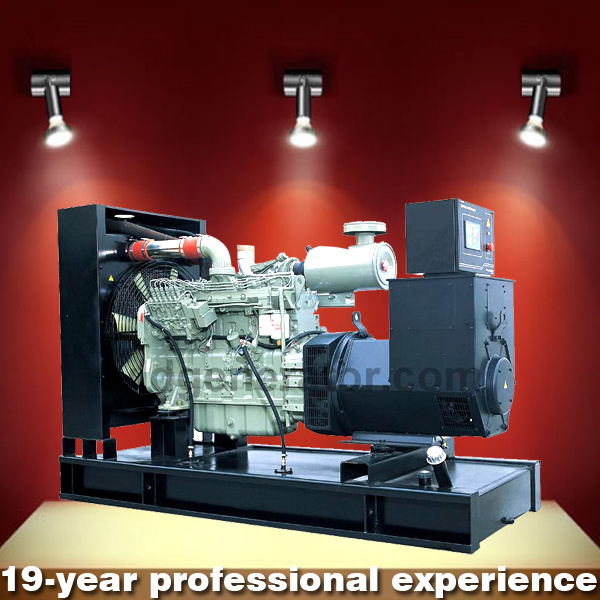

250kVA Cummins Diesel power Generators Parameter:
-Genset Specification:
-Genset Modle: DC200
-Dimension: 2600× 1000× 1500mm
-Weight: 2150kg
-Prime Power: 200kw/250kVA
-Standby Power: 220kw/275kVA
-Rated current: 360A
-Power factor (Cos Phi): 0.8
-Altitude: ≤ 1000 m
-Base Fuel Tank: Eight hours(Standard)
-Standards: JB/T 1403-1999, GB/T 12501-1990
Engine Specification:
-Engine model: 6LTAA8.9-G2
-Type of Governor: Electronic governor
-Type: 6 cyclinder in line
-Bore*Stroke: 114× 135mm
-Compression ratio: 17: 1
-Voltage regulation: ± 0.5%
-Fuel consumption rate: ≤ 207g/kw. H
Alternator Specification:
-Brand: Stamford, Simens, Marathon, Farady at option
-Voltage control: AVR model
-Number of phase: 3
-Exciter type: Brushless excitation
-Insulation class: H
-protection class: IP22/IP23
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
As a big generator OEM factory with 19-year export experience. We can provide, Diesel Generator set, Portable Generator, Silent Generator, Electric Generator, Natural Gas Generator etc. Under the brands of CUMMINS, DEUZT, CAT, SHANGCHAI(SEDC), YUCHAI etc. With power ranging 0.65-3000kVA. AC alternator under the brand of STAMFORD, MARATHON, FARADAY etc. We also offer spare parts for SFH, SEDC and HINO.
The supplied list of Cummins diesel generators |
Genset model |
Prime power |
Standby power |
Fuel cons. 100% (g/kw.h) |
Engine model |
Cyl. |
Bore/ Stroke |
Dimension |
Weight |
KW |
KVA |
KW |
KVA |
mm |
LxWxH(mm) |
kg |
DC20 |
20 |
25 |
22 |
28 |
≤209 |
4B3.9-G2 |
4 |
102/120 |
1720x740x1120 |
780 |
DC30 |
30 |
38 |
33 |
41 |
≤209 |
4BT3.9-G2 |
4 |
102/120 |
1900x820x1480 |
850 |
DC50S |
50 |
63 |
55 |
69 |
≤210 |
4BTA3.9-G2 |
4 |
102/120 |
1720x850x1400 |
1050 |
DC90 |
90 |
113 |
99 |
124 |
≤210 |
6BT5.9-G2 |
6 |
102/120 |
2050x850x1500 |
1350 |
DC100 |
100 |
125 |
110 |
138 |
≤210 |
6BTA5.9-G2 |
6 |
102/120 |
2050x850x1400 |
1380 |
DC120 |
120 |
150 |
132 |
165 |
≤209 |
6BTAA5.9-G2 |
6 |
102/120 |
2150x850x1500 |
1485 |
DC150 |
150 |
188 |
165 |
206 |
≤207 |
6CTA8.3-G2 |
6 |
114/135 |
2400x1000x1500 |
1880 |
DC180 |
180 |
225 |
198 |
248 |
≤207 |
6CTAA8.3-G2 |
6 |
114/135 |
2500x1000x1500 |
1950 |
DC200 |
200 |
250 |
220 |
275 |
≤205 |
6LTAA8.9-G2 |
6 |
114/145 |
2600x1000x1500 |
2150 |
DC200A |
200 |
250 |
220 |
275 |
≤192 |
NT885-GA |
6L |
140/152 |
2890x1100x1652 |
2795 |
DC200B |
200 |
250 |
220 |
275 |
≤200 |
MTA11-G2A |
6L |
125/147 |
2995x1100x1652 |
2975 |
DC250 |
250 |
375 |
330 |
413 |
≤195 |
NTA855-G1A |
6L |
240/152 |
2995x1100x1652 |
3050 |
DC350 |
350 |
438 |
385 |
481 |
≤188 |
MTAA11-G3 |
6L |
125/147 |
2995x1100x1652 |
3050 |
DC360 |
360 |
450 |
396 |
495 |
≤200 |
NTA855-G2A |
6L |
140/152 |
3090x1100x1652 |
3200 |
DC400 |
400 |
500 |
440 |
550 |
≤205 |
NTAA855-G7A |
6L |
140/152 |
3160x1100x1700 |
3255 |
DC450 |
450 |
563 |
500 |
625 |
≤207 |
KTA19-G3 |
6L |
159/159 |
3160x1100x1700 |
3257 |
DC500A |
500 |
625 |
550 |
568 |
≤207 |
KTA19-G4 |
6L |
159/159 |
3560x1345x1965 |
4100 |
DC500B |
500 |
625 |
550 |
688 |
≤207 |
KTAA19-G5 |
6L |
159/159 |
3560x1345x1965 |
4165 |
DC600 |
600 |
750 |
660 |
825 |
≤206 |
KTAA19-G6A |
6L |
159/159 |
3560x1345x1965 |
4200 |
DC650 |
650 |
813 |
715 |
894 |
≤206 |
KTAA19-G6A |
6L |
159/159 |
3560x1345x1965 |
4305 |
DC700 |
700 |
875 |
770 |
963 |
≤216 |
KTA38-G |
12V |
159/159 |
3580x1538x1965 |
4600 |
DC800 |
800 |
1000 |
880 |
1100 |
≤216 |
KTA38-G2 |
12V |
159/159 |
3580x1538x1965 |
4650 |
DC850 |
850 |
1063 |
935 |
1169 |
≤203 |
KTA38-G2A |
12V |
159/159 |
3650x1638x2040 |
4685 |
DC900 |
900 |
1125 |
990 |
1238 |
≤205 |
KTA38-G5 |
12V |
159/159 |
4450x1638x2040 |
7200 |
DC1000 |
1000 |
1250 |
1100 |
1375 |
≤202 |
KTAA38-G9A |
12V |
159/159 |
5560x1900x2300 |
11000 |
