Cummins electric power generators specification:
Cummins-As the world's largest independent engine manufacturer, Cummins Inc. was founded in 1919 and headquartered in Columbus, USA. Its product line includes diesel and alternative fuel engines. Cummins provides services to clients through its over 500 distribution agencies in 190 countries and territories with the 5200 dealers.
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
Other products of generator system specification:
As a big generator OEM factory with 19-year export experience. We can pupply Diesel Generator set, Mobile Generator, Electric Generator, Natural Gas Generator under the famous brand of CUMMINS, DEUZT, CATERPILLAR, SHANGCHAI(SEDC), YUCHAI, with power ranging 0.65-3000kVA; AC alternator under the brand of STAMFORD, MARATHON, FARADAY and Siemens. We also offer spare parts for SFH, SEDC and HINO.
Hundreds in stock for immediate delivery.
|

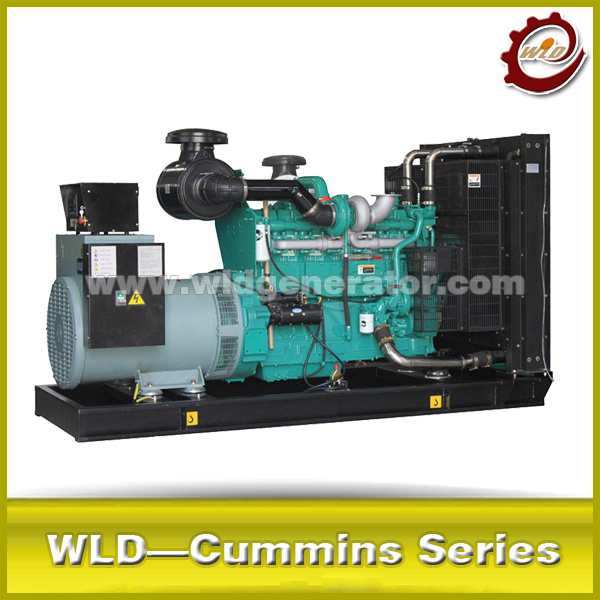

600kw/750kva Cummins diesel generator Specification : |
|
Genset Modle |
DC600 |
|
Dimension(mm) |
3560*1345*1965 |
|
Weight(kg) |
4305 |
|
Prime Power(kw/kva) |
600/750 |
|
Standby Power(kw/kva) |
660/825 |
|
Rated current (A) |
1080 |
|
Powerfactor(CosPhi) |
0.8 |
|
Altitude |
≤1000m |
|
Base Fuel Tank |
Eight hours(Standard) |
|
Engine Features: |
|
Engine model |
KTA38-G2 |
|
Type of Governor |
Electronic governor |
|
Type |
6 cyclinder in line |
|
Bore*Stroke(mm) |
159*159 |
|
Compression ratio" |
17.3:1 |
|
Voltageregulation |
±0.5% |
|
fuel consumption rate(g/kw.h) |
≤206g/kw.h |
|
Alternator Features: |
|
brand |
Stamford, Simens, Marathon, Farady at option |
|
Voltage control |
AVR |
|
Numberofphase |
3 |
|
Overspeed |
2250RPM |
|
Excitertype |
AREP |
|
Insulation class |
H |
|
protection class |
IP22/IP23 |
|
Totalharmonics (TGH/THC) |
< 3.5 % |
|
Waveform NEMA = TIF |
<50 |
|
Waveform I.E.C. = THF |
<2% |
|
Bearing |
single |
|
Coupling |
Direct |
