As a big generator OEM factory with 19-year export experience. We can provide Diesel Generator, Trailer Mounted Generator, Electric Generator, Natural Gas Generator under the famous brand of CUMMINS, DEUZT, CATERPILLAR, SHANGCHAI(SEDC), YUCHAI, with power ranging 0.65-3000kVA; AC alternator under the brand of STAMFORD, MARATHON, FARADAY and Siemens. We also offer spare parts for SFH, SEDC and HINO.
Hundreds in stock for immediate delivery.
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:

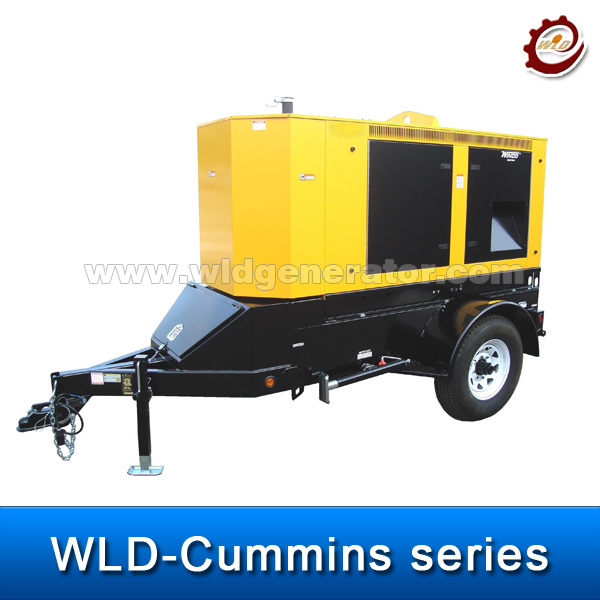

- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
100kw/125kva Cummins diesel generator Specification : |
Genset Modle |
DC100 |
Dimension(mm) |
2050*850*1500 |
Weight(kg) |
1380 |
Prime Power(kw/kva) |
100/125 |
Standby Power(kw/kva) |
110/138 |
Rated current (A) |
180 |
Powerfactor(CosPhi) |
0.8 |
Altitude |
≤1000m |
Base Fuel Tank |
Eight hours(Standard) |
Engine Features: |
Engine model |
6BTA5.9-G2 |
Type of Governor |
Electronic governor |
Type |
4 cyclinder in line |
Bore*Stroke(mm) |
102*120 |
Compression ratio" |
17.:1 |
Voltageregulation |
±0.5% |
fuel consumption rate(g/kw.h) |
≤210g/kw.h |
Alternator Features: |
brand |
Stamford, Simens, Marathon, Farady at option |
Voltage control |
AVR |
Numberofphase |
3 |
Overspeed |
2250RPM |
Excitertype |
AREP |
Insulation class |
H |
protection class |
IP22/IP23 |
Totalharmonics (TGH/THC) |
< 3.5 % |
Waveform NEMA = TIF |
<50 |
Waveform I.E.C. = THF |
<2% |
Bearing |
single |
Coupling |
Direct |
