Tabular Turbine

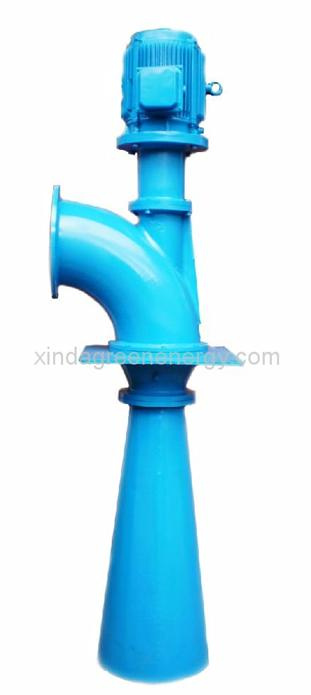

A mini extension shaft tabular turbine is made of water chamber, runner, distributor and draft tube, which suits to low water head and large water flow, and capacity from 0.8Kw to 30Kw.
| No | Generator Model | Fall | Flow | permanent magnet alternator | Speed | Pipe diameter of assembly | Remark |
|
| (m) | L/S | (w) | (r/min) | (mm) |
|
| 1 | LS-LZ-13-1.5KW | 5 | 60 | 1500 | 1500 | 250 | Vertical shaft extension tubular turbine |
| 2 | LS-LZ-12-3KW | 11 | 45 | 3000 | 1500 | 150 | Vertical shaft extension tubular turbine |
| 3 | LS-LZ-20-3KW | 4 | 136 | 3000 | 1000 | 250 | Vertical shaft extension tubular turbine |
| 4 | LS-LZ-20-5KW | 6 | 151 | 5000 | 1500 | 300 | Vertical shaft extension tubular turbine |
| 5 | LS-LZ-20-6KW | 7 | 156 | 6000 | 1500 | 300 | Vertical shaft extension tubular turbine |
| 6 | LS-LZ-20-8KW | 9 | 161 | 8000 | 1500 | 300 | Vertical shaft extension tubular turbine |
| 7 | LS-LZ-20-10KW | 11 | 165 | 10000 | 1500 | 300 | Vertical shaft extension tubular turbine |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
