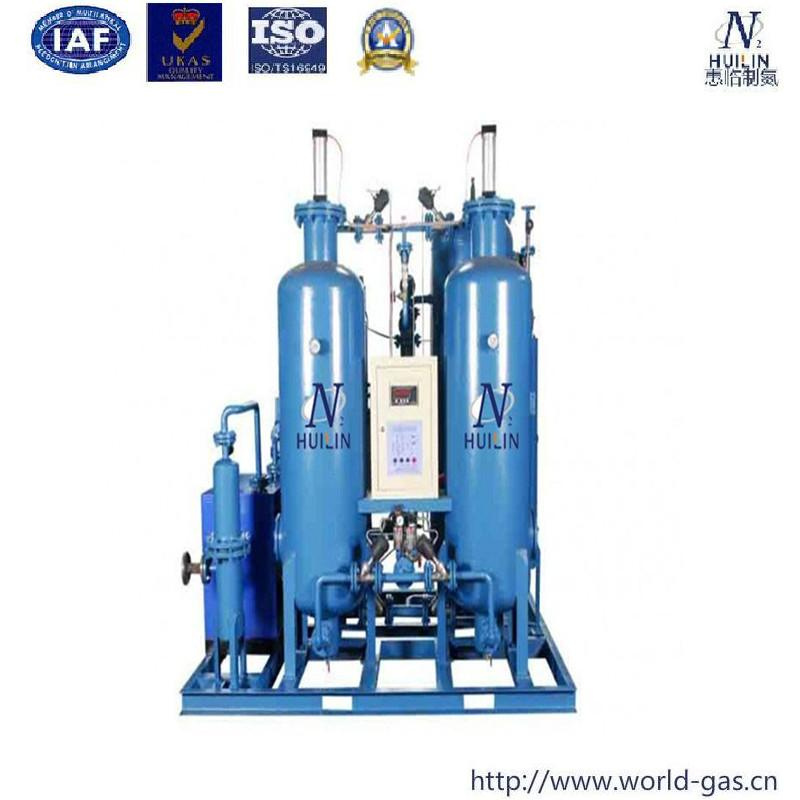

HL-WG-STD Nitrogen Generator
Principles
It uses carbon molecular sieve as sorbent, produces nitrogen by making use of the PSA principle. Under certain pressure, carbon molecular sieve has different oxygen/nitrogen adsorption capacity, i.e. much more oxygen adsorption capacity than nitrogen adsorption capacity.PLC controls pneumatic valve open/close to realize two towers alternate adsorption and desorption as per pressure change, carries out oxygen/nitrogen separation and produces nitrogen with desired purity.
Characteristics
. High purity, and the purity of N2 could be regulated between 95% to 99.999% according as user's need;
.High efficiency, low energy consumption of compressed air;
.Standard models, nitrogen generator could be parallel for additional nitrogen output;
.Low dew point, dew point of product ≤ -40 °C to ensure the quality of welding;
.Available frame, appearance clean and easy cleaning management to meet the high cleanliness requirement of electronics industry.
Applications
1. Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing ,etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material,copper process, metallic mesh, galvanized wire, semiconductor, etc.
2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
3. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.
Universal nitrogen generator usage
1. Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing ,etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material,copper process, metallic mesh, galvanized wire, semiconductor, etc.
2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
3. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.
Why Choose HUILIN Nitrogen Generator?
1.Convenient to install
2.More economic than other nitrogen supplying methods
3.The macaronis design realizes the automatic running
4. Peak value / the security system of the trouble
5.The high-quality components and parts are the reliable assurance of steady operation
6. Nitrogen content shows in succession, equipping the transfinite automatic alarm system
7.The high-quality carbon molecular sieve
8.The advanced loading technology guarantees the service life of equipments
9.The automatic alarm system for sinking of the carbon molecule sieve
10.The unqualified nitrogen automatic emptying system
11.Differential pressure indication, concentrating blow down system
12.The unique inter-circle switching techniques' of system
Certificates
Model
| N2 Purity (%) | N2 Output (Nm3/hr) | N2 Pressure
| Dew Point |
| WG-STD97 | 97 | 5-3000 | Input Pressure:
-0.2Mpa
| ≤-40 o C |
| WG-STD98 | 98 | 4-2500 |
| WG-STD99 | 99 | 3-2100 |
| WG-STD295 | 99.5 | 2-1800 |
| WG-STD39 | 99.9 | 1.5-1300 |
| WG-STD49 | 99.99 | 1-800 |
| WG-STD495 | 99.995 | 1-750 |
| WG-STD59 | 99.999 | 0.5-500 |
| WG-STD595 | 99.9995 | 0.5-400 |
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.
In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.
Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
