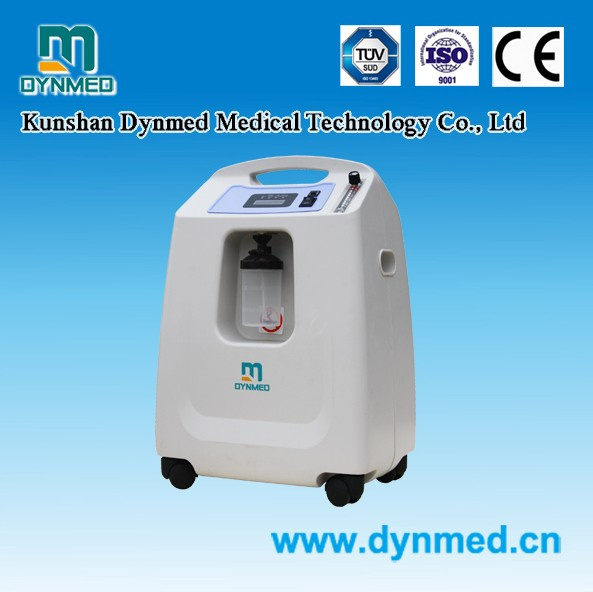

CE approved oxygen concentrator DO2-5AM is the model which can produce average 93% purity oxygen to meet big flow requirements of hospital, homecare, skincare centre and customised for Laboratory, Industrial, SPA, Beauty, etc. It can stably work in 24 hours a day, always maintain oxygen purity at average 93% at 5L/min flow, and in future, it only needs few maintenance of the main machine among its whole lifetime. Users do not need to open the machine shell to attain its filters replacement, this is also one of the best sellingpoints in Dynmed products.
Highlights of Oxygen Concentrator DO2-5AM:
> > 24 hours working continuously
> > AVG oxygen purity: 95%
> > Low sound level: Less than 42dB (A)
> > Net weight: Only 15.9kg
> > Strong ABS shell: Anti-aging, allows max 200kg stand upon the machine.
> > 1 year warranty for each model.
Detail Specifications:
Oxygen flow: 1--5 LPM
Oxygen purity: 93%± 3%
Operating temp: 5° C--40° C
Operation noise(dB): < 42dB(A)
Net weight: 35lbs (15.9 kg)
Power Supply: AC 220V± 22V, 50Hz or 110V± 10V /60Hz
Power Consumption: < 320 (VA)
Output pressure: 58.6± 6KPa
Equip. Classification: Class II Type B
Dimensions(L× W× H): 43 cm x 32 cm x 62 cm
| No. | Item | Rating |
| 1. | Delivery Rate(Lower delivery rates available for low application) (@ nominal outlet pressures of zero and 7 kPa) | 1 to 5 LPM |
| 2. | Outlet Pressure | 8.5± 0.5psi ( 58.6 kpa ) |
| 3. | Electrical Rating | 230V, 50 Hz, 1.4A (Max.)320W |
| 4. | Oxygen Percentage | 1~5 LPM 93%±3% |
| 5. | Operating Environment Range | Temperature 5 to 40centrigrade,
Humidity ≤80% Atmospheric pressure12.5psi~15.4psi (86kPa~106 kPa)
|
| 6. | Operating Altitude
(tested at 21°C only)
0-2000 M (0-6561ft)
2000-4000 M (6561-13123 ft) |
Across the voltagerange:
No degradation of performance
Not recommended/Not tested |
| 7. | The visible" oxygen "indicator will activate at the following level (suitable for DO2-5AM, DO2-8AM, DO2-10AM) | >85%±2% the green "normal oxygen" light will activate;
<85%±2% the yellow "low oxygen" light will activate;
<82%±2% the red "service required" light will activate |
| 8. | Pressure Relief Valve | 40 psi±5 psi (276 kPa±34.5 kPa) |
| 9. | Weight | 35 lbs. (15.9kilograms) |
| 10. | Sound Level ( ISO 8359:1996 from front ) | <48db(A) |
| 11. | Dimensions | 24.4"H x 16.9"W x 12.6"D(62x 43x 32cm) |
| 12. | Operating System | Time Cycle / Pressure Swing |
| 13. | Storage Conditions | Temperature -20 to 55 centrigrade
Humidity ≤90%
Atmospheric pressure12.5psi~15.4psi (86kPa~106 kPa) |
| 14. | Equipment Class and Type | The type of protect against electric shock: Class II
The degree of protect against electric shock: TYPE B Applied part |
