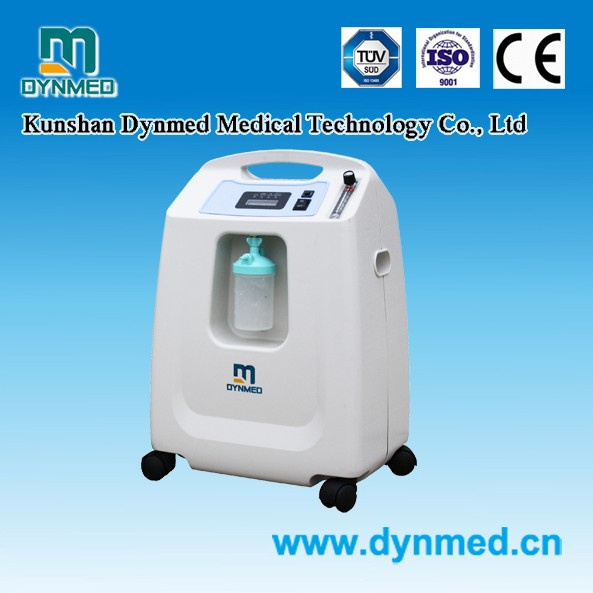

Mobile oxygen concentrator generator provider DO2-5AH is the model which can produce average 93% purity oxygen to meet big flow requirements of hospital, home, Skincare centre use and etc. It can stably work in 24 hours a day and needs few maintenance of the main machine among its whole lifetime. Users do not need to open the machine shell to attain filters replacement, this is also one of the best sellingpoints in Dynmed products.
Highlights of Oxygen Concentrator DO2-5AH:
> > 24 hours work continously, 10, 000 hours lifetime
> > AVG oxygen purity: 93%
> > Low sound level: Less than 45dB (A)
> > Net weight: Only 15.9kg
> > Strong ABS shell: Anti-aging, fashion style design.
> > 1 year warranty for each model. 5 years warraty for each compressor
No. | Item | Rating |
1. | Delivery Rate(Lower delivery rates available for low application) (@ nominal outlet pressures of zero and 7 kPa) | 1 to 5 LPM |
2. | Outlet Pressure | 8.5± 0.5psi ( 58.6 kpa ) |
3. | Electrical Rating | 230V, 50 Hz, 1.4A (Max.)320W |
4. | Oxygen Percentage | 1~5 LPM 93%±3% |
5. | Operating Environment Range | Temperature 5 to 40centrigrade, Humidity ≤80% Atmospheric pressure12.5psi~15.4psi (86kPa~106 kPa) |
6. | Operating Altitude (tested at 21°C only) 0-2000 M (0-6561ft) 2000-4000 M (6561-13123 ft) | Across the voltagerange: No degradation of performance Not recommended/Not tested |
7. | The visible" oxygen "indicator will activate at the following level (suitable for DO2-5AM, DO2-8AM, DO2-10AM) | >85%±2% the green "normal oxygen" light will activate; <85%±2% the yellow "low oxygen" light will activate; <82%±2% the red "service required" light will activate |
8. | Pressure Relief Valve | 40 psi±5 psi (276 kPa±34.5 kPa) |
9. | Weight | 35 lbs. (15.9kilograms) |
10. | Sound Level ( ISO 8359:1996 from front ) | <48db(A) |
11. | Dimensions | 24.4"H x 16.9"W x 12.6"D(62x 43x 32cm) |
12. | Operating System | Time Cycle / Pressure Swing |
13. | Storage Conditions | Temperature -20 to 55 centrigrade Humidity ≤90% Atmospheric pressure12.5psi~15.4psi (86kPa~106 kPa) |
14. | Equipment Class and Type | The type of protect against electric shock: Class II The degree of protect against electric shock: TYPE B Applied part |
Dynmed Medical Technology Co., Ltd, a subsidiary of Dynamic Group, is a high-tech enterprise specializing in R&D, manufacturing and sales of medical and healthcare equipments.
Dynmed as one of the world's leading medical equipment manufacturers, its products range in oxygen concentrator, nebulizer, suction unit, digital thermometer, blood pressure monitor, and etc, which can be widely used in medical treatment, home care, outdoor and other areas.
Dynmed, most items attain ISO9001, ISO13485 as well obtain some famous certificates, such as CE and FDA. All products in energy saving, environmental protections, performance stability have reached the international advanced level.
Dynmed locates at Kunshan, China, but with a view to the world market. It has established a thorough network of sales and service in more than 100 countries and regions. Owning outstanding teams in the position of R&D, production line and after-sales section, sticking to its enterprise core value of "passion, sincerity and innovation", enables its products' quality to be listed in the forefront of the information age and High-tech innovation.
No matter in yesterday, today or tomorrow, Dynmed will always stay with you and peoples from afar to help all mankind enjoying a healthier life.
Dynmed, Your Loyal Partner, Forever.
