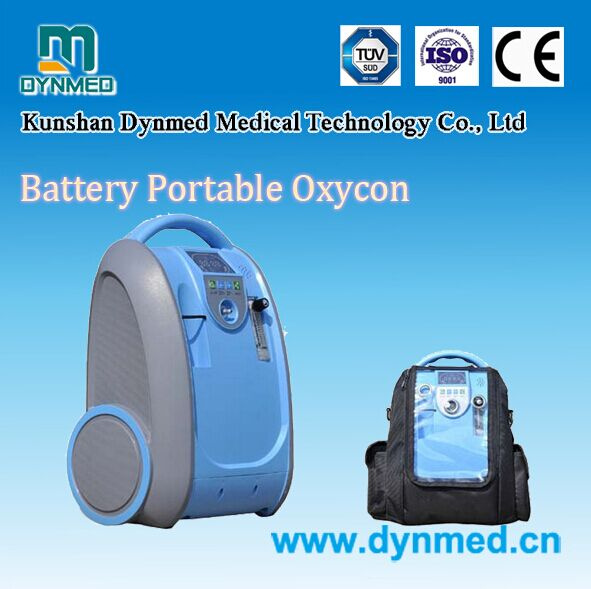

Battery Oxygen Generator
Portable Oxygen Generator 1L 2L 3L 4L 5L
Descriptions
It is a deluxe Portable Oxygen Concentrator (POC), very light weight and well design for outdoor users. It comes with a lithium battery, rechareable of course, that can allow users to use it when travelling.
Besides, the power source can be connected to vehicles' 12V power through the provided individual car inverter. Furthermore, there is a USB plug on the car inverter, whenever your mobile phone can be refilled the power by connecting to this USB plug.
The POC can be both used for healthcare and medical .
Its oxygen purity is 40+/-3% to 90+/-3% adjustable ,
The outflow can be adjustable 0-5L/MIN.
Ajustable flow meter
Concentration rates settings:
1LPM@ 90%+/-3%
2LPM@ 70%+/-3%
3LPM@ 60%+/-3%
4LPM@ 50%+/-3%
5LPM@ 40%+/-3%
Specifications |
Oxygen purity | 40%-90% adjustable |
Related oxygen purity | 5L/M 40%+/-3%,3L/M 60%+/-3%,1L 90%+/-3% |
Continuous flow settings | 0-5L/M adjustable |
Sound level | ≤ 43 dB at any setting |
Size | 260 mm x195mm x 387mm |
Weight | 12 lbs (5.4 kg) |
Operating temperature | 41° to 104°F (5° to 40°C) |
Storage temperature | -4° to 140°F (-20° to 60°C) unit only |
Altitude | Up to 12,000 ft. (3657 m) |
Filtration | Internal medica bacteria filter |
DC power | Input 11. to 16.8 VDC 20 A max Output 14.8 V DC 8 A max |
AC power | Input 100 to 240 VAC, 50/60 Hz, 1.8 A max Output 14.8 V DC 8 A max |
Power consumption | 110W while charging, 90W while not charging |
Alarm types | No power , No flow, Low battery, Depleted battery, Wrong battery, System technical fault |
Lithium Ion battery | 14.8 VDC, 7600 mAh (LiIon), 1.5 lbs (0.7 kg), charge time is approximately 4 to 5 hours per battery from fully discharge |
battery duration | 59-61 minutes at 0-5L/M any continously flow setting |
Accessories |
portable oxygen concentrator |
Lithium Ion battery 1piece |
Battery charger 1piece |
Car Inverter 1piece |
AC power supply cable 1piece |
Headstyle oxygen pipe 1piece |
Earphone oxygen pipe 1piece |
Bacteria Filter 1piece |
User manual 1piece |
Humidifier Pipe 1piece |
Humidifier connecting tube 1piece |
