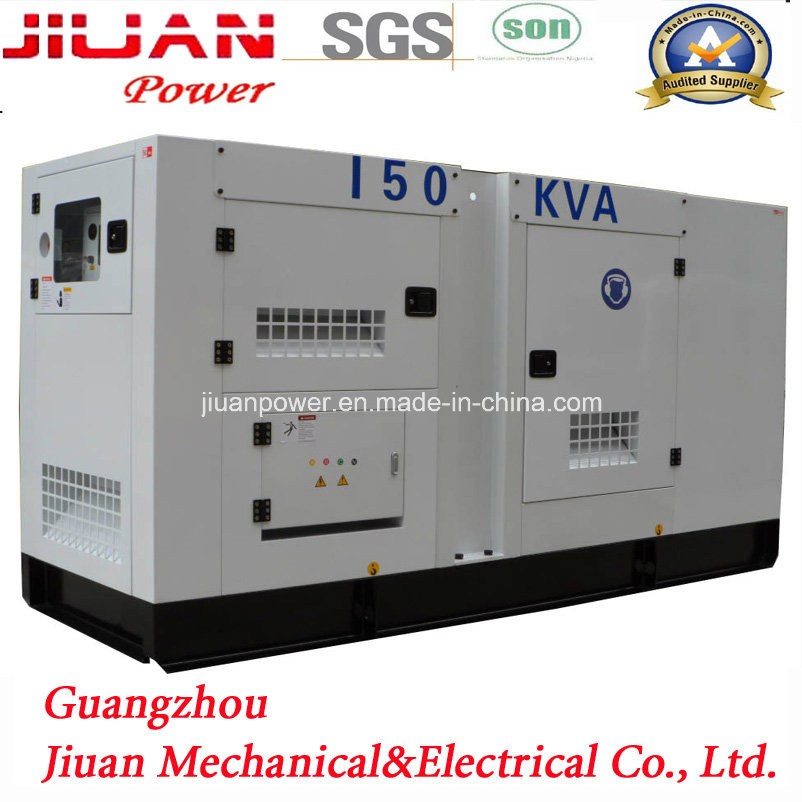

Cdc150kVA Tubo Diesel Power Signal Generator (CDC 150kVA)

Professional generator/OEM factory in Guangzhou
Stock available
SGS SONCAP
10kVA, 60kVA, 100kVA. 150kVA, 200kVA, 250kVA, 300kVA. 600kVA are available

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: JIUAN
Model Number: CDC150kVA
Output Type: AC Three Phase
Speed: 1500/1800rpm
Frequency: 50/60Hz
Rated Power: 150kVA
Rated Voltage: 230V
Rated Current: 91A @ 380V
Diesel Generator: Cummins Generator 150kVA
Cummins Generator 150kVA
Diesel Generator factory in Guangzhou
150kVA Generator Noise: SUPER SILENT 65 dB(A) at 7 meters
150kVA Generator Engine: 6CTA8.3-G2
150kVA Generator Engine Displacement: 3.9 L
150kVA Generator Alternator: Brushless with AVR
150kVA Generator fuel tank: 50 L
150kVA Generator fuel consumption: 13 L/H at full loading
150kVA Generator controller: Smartgen 6110/6120
Packaging & Delivery
Packaging Details: Standard Export Packing (Ironframe or pollywood)
Delivery Detail: 10days
Specifications

Cummins Generator Diesel
1. Power 20-1200kVA
2. Auto or manual start
3. Silent, super silent or open frame type
4. OEM factory



Cummins Generator 150kVA
CUMMINS OEM Factory in City GUANGZHOU
CUMMINS Generator (Cummins diesel generator) power range 20-1200kVA

JIUAN Generator production range as follows:

Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.

Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel

China Brand Generator               Model	CDC150kva
Generator Set Power	150KVA
Generator Powered by cummins   Engine
Diesel Engine Model	6CTA8.3-G2
Engine Characters	Water-cooled, in line, 4-cYDle, direct injection, 1500rpm
Bore x Stroke  (mm)	102*120
Rated Output	11kw/13.75kva
Fuel Consumption  (g/kw.hr)	262
Lube Consumption  (g/kw.hr)	2.72
Compression Ratio	18
Starting	Electric (12V)
ALTERNATOR MODEL	Stamford copy   UCI274C
Rated Power	150KVA
Voltage (V)	220/380 240
Current (A)	1 4
FreYuency (Hz)	50
Power Factor (cos )	0.8
Brush/Brushless	Brush less
Dimensions (LxWxH)  mm	S: 2600*1100*1700 3300*1100*1800(super silent)
Net  Weight (KGS)	1400
20FT	12 PCS

Diesel Generator Set 150KVA
Generator Specifications	Generator Model	CDC150KVA
	Generator Prime Power	150KVA
	Generator Standby Power	160KVA
	Generator Engine Model	DCEC Brand New Cummins
	Generator Alternator	Stamford;Marathon;Leroy Somer;Faraday;Stamford copy
	Canopy for Choice	Super silent;Silent;Open frame;Trailer
	Controller	Smartgen or Deepsea
	Dimensions (L*W*H)	2600*1100*1700mm(S) 3300*1100*1800(SUPER SILENT)
	20FT/40HQFT Container	2PCS/4PCS
Generator Warranty	1800 hours or 1 year subject to the ealier one.
Generator MOQ	1PCS
Certificate	SGS;Cummins Authorized Factory;TUV;Soncap
Payment	T/T or Cash
Please give detail needs in your inquiry, so that we can make power solutions for you.
