Biomass Gasification Power Plant 100kVA - 1200kVA Biomass Gas Generator Set

Packaging & Delivery

Packaging Details:	Plywood cases with plastic film for our biomass gasification power plant 120-200KW 1*20GP 300-600KW 1*40GP
Delivery Detail:	within 30 days

Chaiwei power biomass gasification power plant 100kva - 200kva biomass gas generator prices


Biomass gas engine generator general description:
This type of generator is choose gas as power. Gas will be burned directly inside of engine's cylinders, then give machinery force to alternator to produce electricity power. There are mainly 3 parts on one generator set: gas engine,alternator and radiator. The generated power can be connect to national grid, or for daily use and industrial use.

Biomass gas engine generator simple description:
Manufacturer supply
Capacity: 1.0-1.7kg raw material generate 1kw/h power
Max power supply range:10-600kw
Continuous power supply range: 8-480kw
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate

Electric power biomass generator specification:

Model Number (Engine Type)	CW20GFJ-CW600GFJ
Brand Name	CHARGEWE
Prime Power/Standby Power	8-480kw/10-600 KW
Gas mixing type	outside
Rated Speed	1200RPM/1500RPM /1800RPM
Rated Frequency	50/60Hz
Rated Voltage	220/380V,230/400V,110/220V,240/416V, 254/440, 277/480V
Phase	AC 3-Phase, 4 wire
Voltage Stability	≤±2%
Voltage transient	≤±10%
Voltage Stable time	≤1
Heat consumption	≤9.8mj/kw.h
Lubricant consumption	≤1.0g/kw.h
Engine Capacity	1.81-71.45 L
Cylinder Number	2-12 pcs
Cylinder Bore	100-190mm
Stroke	115-210mm
Heat consumption	≤9.8mj/kw.h
Oil consumption	≤1.63g/kw.h
Starting System	DC 24V eclectic motor
Cooling method	water cooler
Lubricant method	Pressure and splash
Isolation class	H
Protection	IP23
Alternator	ENGGA
Power Factor	0.8 lagging
Exciting method	brushless

(Single set power supply range: 10 - 600 kw, ≥2 sets parallel together to form large power, Eg. 500kw*3 sets = 1500KW)

Biomass generator working principle:
1. Condition: Change biomass into biomass gas by biomass gasifier
2. Gas mix with air outside of engine's cylinders
3.Mixed gas into cylinder and explode inside of cylinders to change gas energy into power force
4.Power force drive alternator to generator electric power
5.Water circules form water tank to engine to bring the engine heat
6. Optional device of CHP, silent canopy and mobilable trailer.
7. Control panel system control all operation


Machine supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow  supercharger, compression ration is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.

Full automatic system for optional: ATS for automatic switch form national grid power to generated power, double direction.

Low voltage cables between generator set and control room: available if needed.


Features of our biomass generator:

1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality, Eg. Siemens,Standard, Stanford.
3.Expansion fitting combined with shrinking fitting give high tightness to the system.
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.

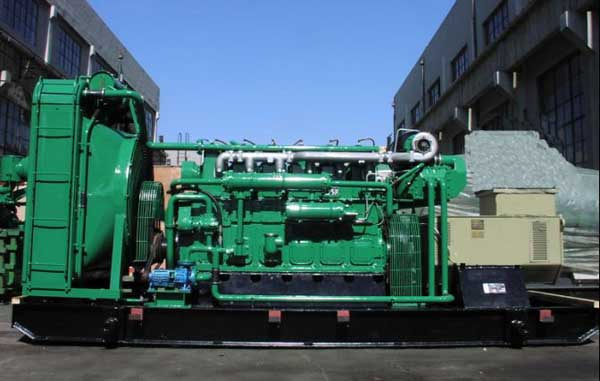

Biomass generator system photo:

FAQ:
1.How to choose the right model?
   A: It depends on continuous output power, Voltage, Frequency and fuel type.  Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on).
The right model of generator will be recommend soon. Me and our engineers are always available at your service.

2.What is the oil consumption and capacity per hour?
  A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h

3.What is the overhaul?
   A: About 30000 working hours. A week is enough to finish.  We offer manual for weekly, monthly and overhaul maintenance.

4. What is the warranty?
    A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare      parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.
5. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
What's more, drawings for gensets and foundation will be offered in final stage.

6. What products we offer?
Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.
Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.

7.Info about our company?
With more than 10 years experience in producing gas and diesel generators. Products passed CE ISO certificate. One of the very few manufacturers for big power generator and Well accepted home and abroad.

Welcome to have a visit.
