Home Generator Products Cow Manure Digester 100kw Engine Power Biogas Generator

Cow Manure Digester 100kw Engine Power Biogas Generator

Cow Manure Digester 100kw Engine Power Biogas Generator
Price: US $ 20500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union

Cow manure digester 200kw engine power biogas generator



Key Specifications/Special Features:

1. Fuel gas requirement:
1m distance away from genset's pressure regulating valve of inlet
1) Temperature of bio gas ≤40ºC
2) Pressure of natural gas 3~20kPa, velocity of pressure≤ 1kPa/min
3) H2S≤200mg/Nm3
4) NH3≤20mg/Nm3
5) The ratio of CH4 in biogas not less than 45%, changing rate≤2%/min
6) Impurities particle size≤5μm; impurity content≤30mg/Nm3
7) Moisture content of biomass ≤40g/Nm3

2. Biogas generator advantage:
Ignition system:
American ALTRONIC, including: magneto and high-tension coil.
Controller: Comap, Deepsea, Smartgen
Starting system: DC24V electric motor.
Mixer: IMPCO
Sparking plug: STITT

3. Biogas engine generator simple description:
Manufacturer supply
Capacity: 2.0-2.5kw/h per Cubic meter gas
Power supply range:10KW-6000kw
More than 1 set can be paralled
Standard component and assembly
.Multi-option of control panel
With CE and ISO certificate

4.FAQ
How to choose the right model?

1) Before your inquiry, please tell us the demand continuous power it is(kw)?
2) local voltage(V)and frequency (HZ)?
3) Fuel is it? like: diesel, natural gas, biogas, biomass gas, coal gas, syngas and more
4) If the fuel is biogas, please tell does the biogas already?If yes best provide gas analysis report

Genset warranty?
The warranty is one year or 1000 hours.

How to do the maintenance?
Operator training will be provided by our technician. After training, local operator can do the basic maintenance by themselves according to our maintenance manual.

What is the overhaul?
 About 30000 working hours. A week is enough to finish.

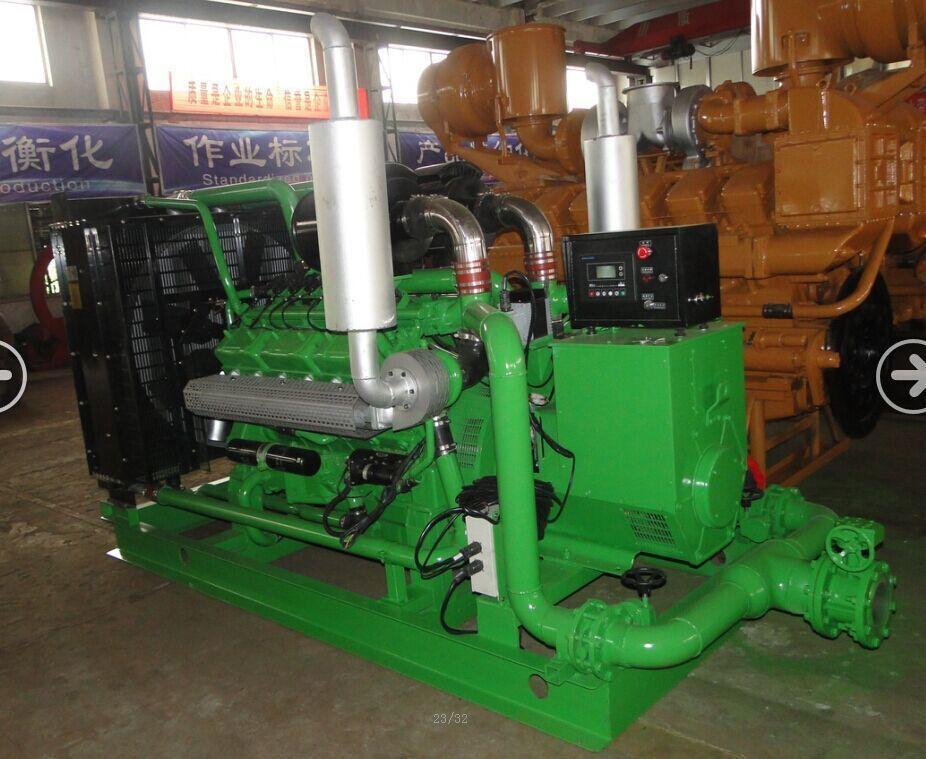

Description of 100kw biogas generator set

1. Engine and Alternator

2. Water cooled radiator

3. Alternator: single bearing alternator, IP22 grading protection, H insulation degree

4. Exhaust pipe, muffler set

5. Lubrication system

6. Dry air filter, fuel filter, oil filter

7. Sales commitment



Optional generator sets


Open type, Silent type, Container type, Trailer type

For open type, the genset will be much easier to maintainance and repair, with more durable performance and longer service life, so the cost performance is higher.
For silent type, generator set, the noise level can be 70-75dB(A)@7M; with silent canopy, the genset can be soundproof, rainproof, rustproof, dustproof and more safe.


Company Information
We are professional and dedicated system supplier of energy production by diesel and gas powered generator set for almost 20 years, we are basically a manufacturer of generator set for various kinds of fuel such as diesel, natural gas, biogas, biomass gas, coal gas, coal bed methane (CBM), associated gas and syngas. Welcome to the showroom of Shandong CHARGEWE Power Equipment Co., Ltd.!


Contact:
Shandong Chaiwei Power Equipment Co.,LTD.

Phone: +8618560016265


Website:www.cn-generator.com

Sincerely welcome to visit our factory and build future cooperation relationship!
Prod Model: CW-100GFZ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Cw-100gfz
Speed: 1000rpm or 1500rpm
Frequency: 50Hz or 60Hz
Standby Rated Power: 100kw
Continue Rated Power: 80kw
Rated Voltage: 400V/230V
Rated Current: 180A
Certificate: CE and ISO
Wordwide Service: Full Support From Worldwide Service Network
Service: Accept OEM & ODM Production
Shandong Chaiwei power Co., Ltd, which is a leading manufacture of diesel generator and gas generator in China, our generator from 20kw to 1000kw with CE ISO SONCAP certificate & OEM available, which have exported to Middle East, South America, Russia, Africa, and got a high reputation on the overseas market.

About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. We have completed quality inspection system to make sure each product that customer get is perfect; We have professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.

Any comments or questions, feel free to tell me. You will surely find our sincerity and value in both our products and service.
