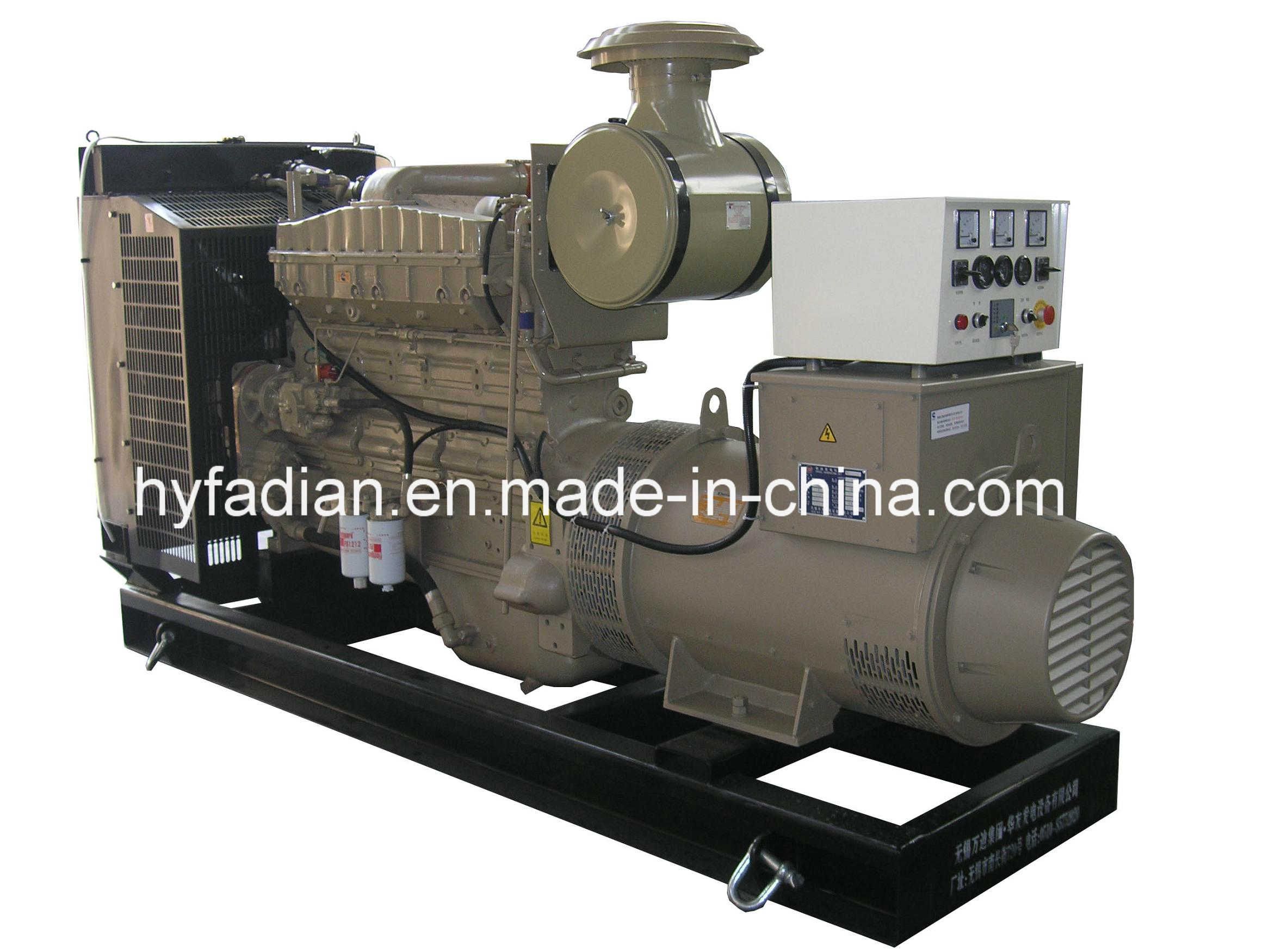

CUMMINS Diesel Generating Set
Cummins is one of world top famous engines and widely acceptable all over the world. Cummins Inc., a global power leader, a corporation of complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions and electrical power generating systems. Headquartered in Columbus, Indiana, (USA) Cummins serves customers in approximately 190 countries and territories through a network of more than 600 company-owned and independent distributor locations and approximately 5,200 dealer locations, where you can get free-minded warranty and after sales for Cummins Methane Biogas Power Generator.
Huayou Power Cummins gas engines are transferred/modified from Cummins diesel engines of 4B, 6B, 6C, 6L, NT855, K19, K38 and K50 Series. By assimilating gas engine concerning technologies of Mixer, Ignitions System, Governor/acutuator System from WOODWARD, MOTORTECH, HEINZMANN, ALTRONIC, IMPCO, STITT, Ettes Power Cummins Methane Biogas Power Generator can work at reliable performance, easy for maintenance, much longer life-span and very economic in price based on wonderful quality.
Applicable fuel for Cummins Methane Biogas Power Generator has a wide range of methane based gases (natural gas, biogas, marsh gas, coal mine methane gas, shale gas and biomass etc.).
Prime Power 125kVA
50Hz/1500rpm/400V
Prime power: Continuous running at variable load for unlimited periods with 10% Overload available for 1 hour in any 12 hour period. In accordance with GB/T2820-2009.
Standby power: Continuous running at variable load for duration of an emergency.
No overload is permitted on these ratings.
Company Profile
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders,12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., LTD, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300,000 KW, it is one of the most important Chinese diesel generator sets suppliers. The products of our company mainly adopt diesel engines originally imported from Sweden such as VOLVO; joint venture engines that are American or British such as CUMMIN; domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford,Engga,Faraday alternators.
We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer's require. They are widely applied in marine field,key projects,communication hubs,high-rise buildings and infrastructure construction projects. For many years, we have provided large quantities of diesel generator sets to military equipments; also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia,North America,Europe and many African countries such as Vietnam,Thailand,Singapore ,Sudan,Egypt,Turkey,America,etc. Because of the Hi-technic, reliable quality nice contour,efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' demands at different levels.
1), Heavy duty of Engine
a,Engine-Industrial 4strokes cooled diesel engine complete with air, fuel and oil filters,
b,electric starting and charging equipment, engine protection against oil low water level.
c, Cooling-Radiator and cooling fan complete with protection guards, designed to cool engine at specified output in air temperature up to 45°C,radiator suitable for higher temperature are available. Low water level protection fitted as standard.
d, Exhaust system-Heavy duty industrial exhaust silencer with flexible piping. Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.
Diesel Engine specification,
Engine model
Cummins, Deutz, Weichai, Lovol, Ricardo, etc
Typewater cooling, 4 strokes, direct injection
Air Intake typenaturally or turbocharged
Cylinder number3, 4,6
Piston speed6m/s
Mechanical governor rate≤5%
Electronical Governor rate≤1%
Noise Level≤96dBA
Features (alternator):
1)Alternators: Leroy-Somer,Stamford,Marathon,WT brushless (brand of ours)
2) Phase: 3-phase, 4-wire
3) Connection: Y type connection
4) Excitation: harmonic Excitation or phase compound or brushless
5) Voltage regulation: automatic
6) Protection: IP22
Reliable quality of alternator
a, Alternator-brushless, self exciting, self regulation, screen protected, drip proof rated in accordance with IEC60034.
b,Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity.
c, Available in the following voltages, 220V to 240V, and 380V-415V-440V-50HZ.
2) Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm
system and arrestor for any situation as the start defeat, the water
is over temperature, the oil pulls down, over speed, over load and
over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: combined cooling water tank fitted to meet the
requirement of radiation at ambient temperature 40°C
22) Filter system: oil, fuel and air filter
23) Accessories: exhaust elbow, bellow, muffler
3) Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer
Supply Scope
Complete Cummins Methane Biogas Power Generator including gas engine, alternator, base frame, Control System, heat exchanger or radiator (optional), steel canopy (optional), Parallel Control (optional), synchronization panel with states grid (optional), CHP System (optional), ignition system, governor system, mixer, spark plug, User books, testing report and other accessories etc.
Pakage
Plastic foam or carton box
Our Service
Huayou Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 2000 running hours, subject to the earlier one. And what's more, Cummins Methane Biogas Power Generator enjoy world-wide united Warranty from Cummins engine agency or service centre at the client's local side. Furthermore, Ettes Power will provid life-span technical support and spare parts at manufacture prices.
Generator set Data | | Engine |
| Brand WANDI | Brand VOLVO PETNA |
| Model | | WDV100 | Model | | TAD532GE |
| Prime power | KVA/KW | 125/100 | Rated power(net) | KVA/KW | 142/113 |
| Standby power | KVA/KW | 138/110 | No. of cylinder | | 4 |
| Frequency | Hz | 50 | Cycle type | | 4-cycle |
| Rated voltage | V | 400/230 | Cylinder arrangement | | Vertical in line |
| Rated current | A | 181 | Aspiration type | | Turbocharged |
| Power factor | COS Φ | 0.8(lag) | Combustion system | | water cooled |
| Fuel tank capacity | L | 320 | Speed mode | | EDC4 |
| Sound pressure level LP | dB(A)1m | 85 | Bore | mm | 108 |
| Alternator | Stroke | mm | 130 |
| Brand | FARADAY | Compression ratio | | 18.0:1 |
| Model | FD3C | Displacement | L | 4.76 |
| Connecting type | 3 phase and 4 wires | Engine oil capacity | L | 13 |
| Excitation type | brushless, self excited | Total coolant capacity | L | 20.2 |
| Steady voltage regulation | ≤ 1% | Exhaust smoke | | 1bosch |
| Transient voltage regulation | ≤ ±25% | Lubrication consumption | L/H | 0.08 |
| Frequency recovery time | ≤ 3s | Fuel consumption | g/kw@h | 214 |
| Protection | IP23 | Cooling max water temperature | ºC | 104 |
| Insulation | Class H | Governor type | | Electronic |
| Overload capacity | ≤ 10% | Start mode | | Electronic |
| | | Emission standards | | Europe stageII |
| Dimension/weight | |
| Open type | Soundproof canopy type |
| Dimension (L*W*H) | mm | 2109*866*1438 | Dimension (L*W*H) | mm | 2700*1240*1760 |
| Net weight | kg | 1170 | Net weight | kg | 1920 |
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
